STEERING – Power Steering Gear Box
37A-15

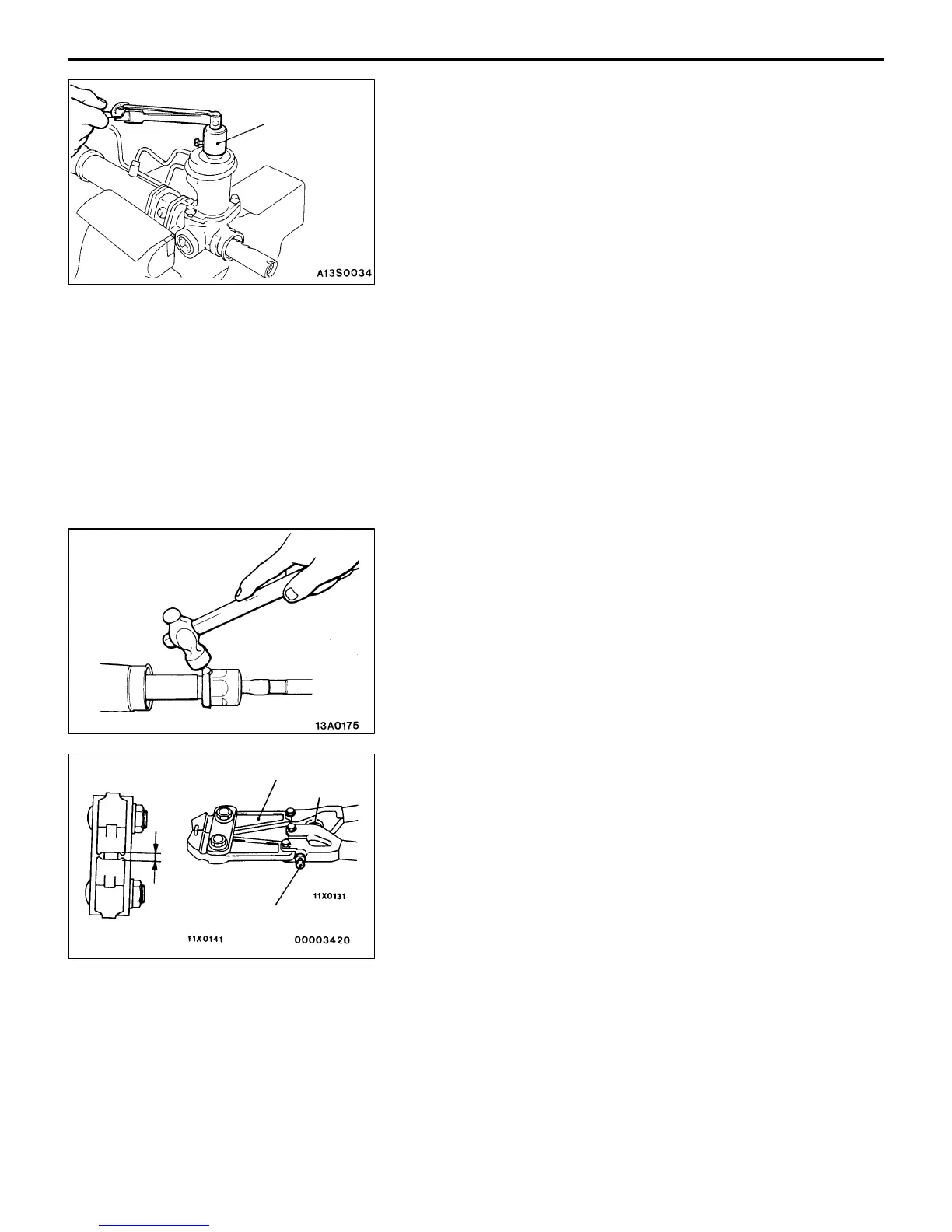

3. Using the special tools, rotate the pinion gear at the rate
of one rotation in approximately 4 to 6 seconds to check
the total pinion torque.
Standard value: 0.9 – 1.7 Nm
[Change in torque: 0.4 Nm]
Caution
(1) When adjusting, set the standard value at its
highest value.
(2) Assure no ratcheting or catching when operating
the rack towards the shaft direction.
NOTE
When it cannot be adjusted within the specified return
angle, check or replace the rack support cover
components.
4. After adjusting, lock the rack support cover with lock nut.
"LA TAB WASHER / TIE-ROD INSTALLATION
After installing the tie-rod to the rack, fold the tab washer
end (2 locations) to the tie-rod notch.
"MABELLOWS BAND INSTALLATION
1. Turn the adjusting bolt of the special tool to adjust the
opening dimension (W) to the standard value.
Standard value (W): 2.9 mm
<When more than 2.9 mm>
Screw in the adjusting bolt.
<When less than 2.9 mm>
Loosen the adjusting bolt.
NOTE
(1) The dimension (W) is adjusted by approx. 0.7 mm
per one turn.
(2) Do not turn the adjusting bolt more than one turn.
MB991006
MB991561
Stopper
Adjusting bolt
W
To Next Page
