EXTERIOR – Front Bumper
51-3

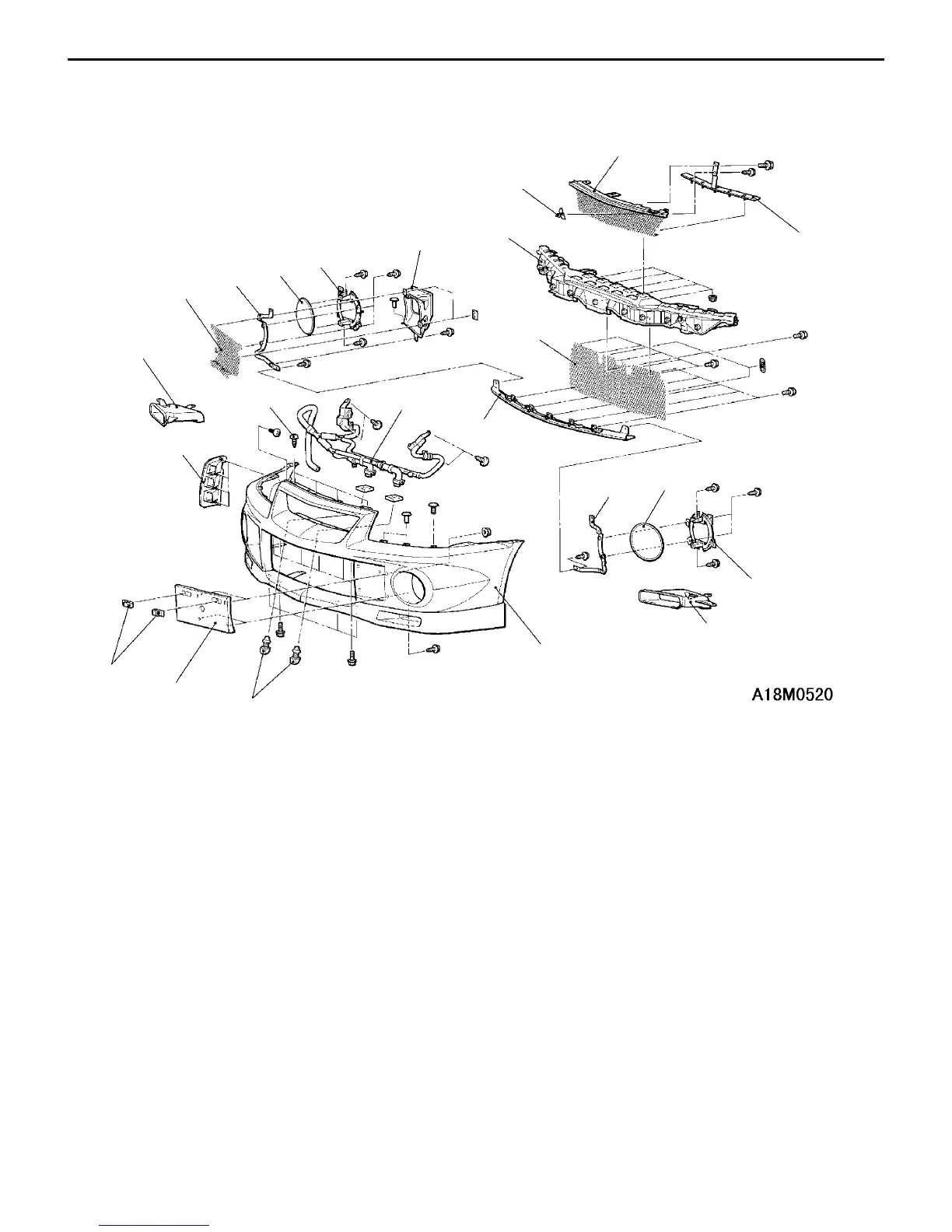

DISASSEMBLY AND REASSEMBLY
2
1
3
5
6
8
9
10
12
11
13
15
14
16
17
19
18
7
4
18
5
7
4
Disassembly steps
D Front airdam (Refer to P.51-4)
1. Licence plate bracket
2. Licence plate garnish
3. Three-diamond mark
4. Front fog lamp cover
5. Front fog lamp plate
6. Oil cooler duct
7. Bumper side stay
8. Air outlet garnish (R.H. side only)
9. Bumper side net
10. Bumper bolt plate
AA" 11. Clip
12. Bumper upper reinforcement
assembly
13. Bumper lower reinforcement
14. Bumper reinforcement
15. Bumper center net
16. Water spray hose assembly
17. Water spray nozzle
18. Air blow duct
19. Bumper face
