SRS – SRS Maintenance
52B-16
SRS COMPONENT VISUAL CHECK
Turn the ignition key to the LOCK (OFF) position, disconnect
the negative battery cable and tape the terminal.
Caution
Wait at least 60 seconds after disconnecting the battery
cable before doing any further work. (Refer to P.52B-3.)
SRS CONTROL UNIT (SRS-ECU)
1. Check SRS-ECU case and brackets for dents, cracks,
deformation or rust.
Caution
The SRS may not activate if the SRS-ECU is not
installed properly, which could result in serious injury
or death to the vehicle’s driver or front passenger.
2. Check connector for damage, and terminals for
deformation or rust.
Replace SRS-ECU if it fails visual check.
(Refer to P.52B-24.)
AIR BAG MODULES, STEERING WHEEL AND CLOCK
SPRING
1. Remove the air bag modules, steering wheel and clock
spring. (Refer to P.52B-25.)
Caution
The removed air bag modules should be stored in
a clean, dry place with the pad cover face up.
2. Check pad cover for dents, cracks or deformation.

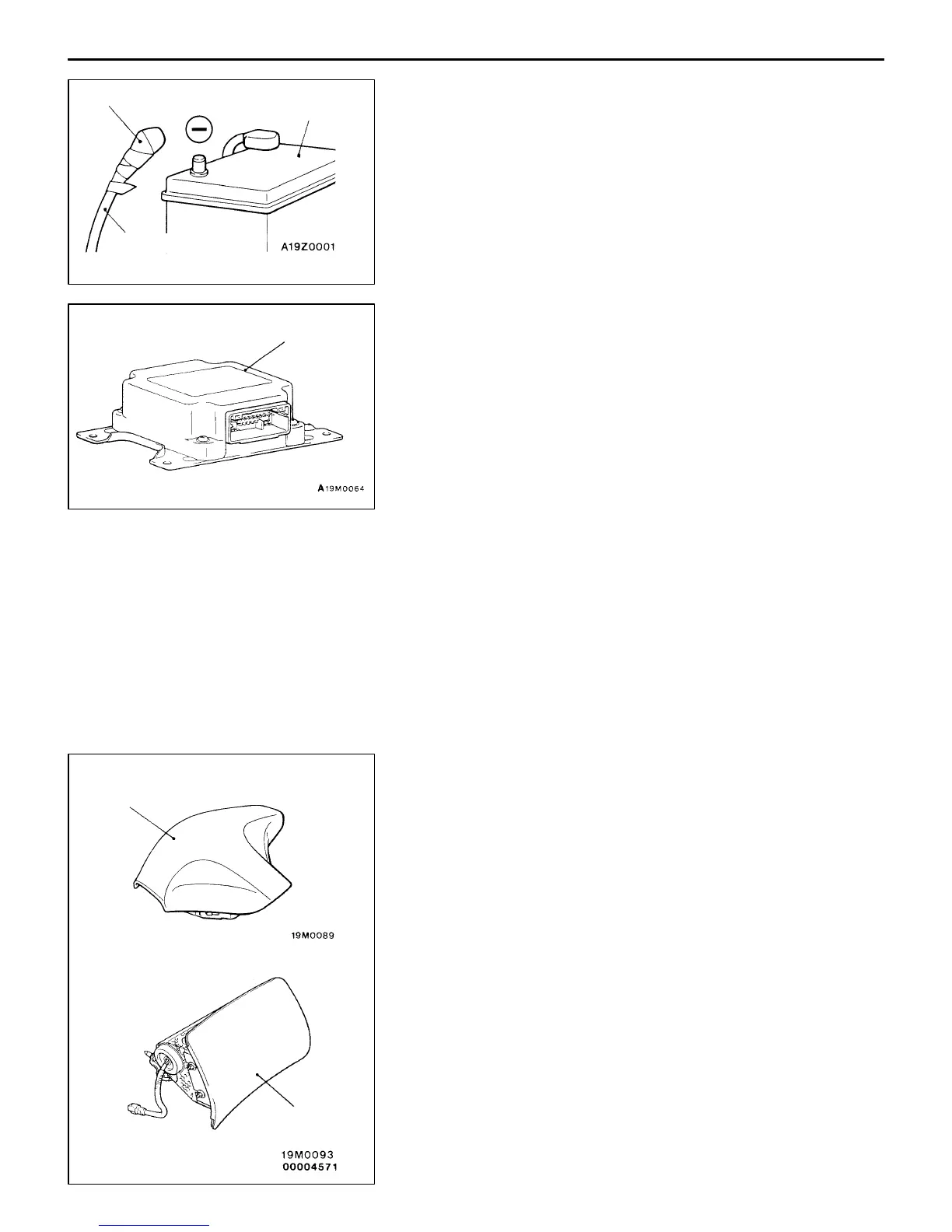

Insulating tape
Battery
Battery (–) cable
SRS-ECU
Pad cover
<Driver’s side>
<Front passenger’s side>
Pad cover
