SRS – Air Bag Modules and Clock Spring
52B-29
"BA CLOCK SPRING INSTALLATION

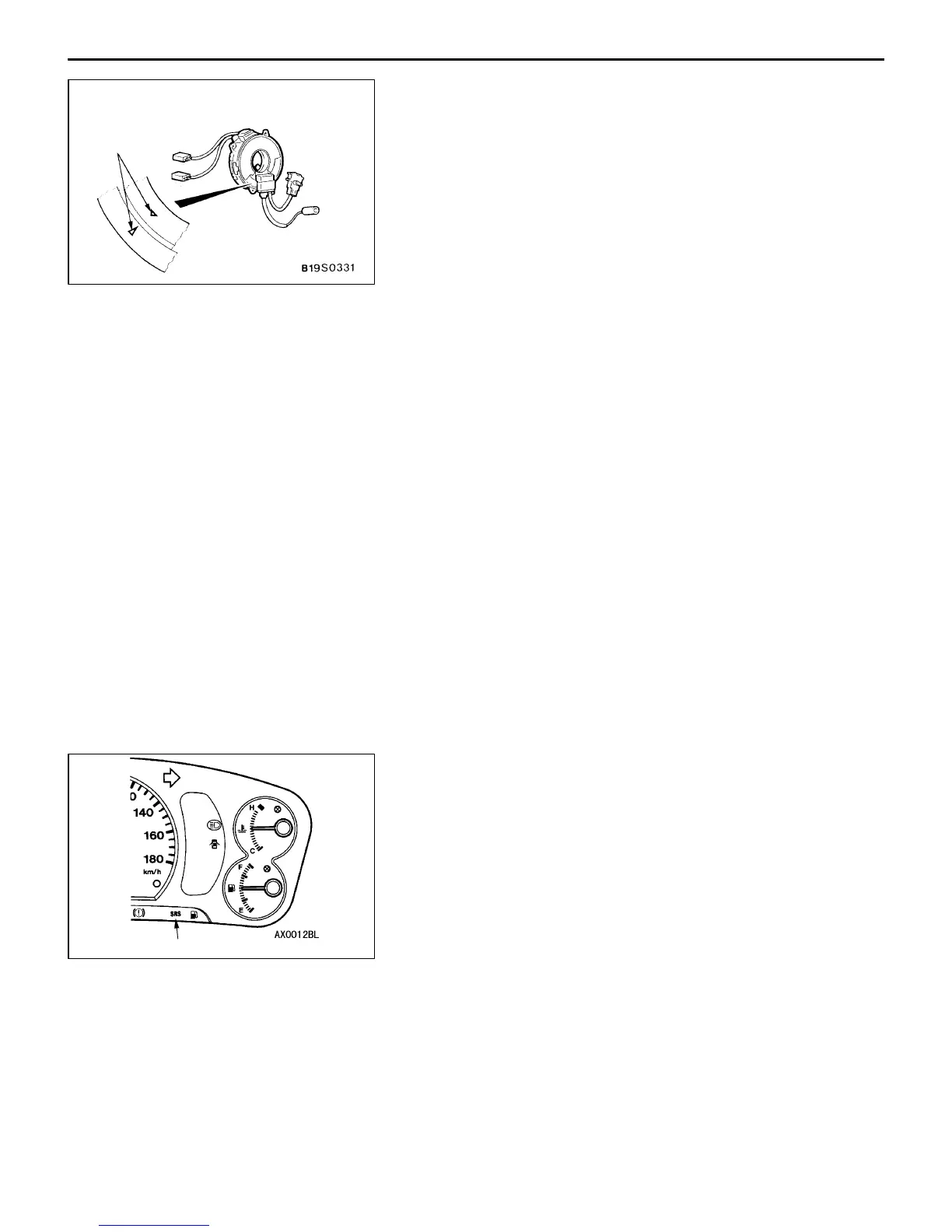

Align the mating marks of the clock spring and, after turning
the front wheels to the straight-ahead position, install the
clock spring to the column switch.
Mating Mark Alignment
Turn the clock spring clockwise fully, and then turn back it
approx. 3 4/5 turns counterclockwise to align the mating marks.
Caution
If the clock spring’s mating marks are not properly aligned,
the steering wheel may not be completely rotational during
a turn, or the flat cable within the clock spring may be
severed, obstructing normal operation of the SRS and
possibly leading to serious injury to the vehicle’s driver.
"CA STEERING WHEEL INSTALLATION
1. Before installation the steering wheel, be sure to first
turn the vehicle’s front wheels to the straight-ahead
position and align the mating marks of the clock spring.
Caution
Be sure when installing the steering wheel, that the
harness of the clock spring does not become caught
or tangled.
2. After clamping, turn the steering wheel all the way in
both directions to confirm that steering is normal.
"DA POST-INSTALLATION INSPECTION
1. Turn the steering wheel lightly to the left and right to
check if it can be operated properly without any
abnormality.
2. Reconnect the negative battery terminal.
3. Turn the ignition key to the “ON” position.
4. Does the “SRS” warning lamp illuminate for about 7
seconds, and then remain extinguished for at least 5
seconds after turning OFF?
5. If yes, SRS system is functioning properly.
If no, consult page 52B-6.
Mating marks
SRS warning lamp
