CHASSIS ELECTRICAL – Ignition Switch
54-11
IGNITION SWITCH
REMOVAL AND INSTALLATION
1
2
3
4
5
6
7
8
9
10
11
12
9

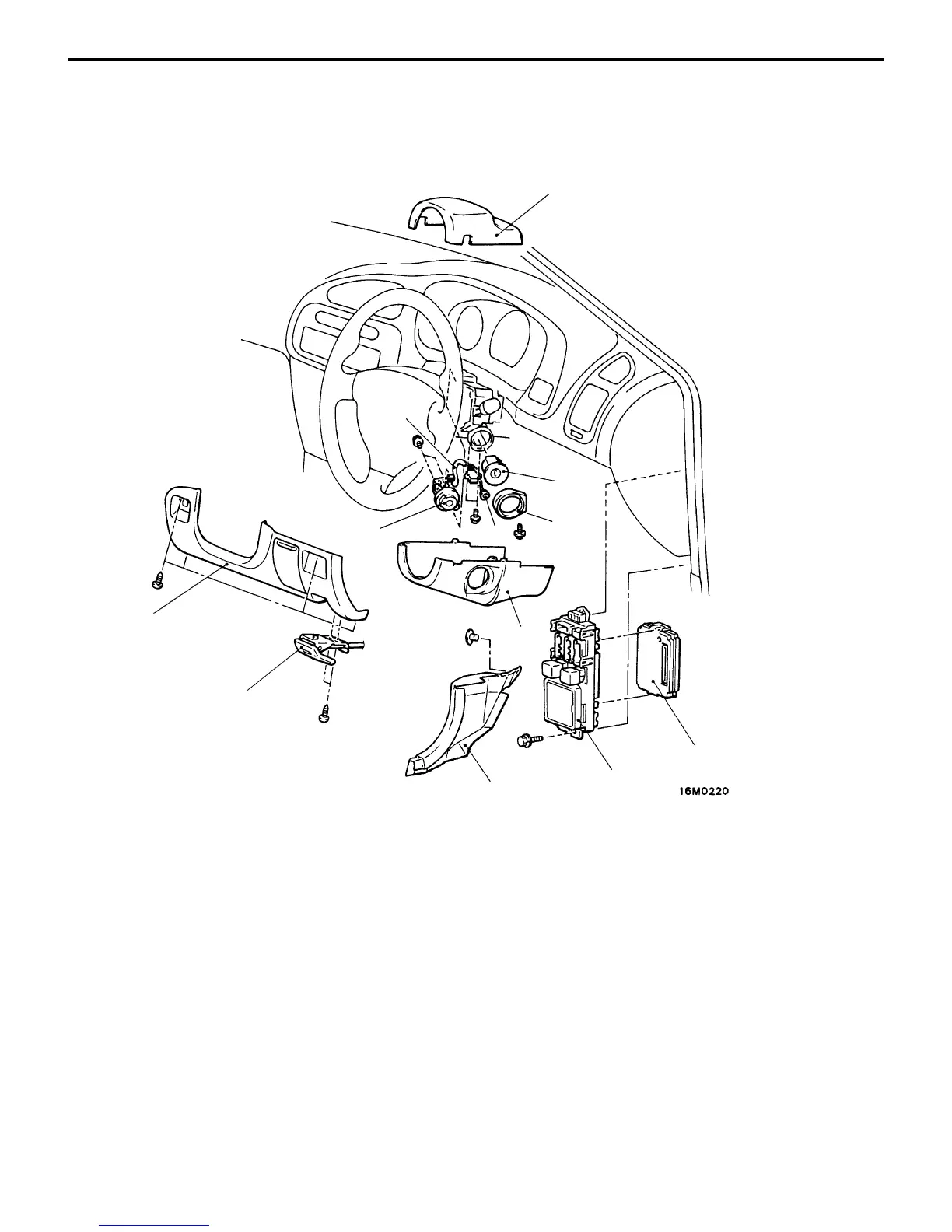

ETACS-ECU or buzzer ECU removal
steps
1. Cowl side trim (R.H.)
2. Junction block
3. Buzzer control unit ETACS-ECU
Ignition switch removal steps
4. Hood lock release handle
5. Driver side lower panel
6. Column cover, lower
7. Column cover, upper
8. Illumination ring or ring cover
9. Key hole illumination lamp bulb
AA" 10. Steering lock cylinder
11. Key reminder switch
12. Ignition switch
To Next Page
