– Blower Motor Assembly, Resistor and Evaporator
HEATER AND MANUAL
AIR CONDITIONER
55-22
AIR THERMO-SENSOR CHECK

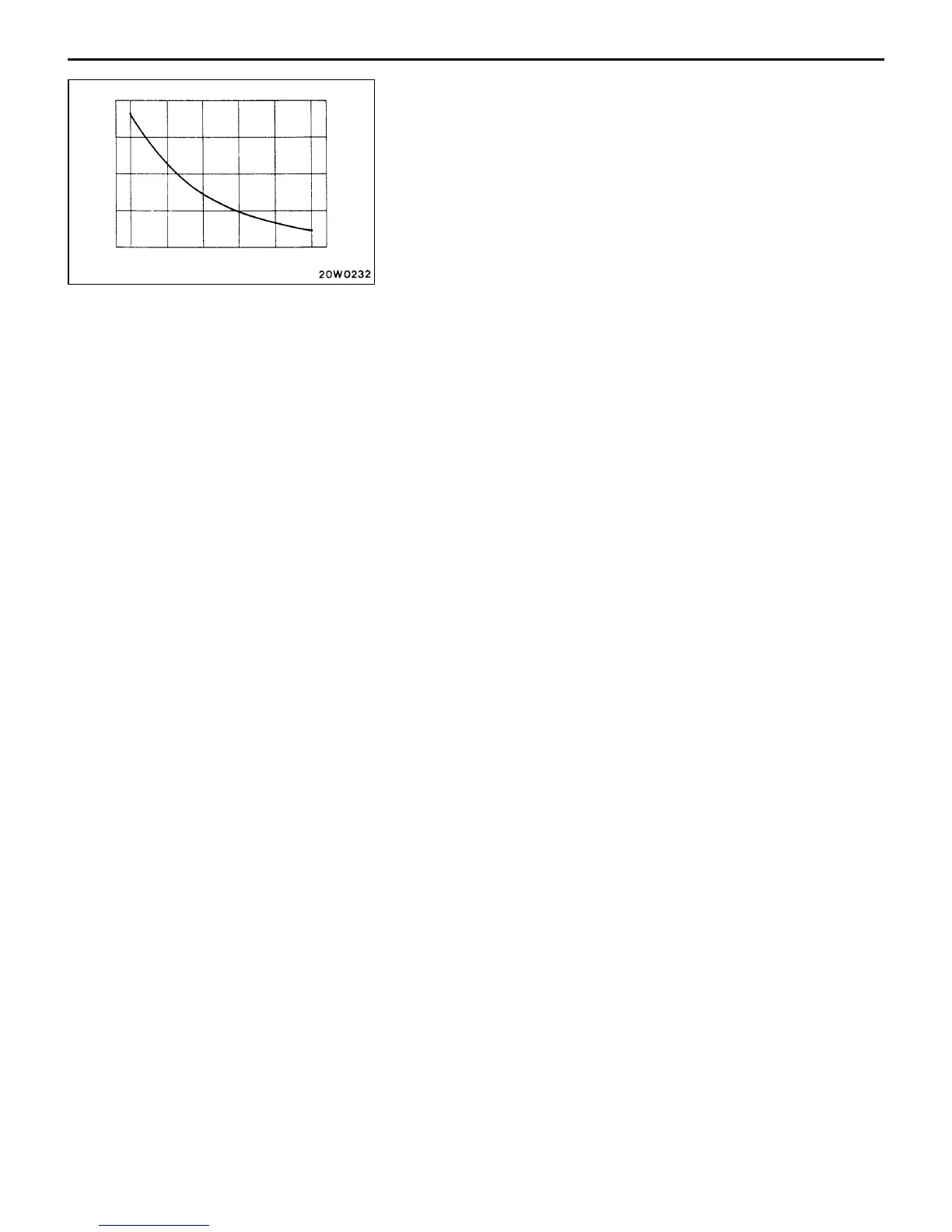

Measure the resistance between the sensor terminals in two
or more different temperature conditions. The resistance
values must conform to the values shown in the graph.
NOTE
The temperatures at checking must be within the range shown
in the characteristic curve.
kΩ
Temperature
Resistance
°C
0
–10 0 10 20 30 40
5
10
15
20
