– Compressor and Tension Pulley
HEATER AND MANUAL
AIR CONDITIONER
55-24
REMOVAL SERVICE POINTS

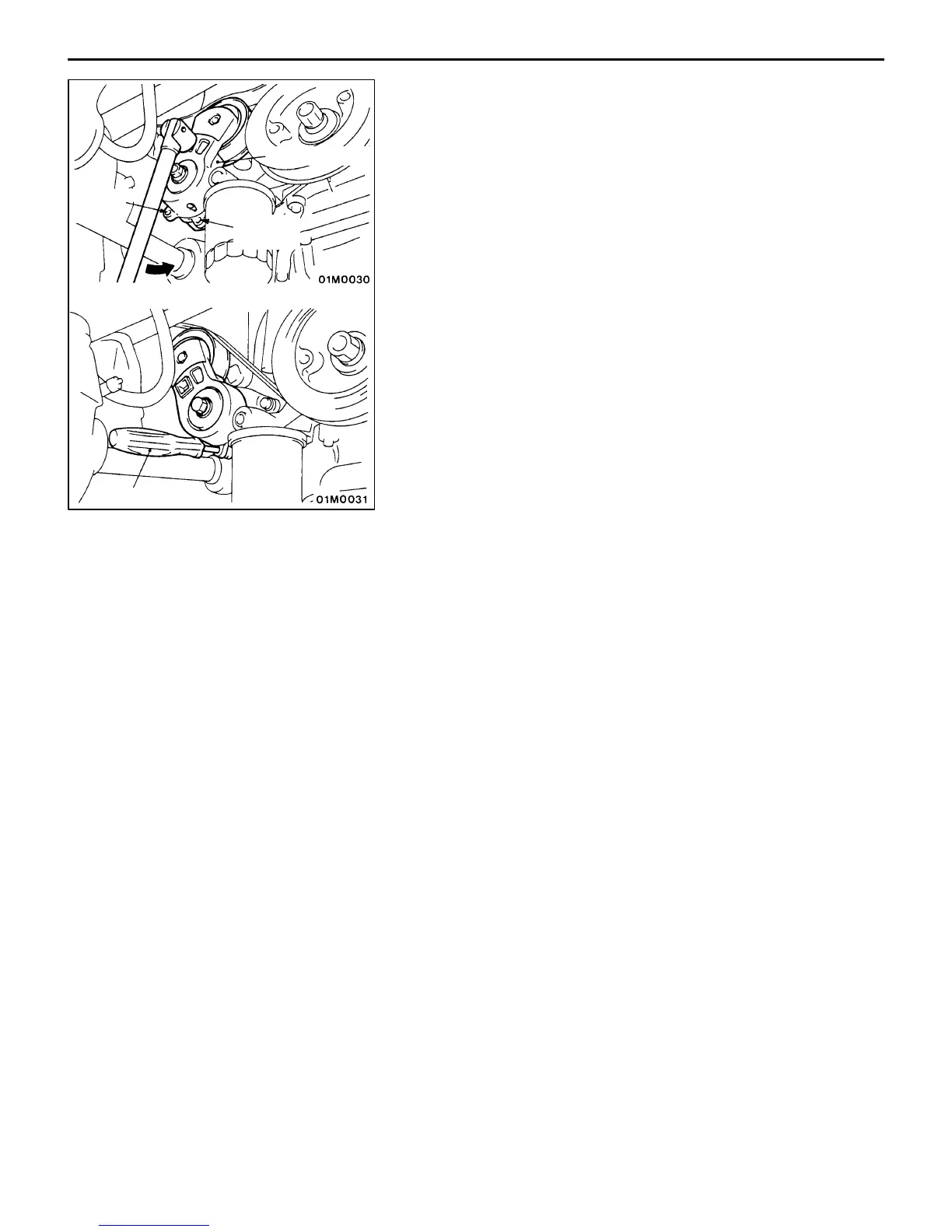

AA" DRIVE BELT REMOVAL
1. Align the hole in the auto-tensioner bracket with that in
the arm and insert a screwdriver into the holes.
2. Remove the drive belt.
AB" SUCTION HOSE, DISCHARGE HOSE
DISCONNECTION
Plug the disconnected hose and the compressor nipple not
to let foreign matter get into them.
Caution
Seal the hoses completely, otherwise the compressor
oil and receiver will absorb water vapour easily.
AC" COMPRESSOR REMOVAL
When doing this work, be careful not to spill the compressor
oil.
Auto-tensioner
Hole in
arm
Hole in
bracket
Screwdriver (+)
To Next Page
