– Compressor and Tension Pulley
HEATER AND MANUAL
AIR CONDITIONER
55-26

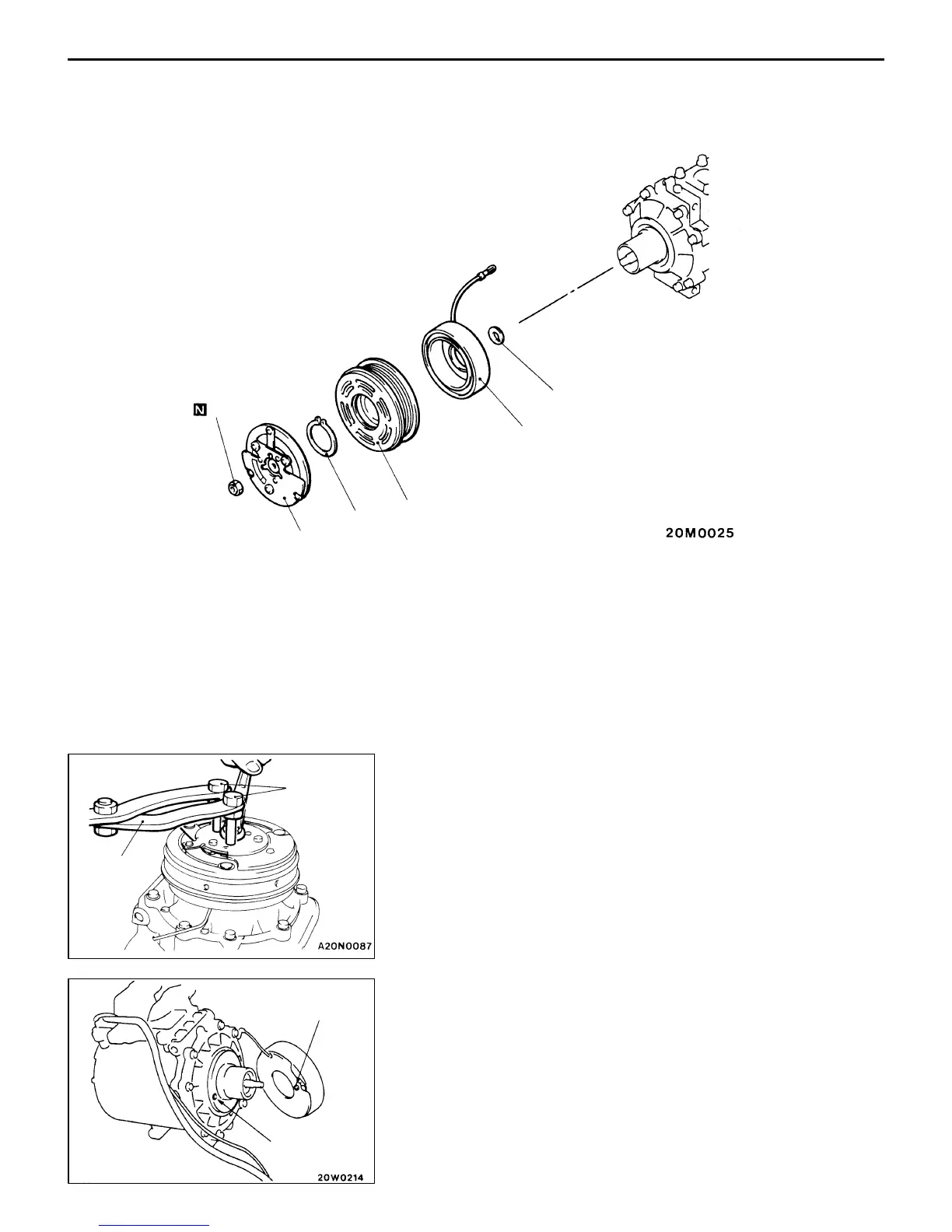

MAGNETIC CLUTCH
DISASSEMBLY AND REASSEMBLY
4
6
2
1
5
3
Disassembly steps
"EADAir gap adjustment
AA""DA 1. Self-locking nut
"CA 2. Armature
3. Shims
"BA 4. Snap ring
5. Rotor
"AA 6. Field core
DISASSEMBLY SERVICE POINT
AA" SELF-LOCKING NUT REMOVAL
REASSEMBLY SERVICE POINTS
"AA FIELD CORE INSTALLATION
When installing the field core to the compressor body, install
so that the pin hole of the compressor body and the field
core projection are aligned.
MB991386
MB991367
Field core
projection
Compressor
body pin hole
