FULL-AUTOMATIC AIR CONDITIONER –
Damper Control Motor Assembly
and Power Transistor
55-59
INSPECTION

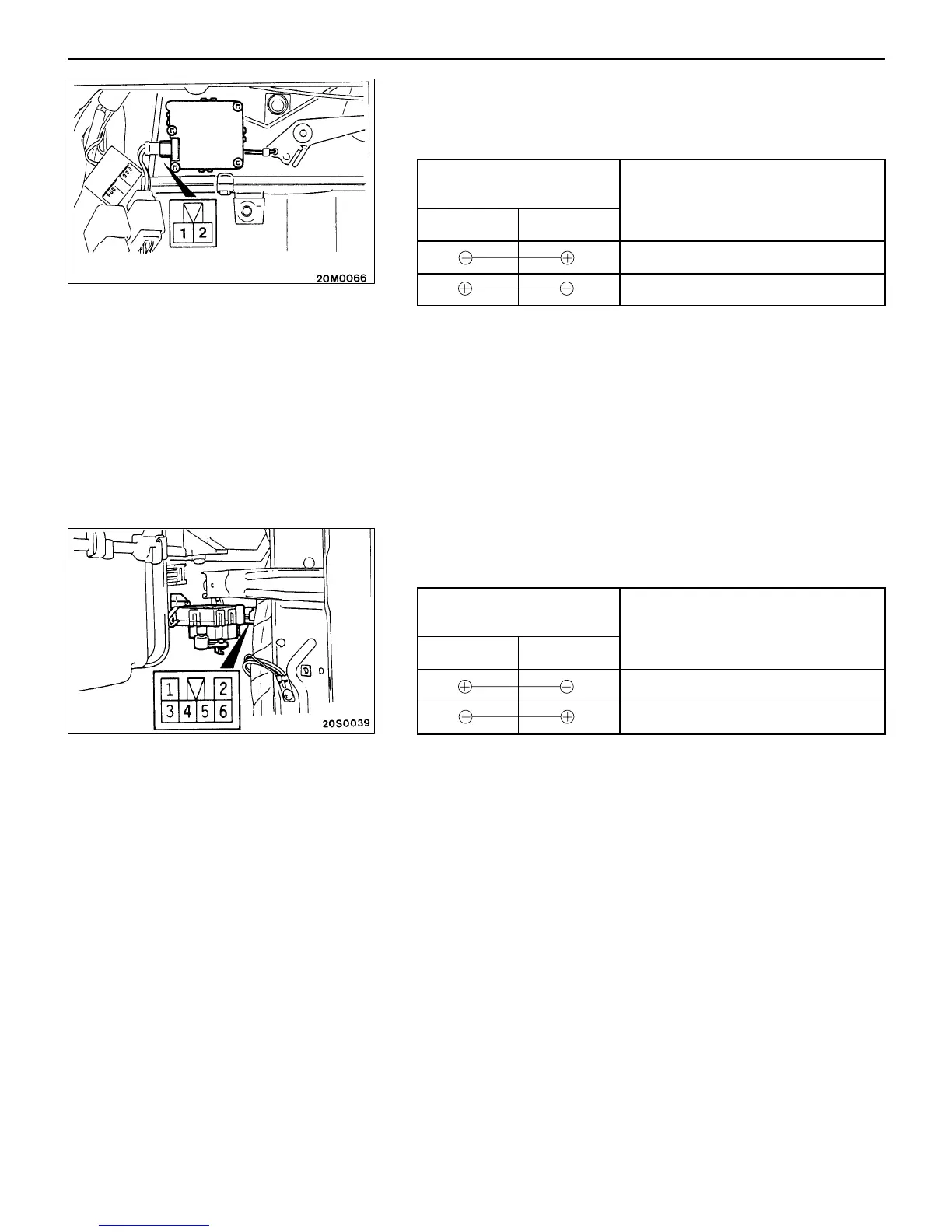

INSIDE/OUTSIDE CHANGEOVER DAMPER MOTOR
CHECK
Battery connection
terminal
Lever operation
1 2
Moves to the outside air position
Moves to the inside air position
Caution
Cut off the battery voltage when the lever is in the stop
position.
AIR MIX DAMPER MOTOR CHECK
Motor
Battery connection
terminal
Lever operation
1 3
Moves to COOL position
Moves to HOT position
Caution
Cut off the battery voltage when the lever is in the stop
position.
Potentiometer
Check to ensure that the resistance value changes gradually
within the standard value range when the resistance value
is measured between connector terminals 2 and 5 or between
5 and 6 with the above inspection condition unchanged.
Standard value: Approx. 0.18 – 4.82 kΩ
To Next Page
