ENGINE – Secondary Air System and Intake Manifold
11-30
INSTALLATION SERVICE POINTS

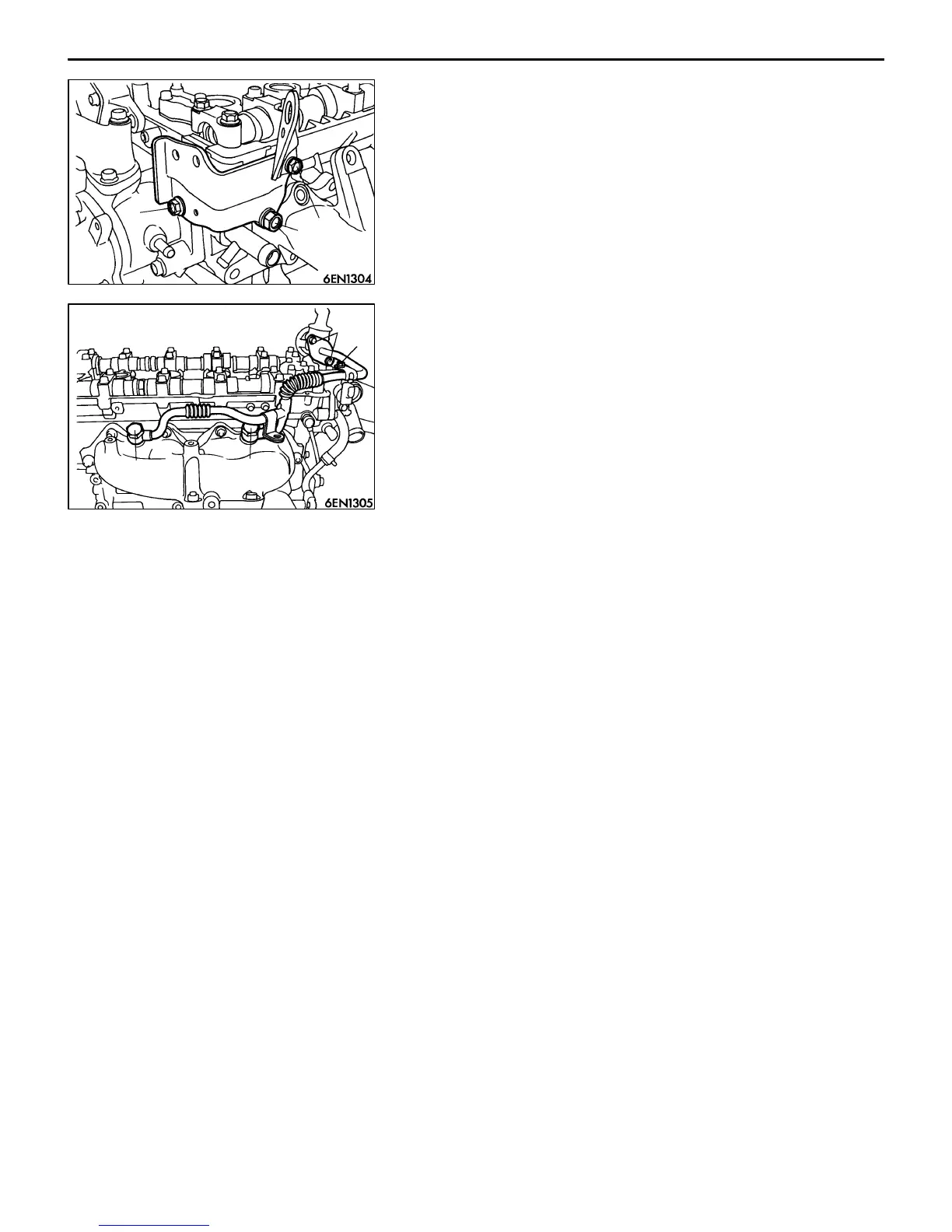

"AA AIR CONTROL VALVE BRACKET INSTALLATION
(1) Attach the air control valve bracket and the engine hanger
to the intake manifold using bolts and nuts with which
the intake manifold is also installed to the engine.
(2) Tighten the bolts and nuts to the specified torque in the
sequence given in the illustration.
"BA AIR PIPE ASSEMBLY INSTALLATION
(1) Install the air pipe assembly to the exhaust manifold and
to the air control valve and secure it provisionally by
tightening the fasteners handtight.
(2) Tighten the fasteners to the specified torque in the
sequence given in the illustration.
(3)
(2)
(1)
(3)
(2)
(1)
(4)
