AE" COUNTERBALANCE SHAFT REAR BEARING
REMOVAL

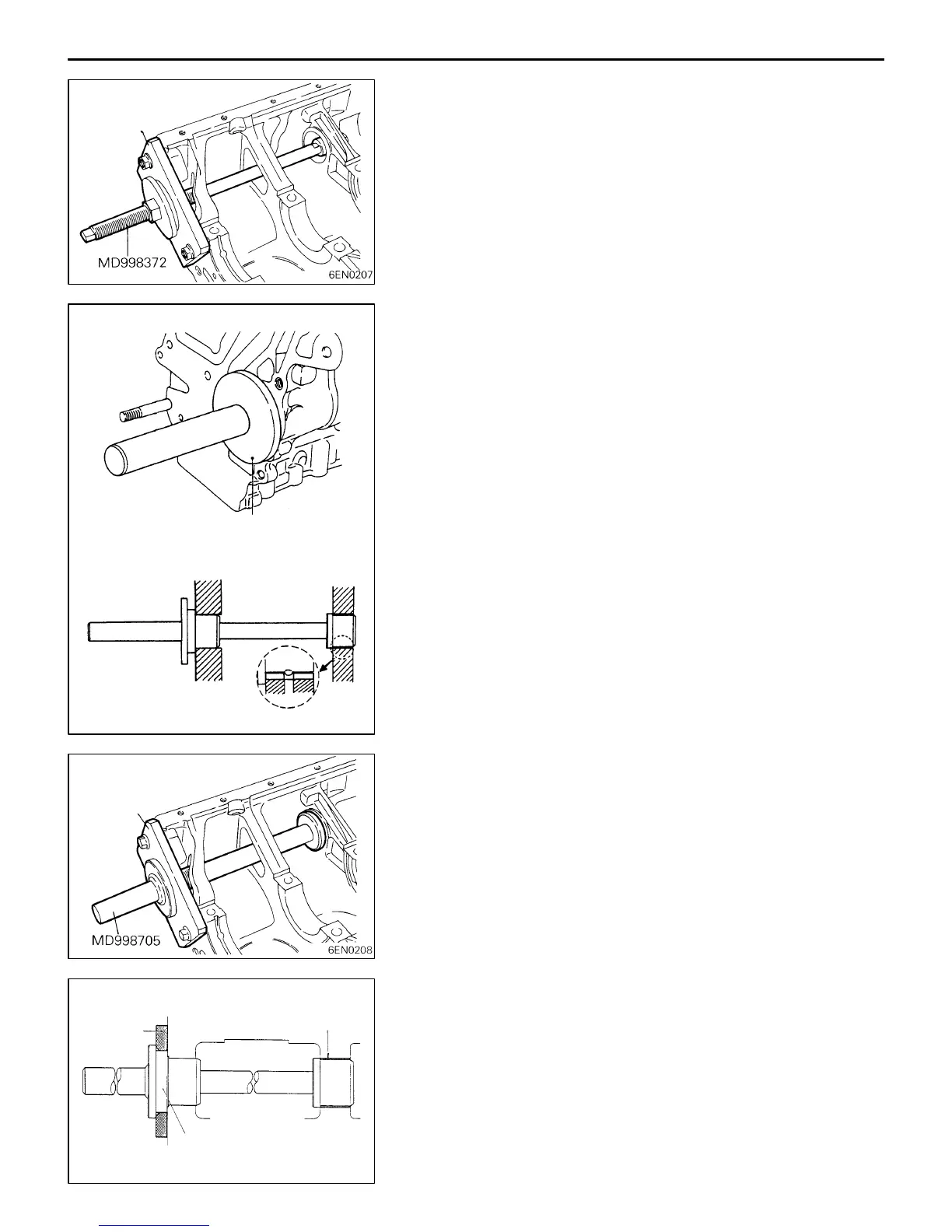

Using the special tool, remove the left counterbalance shaft
rear bearing from the cylinder block.
NOTE
When removing the left counterbalance shaft rear bearing,
install the special tool (MB991603) in front of the cylinder
block.
INSTALLATION SERVICE POINTS
"AA RIGHT COUNTERBALANCE SHAFT REAR
BEARING INSTALLATION
(1) Apply engine oil to the outer surface of bearing.
(2) Using special tools, install right rear bearing. Make sure
that oil hole of bearing is aligned with oil hole of cylinder
block.
"BA LEFT COUNTERBALANCE SHAFT REAR
BEARING INSTALLATION
(1) Install the special tool (Guide Plate) to the cylinder block.
(2) Apply engine oil to the rear bearing outer circumference
and bearing hole in the cylinder block.
(3) Using the special tool, install the rear bearing.
NOTE
The left rear bearing has no oil holes.
MB991603
6EN1034
MD998705
MB991603
6EN0557
MB991603
Rear bearing
MD998705
