ENGINE – Front Case, Counterbalance Shaft and Oil Pan
11-55

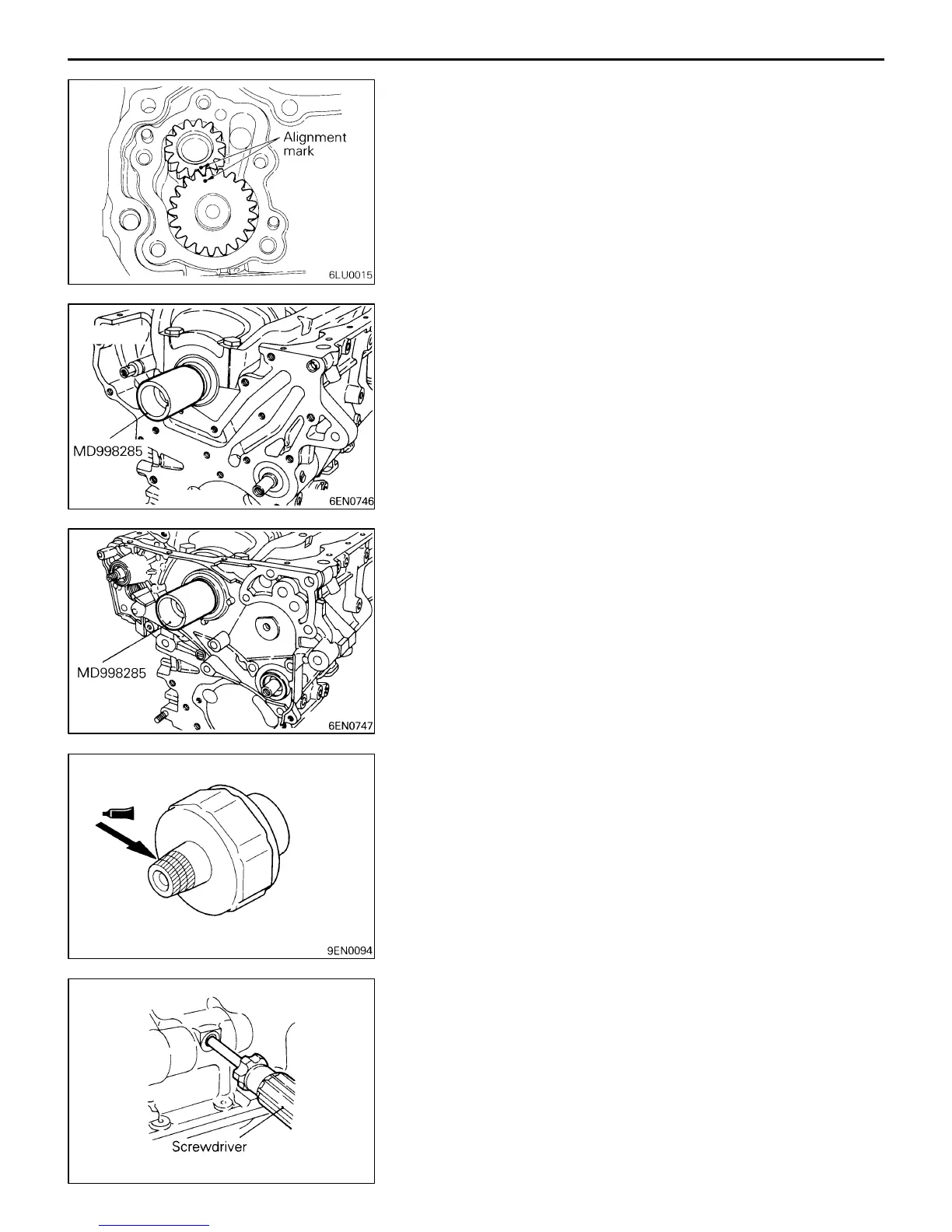

"GA OIL PUMP DRIVEN GEAR / OIL PUMP DRIVE
GEAR INSTALLATION
Apply engine oil amply to the gears and line up the alignment
marks.
"HA FRONT CASE ASSEMBLY INSTALLATION
(1) Set the special tool on the front end of crankshaft and
apply a thin coat of engine oil to the outer circumference
of the special tool to install the front case.
(2) Install the front case assembly through a new front case
gasket and temporarily tighten the flange bolts (other
than those for tightening the filter bracket).
"IA SEALANT APPLICATION TO OIL PRESSURE
SWITCH
Coat the threads of switch with sealant and install the switch
using the special tool.
Specified sealant: 3M
TM
AAD Part No. 8672 or equivalent
Caution
(1) Keep the end of the thread portion clear or sealant.
(2) Avoid an overtightening.
"JA FLANGE BOLT INSTALLATION
(1) Insert a Phillips screwdriver into a hole in the left side
of the cylinder block to lock the silent shaft.
6EN0564
To Next Page
