4 - 13 4 - 13
MELSEC-
4 PROCEDURE UP TO DATA LINK

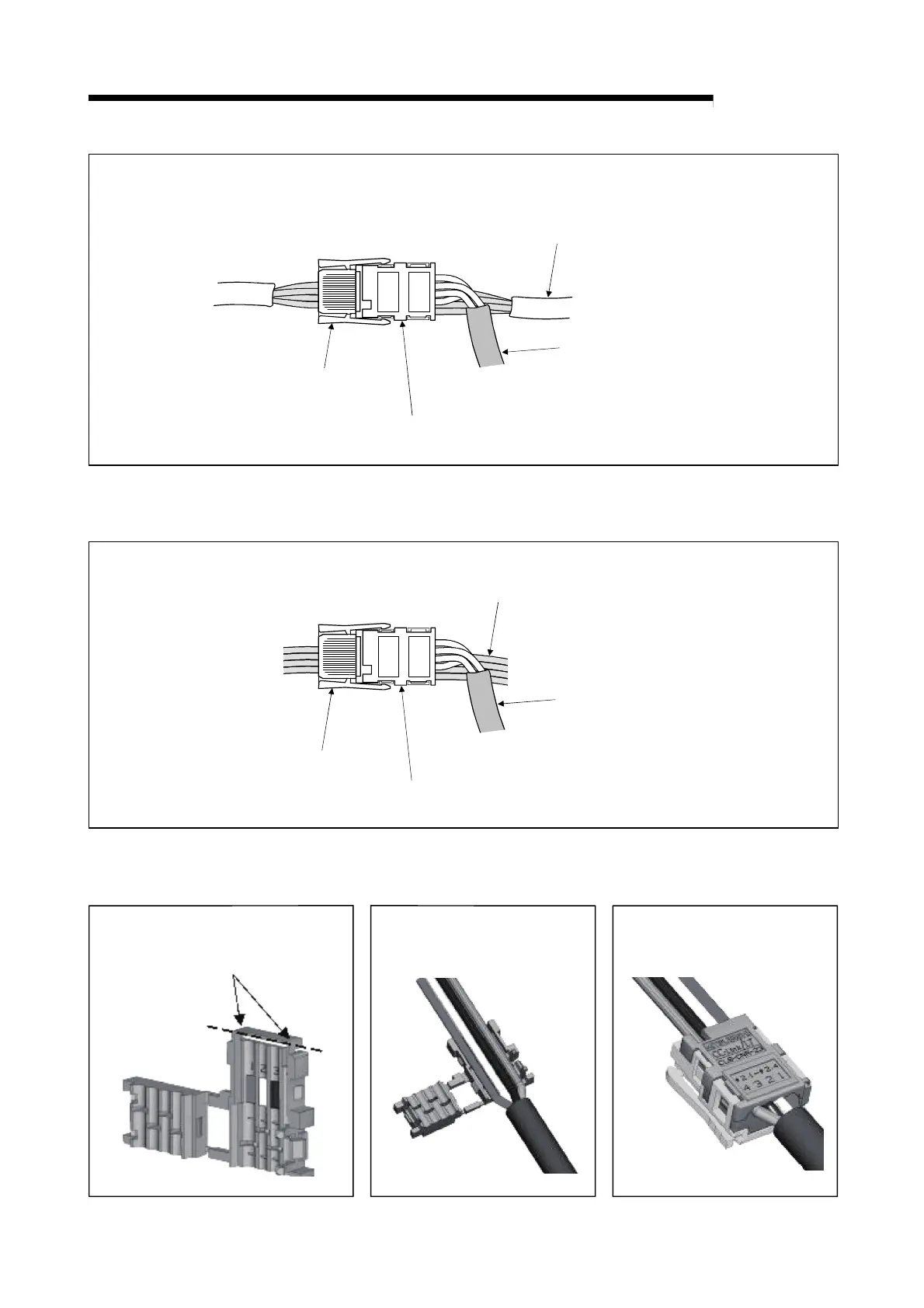

5)-2 When using a connector for T-branching
After removing the sheath 7cm or more, make a T-branch wiring with a connector in the same way as
the T-branch method for the dedicated flat cable.
Connector for VCTF cable/
High flexible cable
VCTF cable/
High flexible cable(Drop line)
VCTF cable/High flexible cable (Trunk line)
Connector for VCTF cable/
High flexible cable
(c) T-Branching procedure (Trunk line: Dedicated flat cable, Drop
line: VCTF cable/High flexible cable)
6) Make a T-branch wiring with the connector in the same way as the T-branch method for the dedicated flat
cable.
Connector for VCTF cable/
High flexible cable
VCTF cable/
High flexible cable(Drop line)
Connector for dedicated flat cable
Dedicated flat cable (Trunk line)
(d) Processing procedure for VCTF cable/High flexible cable
connector (Connecting terminating resistor)
7) Cut off the 2 portions of the covers
edge with nippers and remove the
edge.
8) Place the cover at the point
where the terminating resistor
is to be connected.
Cut
9) Follow the step (a) 3) and 4)
and execute press-fitting.
To Next Page
