4 PROCEDURE UP TO DATA LINK

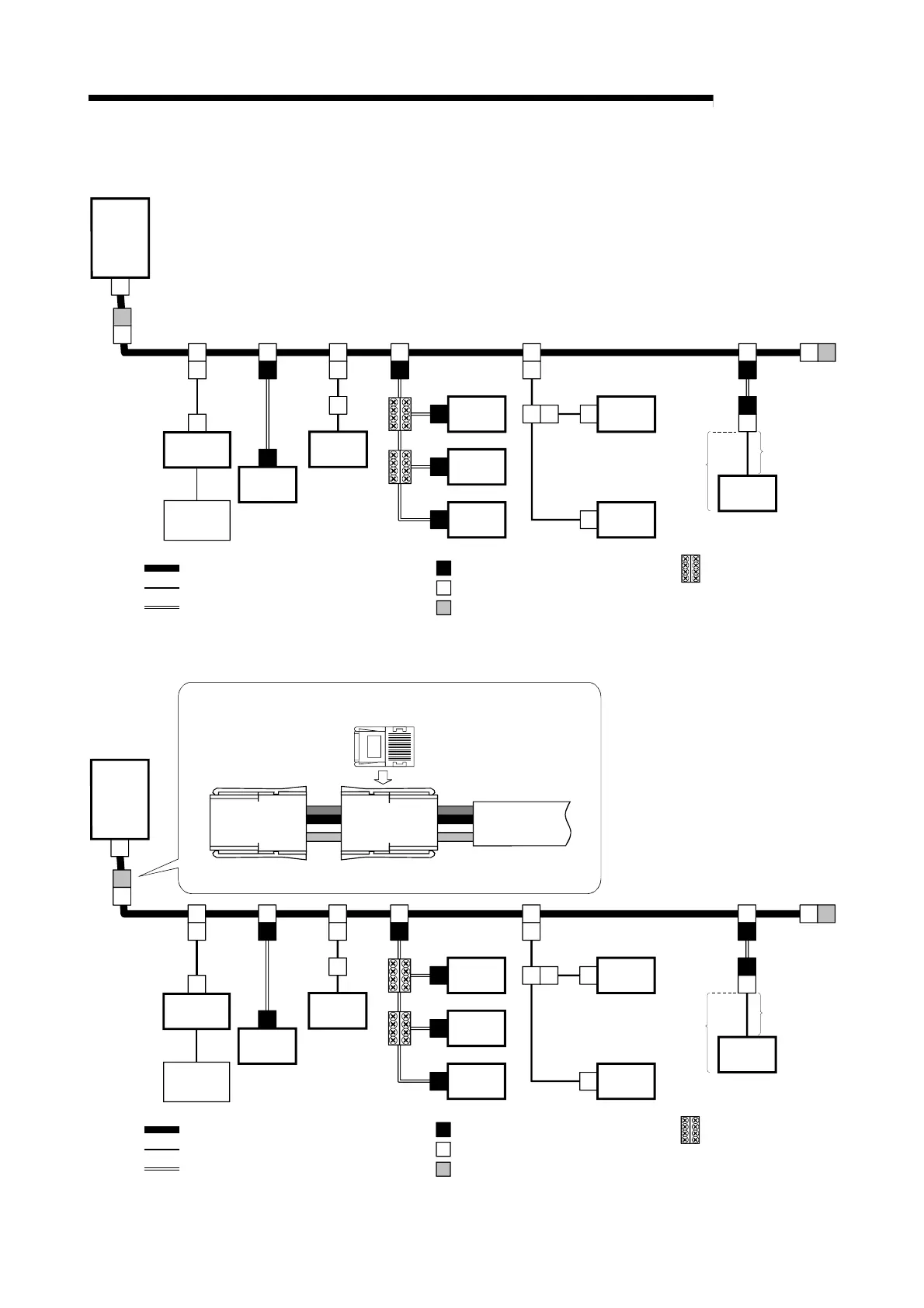

(3) System configuration example for using dedicated flat cable as
trunk line
AJ65SBT
-CLB
Trunk line (Dedicated flat cable)
Drop line (Dedicated flat cable)
Drop line (VCTF cable/High flexible cable)
Commercially
available terminal
Dedicated flat cable connector
Terminating resistor (CL9-TERM)
VCTF/high frexible cable connector
Remote
module
Remote
module
Remote
module
Remote
module
Remote
module
Remote
module
Remote
module
Remote
module
Module
with cable
20cm or less
Power supply
adapter
General
power supply
(24V DC)
(4) System configuration example for using VCTF cable as trunk line
AJ65SBT
-CLB
Trunk line (VCTF cable)
Drop line (Dedicated flat cable)
Drop line (VCTF cable/High flexible cable)
Commercially
available terminal
Dedicated flat cable connector
Terminating resistor (CL9-TERM)
VCTF/high frexible cable connector
Remote
module
Remote
module
Remote
module
Remote
module
Remote
module
Remote
module
Remote
module
Remote
module
Module
with cable
20cm or less
VCTF cable
Connecting terminating resistor on AJ65SBT-CLB side
* For the processing procedure for the VCTF cable connector
(for the terminating resistor), refer to Section 4.5.2.
Install
Terminating resistor (CL9-TERM)
VCTF cable
connector
(For AJ65SBT-CLB)
VCTF cable
connector*
Power supply
adapter
General
power supply
(24V DC)
(For terminating resistor)
