4 PROCEDURE UP TO DATA LINK

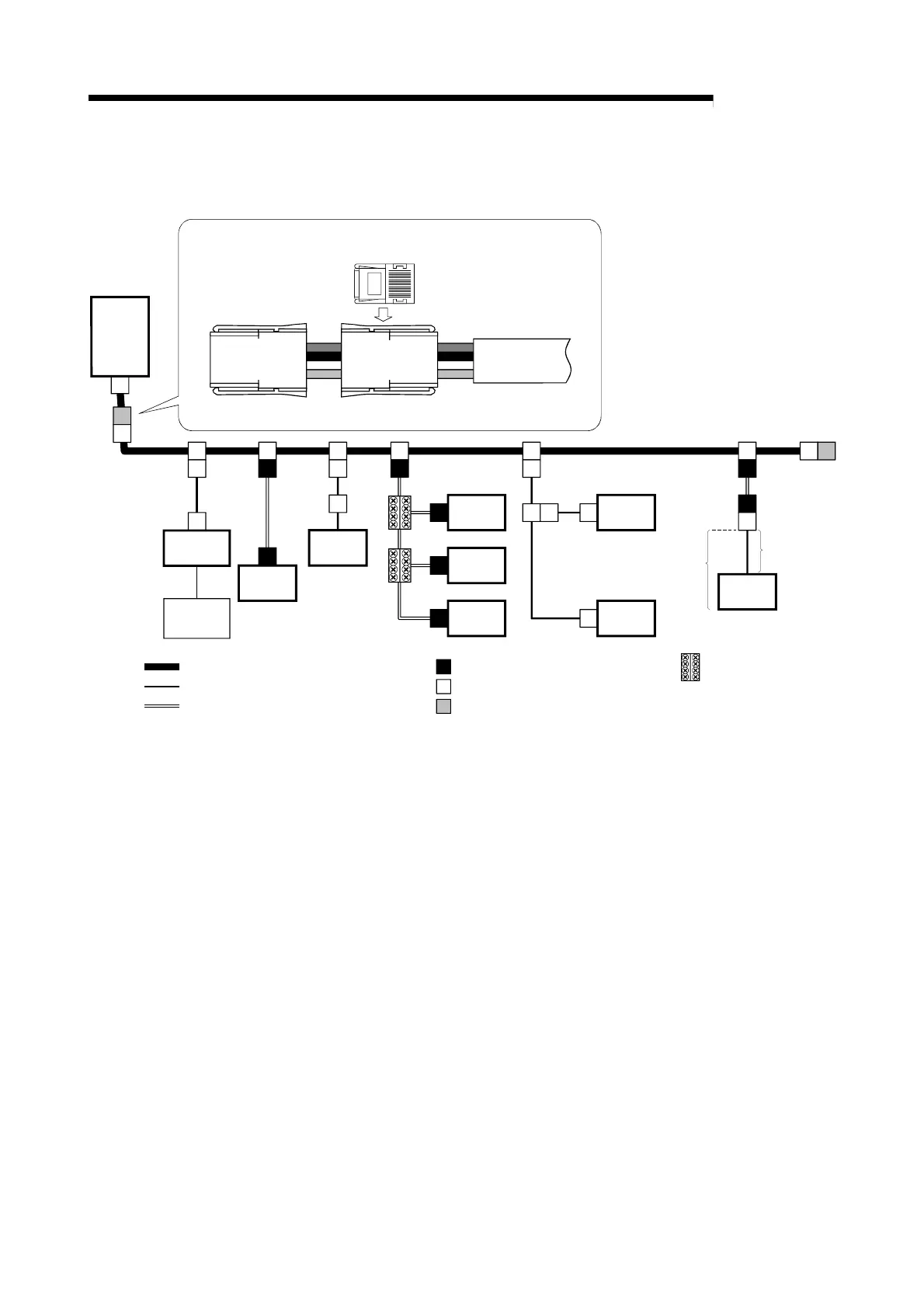

(5) System configuration example for using high flexible cable as trunk
line
AJ65SBT
-CLB
Trunk line (High flexible cable)
Drop line (Dedicated flat cable)
Drop line (VCTF cable/High flexible cable)
Commercially
available terminal
Dedicated flat cable connector
Terminating resistor (CL9-TERM)
VCTF/high frexible cable connector
Remote
module
Remote
module
Remote
module
Remote
module
Remote
module
Remote
module
Remote
module
Remote
module
Module
with cable
20cm or less
High flexible
cable
Connecting terminating resistor on AJ65SBT-CLB side
* For processing procedure for the high flexible cable connector*
(for terminating resistor), refer to Section 4.5.2.
Install
Terminating resistor (CL9-TERM)
High flexible
cable connector
(For AJ65SBT-CLB)
High flexible
cable connector*
Power supply
adapter
General
power supply
(24V DC)
(For terminating resistor)
