3Installing the option devices
Installation the pneumatic hand set （4A-HP02/HP02E） 3-35
3.2 Installation the pneumatic hand set （4A-HP02/HP02E）
Table 3-1 shows the construction of the pneumatic hand set and the installation procedure and Table 3-1 shows
the configuration equipment which correspond with the Table 3-1.
.

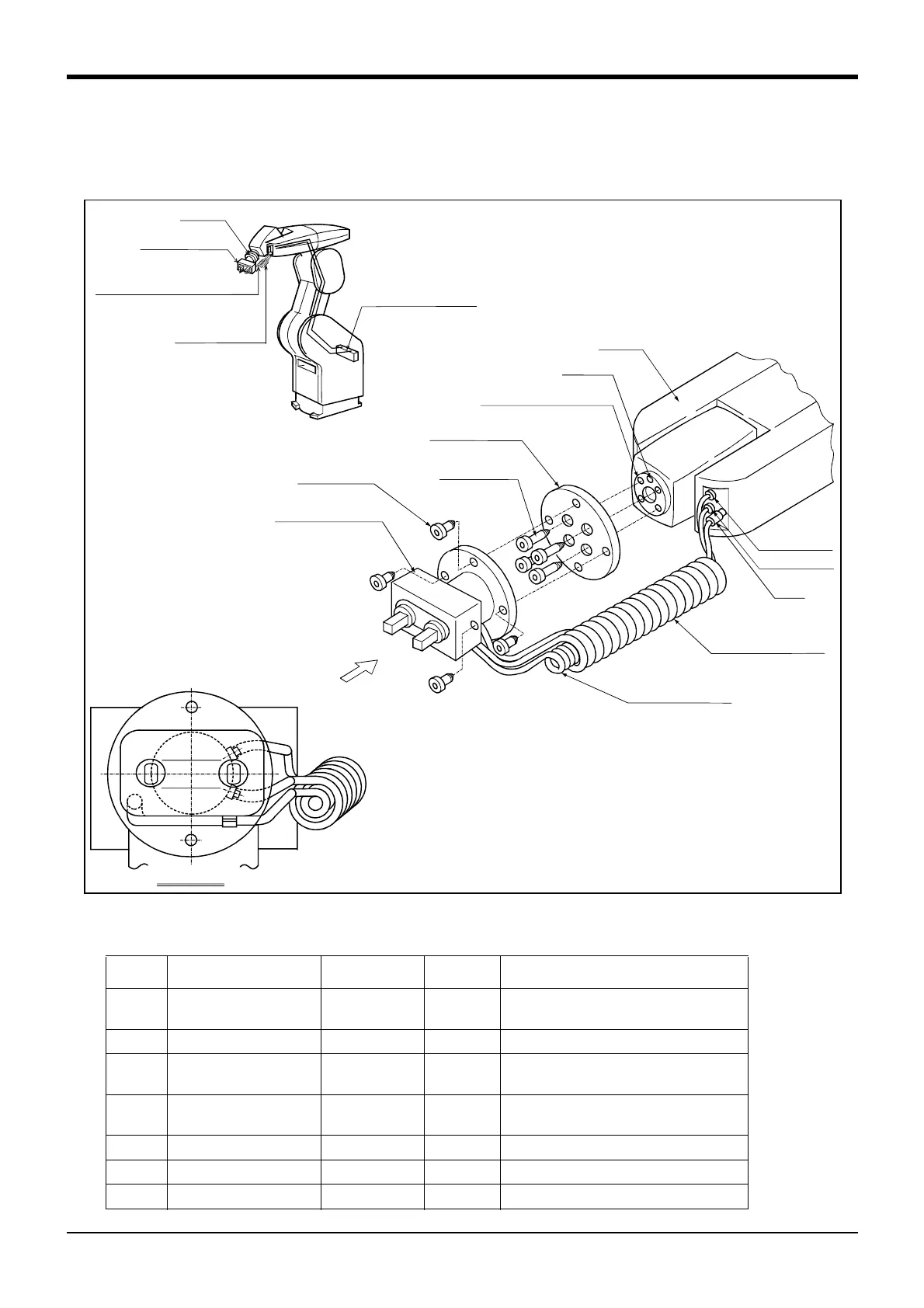

Fig.3-3 ： Pneumatic hand set installation procedures
Table 3-3 ： Configuration for the pneumatic hand set
Number Part name Model Quantity Description
<1> Pneumatic hand 1E-HP01/
1E-HP01E
1 Hand input cable with pneumatic coupling
<2> Pneumatic hand interface 2A-RZ365/375 1 Interface board (Install on the controller)
<3> Solenoid valve set 1E-VD01/
1E-VD01E
1 Comes with two M3x25 socket head bolts
<4> Hand curl tube
(2 tubes per set)
1E-ST0402C 1
<5> Socket head bolts M5x164
<6> Socket head bolts M3x124
<7> Adapter BU144D697H011This item is needed for installing <1> above.
ViewfromA
A
<1>Pneamatichand

<6>M3×12(4)
<5>M5×16(4)
<7>Handadapter
<4>Handcurltube
Handcheckcable
Mechanicalinterface

φ5hole
Foream
CON1H
Coupling"
2"
Coupling"
1"
<7><5>

<1><6>


<3>

Adapter

Pneumatichand

(Handcheckcable)
Attachestopneumatichand
Handcurltube
<4>

Solenoidvalvese
t
