5-52 Maintenance and inspection procedures
5Maintenance and Inspection
(3) Timing belt tension

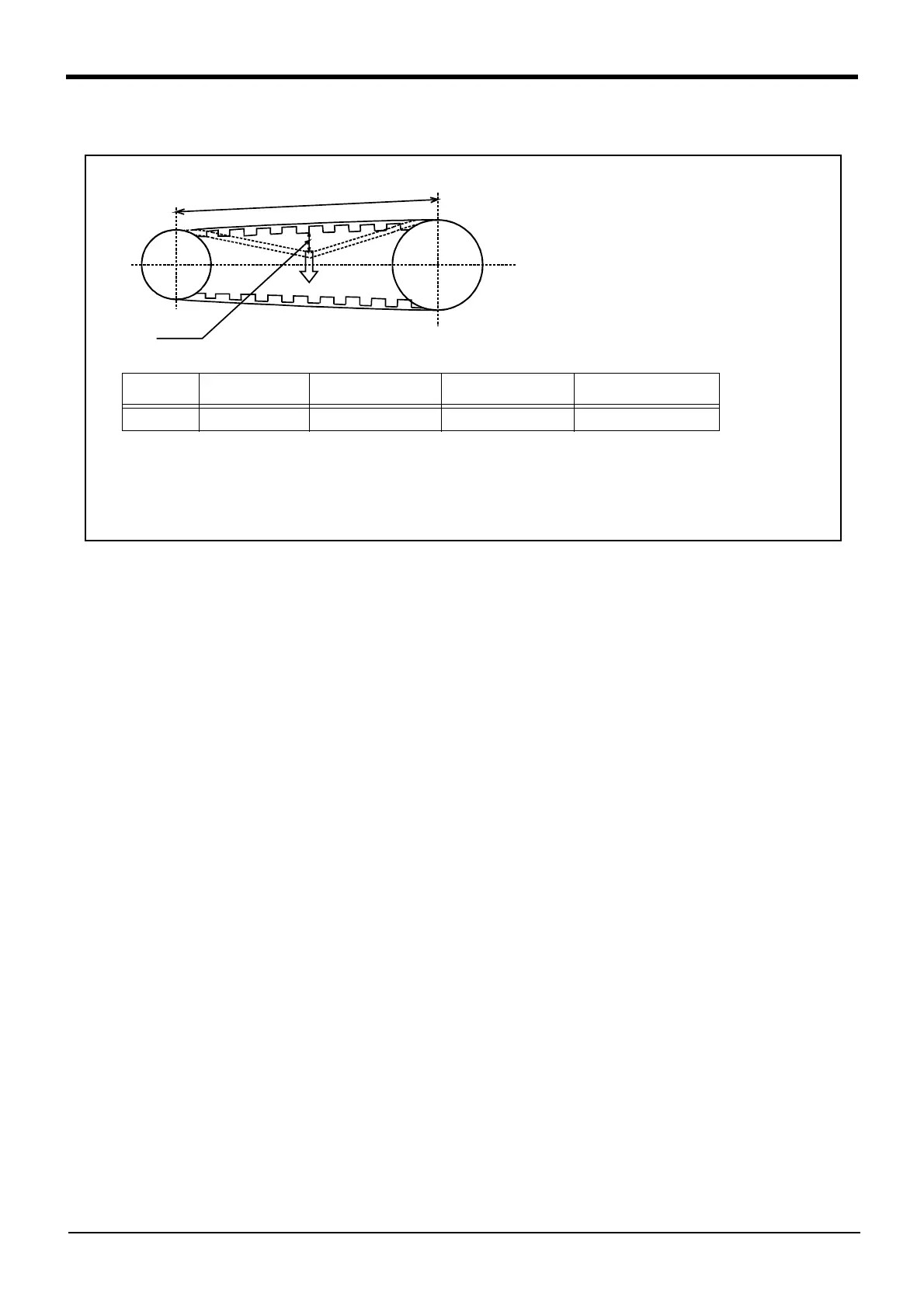

Fig.5-7 ： Belt tension
The timing belt can satisfactorily convey the drive and keep a durable force only when it has an adequate tension.
The belt tension should not be too tight or too lose. Instead, it should be adjusted to a degree that elasticity is felt
when the belt is pressed with the thumb. If the belt tension is too weak, the belt loosening side will vibrate. On the
other hand, if the belt tension is too strong, a sharp sound will be heard and the belt tension side will vibrate.
The detailed adjustment (tension) is shown in Fig. 5-7.
Check and adjust with the belt pressing force f and the slack amount d between span s.
d
f
ｆ：Pressing force
ｓ：Span
ｄ：Slack
Axis Belt type Span ： s (mm) Slack ： d (mm) Pressing force ： f (N)
J5 B40S2M320U 120 1.9 0.7
