2-22 Confirming the operation
2Unpacking to Installation

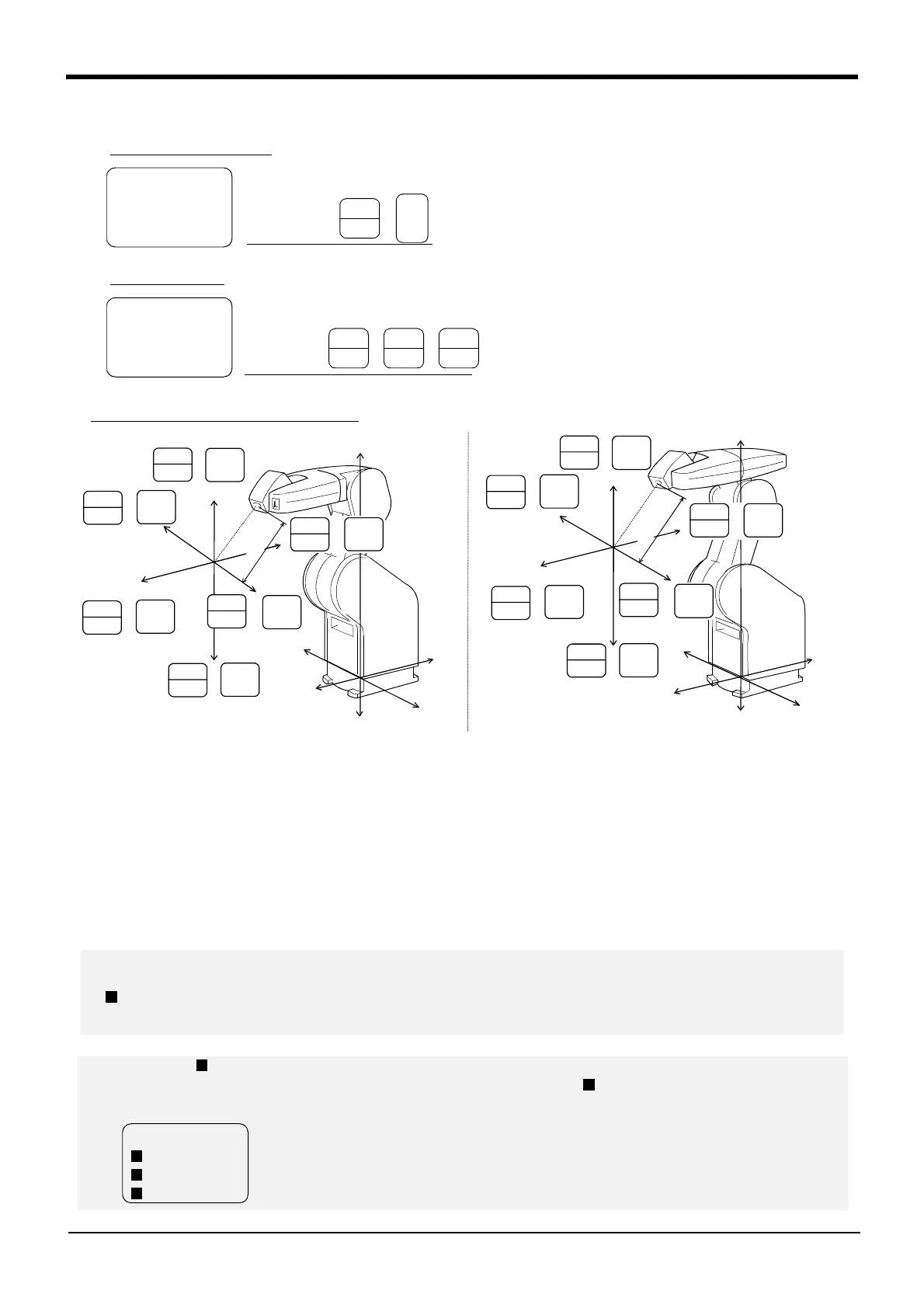

(2) XYZ jog operation
Press the [MOVE] + [XYZ] keys to select the XYZ
jog mode. "XYZ" will appear at the upper left of
the screen.
Each time the [MOVE] + [+] keys are pressed, the
override will increase in the order of LOW → HIGH
→ 3 → 5 → 10 → 30 → 50 → 70 → 100%. When
the [MOVE] + [-] keys are pressed, the override
will decrease in the reverse order. The currently
set speed will appear on the upper right of the
screen. Set the override to 10% here for
confirmation work.
・ When the [MOVE] + [+X (J1)] keys are pressed, the robot will move along the X axis plus direction.
When the [MOVE] + [-X (J1)] keys are pressed, Move along the minus direction.
・ When the [MOVE] + [+Y (J2)] keys are pressed, the robot will move along the Y axis plus direction.
When the [MOVE] + [-Y (J2)] keys are pressed, Move along the minus direction.
・ When the [MOVE] + [+Z (J3)] keys are pressed, the robot will move along the Z axis plus direction.
When the [MOVE] + [-Z (J3)] keys are pressed, Move along the minus direction.
X,Y,Z LOW
X +134.50
Y +220.00
Z +280.00
Select the XYZ jog mode
X,Y,Z LOW
X +134.50
Y +220.00
Z +280.00
Set the jog speed
＋
XYZ jog mode
STEP
MOVE
XYZ
$":
Set the speed
＋
STEP
MOVE
＋
FORWD
－
BACKWD
6-axis type
＋X
＋Y
＋Z
＋X
＋Y
＋Z
－Z
－Ｙ
－
Ｘ
＋
STEP
MOVE
4
MNO
- Y
(J2)
＋
STEP
MOVE
3
JKL
- Z
(J3)
＋
STEP
MOVE
' ; ^
+ X
(J1)
5-axis type
＋X
＋Y
＋Z
－Z
－Ｙ
－Ｘ
＋X
＋Y
＋Z
＋
STEP
MOVE
8
, @\
+ Z
(J3)
＋
STEP
MOVE
4
MNO
- Y
(J2)
＋
STEP
MOVE
9
&< >
+Y
(J2)
＋
STEP
MOVE
3 JKL
- Z
(J3)
＋
STEP
MOVE
' ; ^
+ X
(J1)
＋
STEP
MOVE
8
, @\
+ Z
(J3)
Tool length
Tool length
＋
- X
(J1)
SPACE PQR
STEP
MOVE
＋
- X
(J1)
SPACE PQR
STEP
MOVE
＋
STEP
MOVE
9
&< >
+Y
(J2)
Moving along the base coordinate system
※ The direction of the frange will not change
◇
◆◇ When the robot is in the transportation posture ◇◆◇
There are directions from which linear movement is not possible from the transportation posture. In this case, an
X will appear on the T/B screen, and the robot will not move. Refer to section "(1) JOINT jog operation" on page
20", and move the robot to a position where linear movement is possible, and then carry out XYZ jog.
Ｘ
◇
◆◇ When an
X
appears on the T/B screen display ◇◆◇
If the robot is moved outside the movement area with any of the axes, an X will appear. In this case, move the axis
in the opposite direction.
In the example on the left, further linear movement in the same direction is not possible.
Ｘ
Ｘ
XYZ LOW
X X +360.00
X Y +280.00
X Z +170.00
Ｘ
Ｘ
Ｘ
