2 Basic Measuring Methods
No. 99MAF029B
2

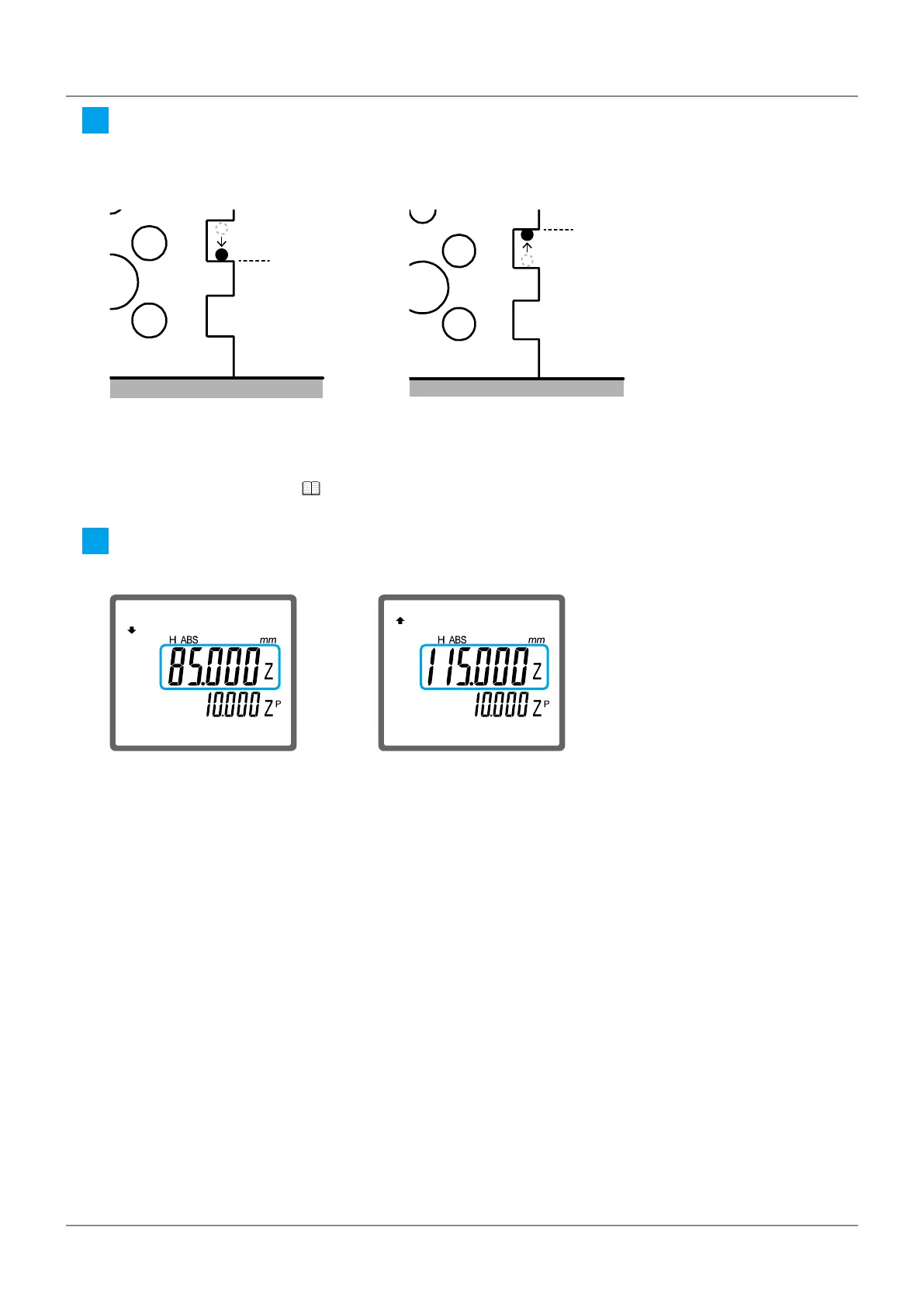

Bring the probe into contact with surface a1 until a beep sound is made.
Maintain contact between the probe and the surface a1.
a1
a1
Top surface measurement Bottom surface measurement
»
When the measurement is complete, [H] and the measured value are displayed on the LCD screen.
Tips
If the product is connected to any external devices, the measurement results will be automatically
output. For details, "3.9 Outputting Measurement Results to an External Device" (page 47)
3
Confirm the measurement.
Top surface measurement Bottom surface measurement
