57
5 Specifications
No. 99MAF029B
5.2
Digimatic Data Output Specification

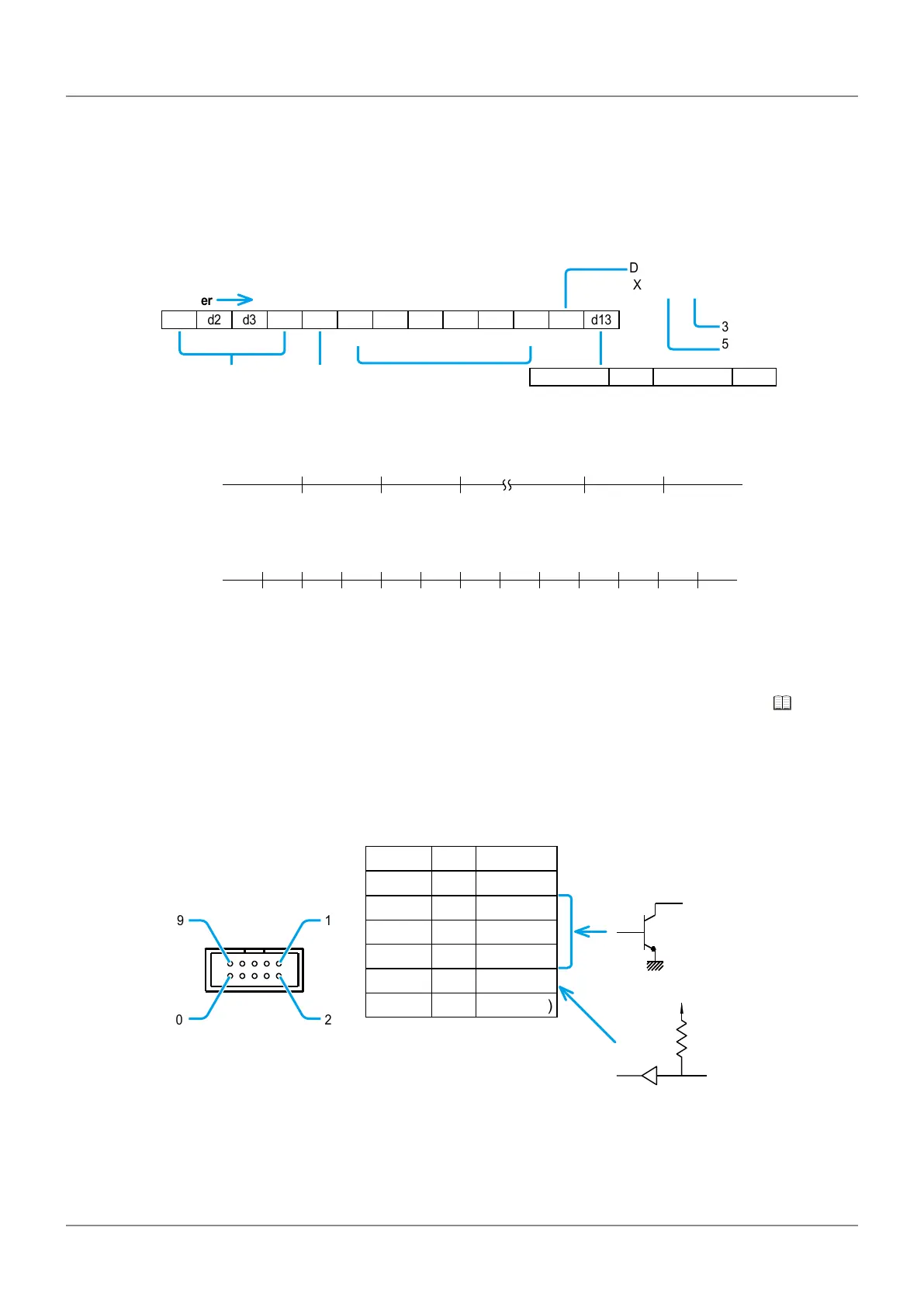

5.2.1 Data Format
(Output example)
(Provisions) "d1" "d2" "d3" "d13"
2
0
→
2
1
→
2
2
→
2
3
→
2
0
→
2
1
→
2
2
→
2
3
→
2
0
→
2
1
→
2
2
→
2
3
→
2
0
→
2
1
→
2
2
→
2
3
(Example) At a normal measurement of 0.123 mm
1111 1111 1111 1111 0000 0000 0000 0000 1000 0100 1100 1100 0000
F F F F + 0 0 0 1 2 3 3 mm
d1 d2 d3 d4 d5 d6 d7 d8 d9 d10 d11 d12 d13
MSD LSD
Unit
mm 0000 inch 1000
Measured value
All "F" (1111) Sign
+: 0 (0000)
–: 8 (0001)
Output order
Decimal point
X.X.X.X.X.X.X
3 (1100)
5 (1010)
Tips
7 digits are enabled when the resolution is set to [0.00005 in]. Due to our Digimatic data output
specifications, all of these digits cannot be output simultaneously. Generally, the value in the 10s place
(the highest value position) will be excluded, and only the remaining 6 digits will be output. However,
it is possible to change the settings so that the digit with the highest value is output. For details,
"3.9.1 Outputting to a Mini Printer (Optional Accessory)" (page 47)
5.2.2 Connector Specification
Pin No. I/O Symbol
1, 10 - GND
2 O DATA
3 O CLOCK
4 O RD
5 I REQ
6 to 9 - (Not used)
Vceo=35(V)
Ic=200(mA)
3.3 (V)
22 (kΩ)
CMOS
9
10
1
2
