1 Before Using This Product
No. 99MAF029B

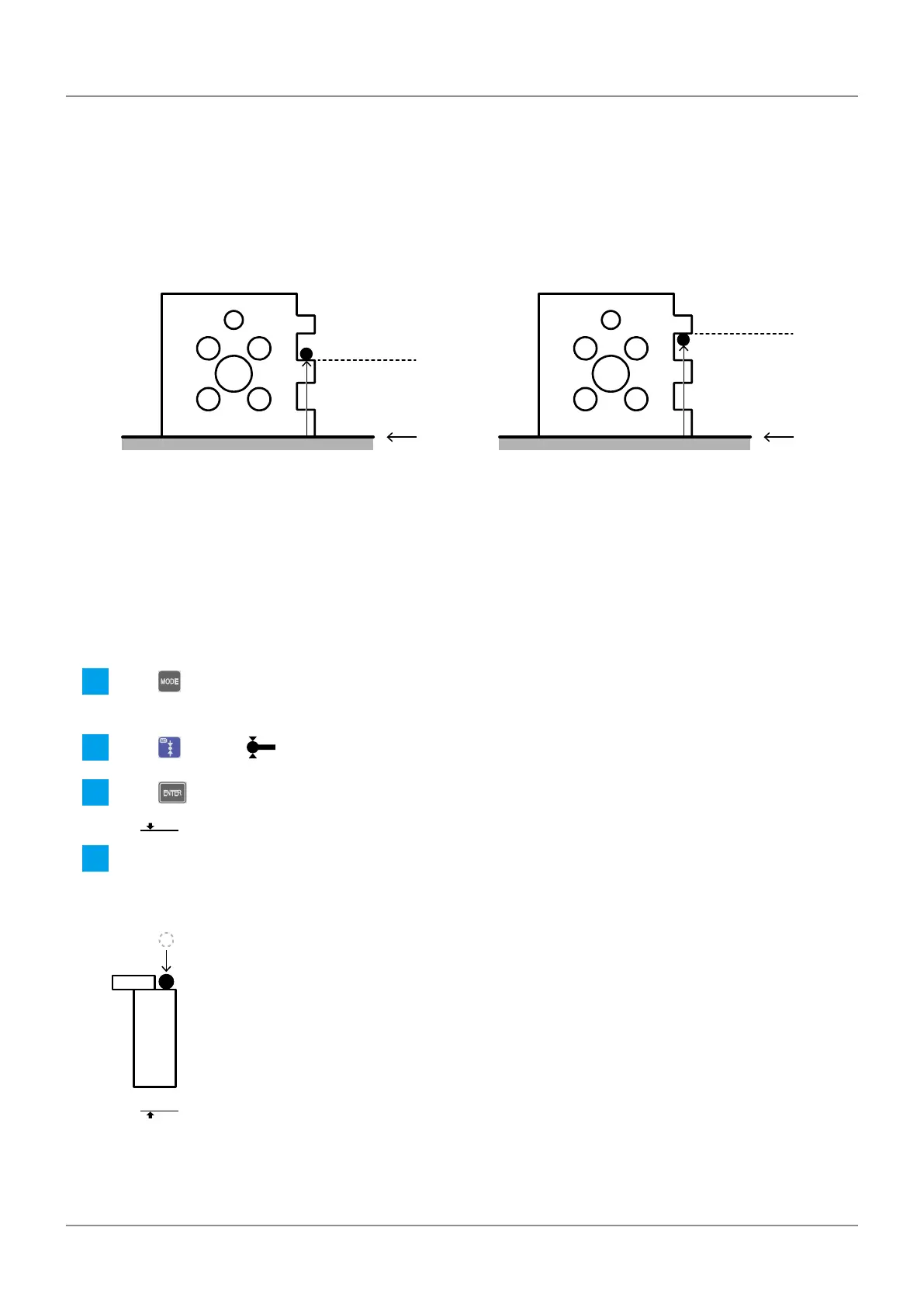

1.4.2 Setting the Probe Diameter
The height is calculated using the distance moved by the bottom surface of the sphere attached to the
tip of the probe. (See the left figure below.)
However, when measuring by making contact with the top surface of the sphere, the height will be
measured by adding the diameter of the sphere to the distance moved by the bottom surface of the
sphere. (See the right figure below.)
a1
a1
Top surface measurement
Origin
Surface a1 height = Distance moved by the bottom
surface of the sphere
Bottom surface measurement
Origin
Surface a1 height = Distance moved by the bottom
surface of the sphere + diameter of the sphere
The diameter of the sphere must be set in advance. The following procedure explains how to measure
the diameter of the sphere using the provided ball diameter calibration block. This procedure is
necessary if you are using the product for the first time or if you are replacing the probe.
Tips
If using a gauge block, use one with a height of 20 mm or more.
1
Press .
»
Characters and icons will be displayed in the bottom row of the LCD screen.
2
Press to select (probe settings).
3
Press .
»
will be displayed on the upper left of the LCD screen.
4
Slowly bring the probe into contact with the following position on the ball diameter calibration block until
a beep sound is made.
»
will be displayed on the upper left of the LCD screen.
To Next Page
