47
3 Specific Usage Applications
No. 99MAF029B
3.9
Outputting Measurement Results to an External
Device
Depending on the application of the measurement results data can be output to the optional mini
printer or sent to the PC.
3.9.1 Outputting to a Mini Printer (Optional Accessory)
Connecting the optional Digimatic mini-processor (DP-1VR, etc.) to the Digimatic output connector of
this product will allow you to output measurement results. The measurement results will automatically
be output upon completion of measuring. However, you can also output data by pressing .
NOTE
You can output measurement results when they are displayed. There is no output during a scanning
measurement.
Tips
• You can also output measurement results by using optional external devices. For details, see the
accompanying manual for the Digimatic mini-processor.

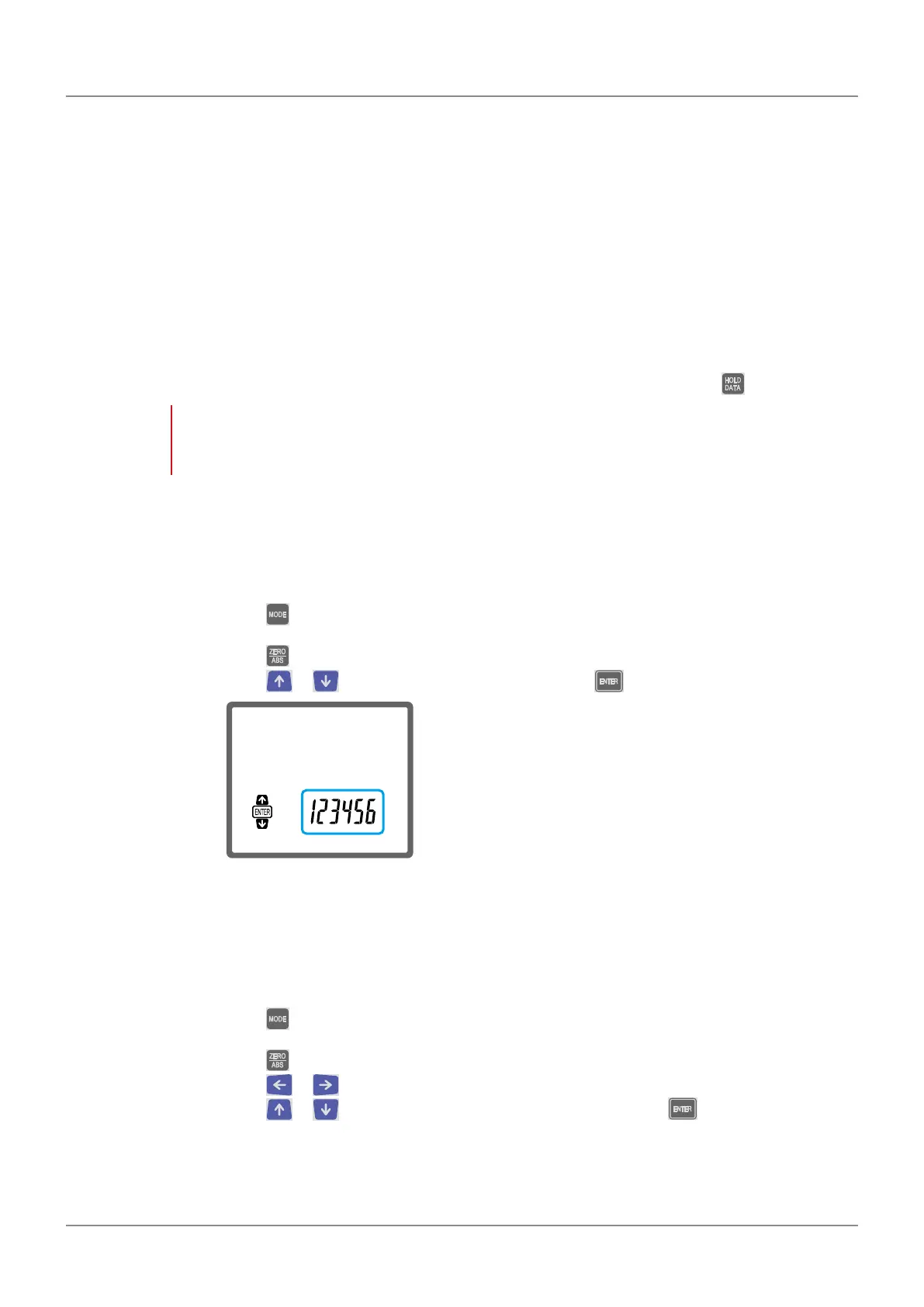

• By default, the product is set to output the value displayed in the top row of the LCD screen. Use
the following procedure to change the setting to the bottom row.
1
Press .
»
Characters and icons will be displayed in the bottom row of the LCD screen.
2
Press to select [OUTPUT] (output setting).
3
Press or to select the bottom row, and then press .
»
Setup is complete.
• If the resolution for models that support inches is set to [0.00005 in], you can change which digits
in the measurement are output. By default, the lowest 6 digits are set to be output. For example, in
[22.12345 in], [2.12345 in] will be output. Use the following procedure to change the output to the
highest 6 digits.
1
Press .
»
Characters and icons will be displayed in the bottom row of the LCD screen.
2
Press to select [OUTPUT] (output setting).
3
Press or .
4
Press or to select [88.8888] (the first 6 digits), and then press .
»
Setup is complete.
