3 Specific Usage Applications
No. 99MAF029B
3.3
Simplifying Measurement Procedures
For example, if you want to make measurements in the following order: height at 4 points, inner
diameter at 4 points, and outer diameter at 2 points. When performing multiple measurements in a
set order, it is beneficial to register the procedure. Because the measurements are automatically
performed following the order of the registered procedure, the overall operation is simplified.
The following measurement functions can be registered.
y
Inner diameter measurement
y
Outer diameter measurement
y
Plane scanning measurement
y
Bottom surface measurement
y
Top surface measurement
Tips
For details about each measurement function, "2 Basic Measuring Methods" (page 17)
3.3.1 Registering a Measurement Procedure
Select the measurement functions, such as height and inner diameter, in the order they will be used,
and register them. Up to 10 steps can be registered.
1
Press 2 times.
»
Characters will be displayed in the bottom row of the LCD screen.
2
Press to select [ASSIST] (assist function).
3

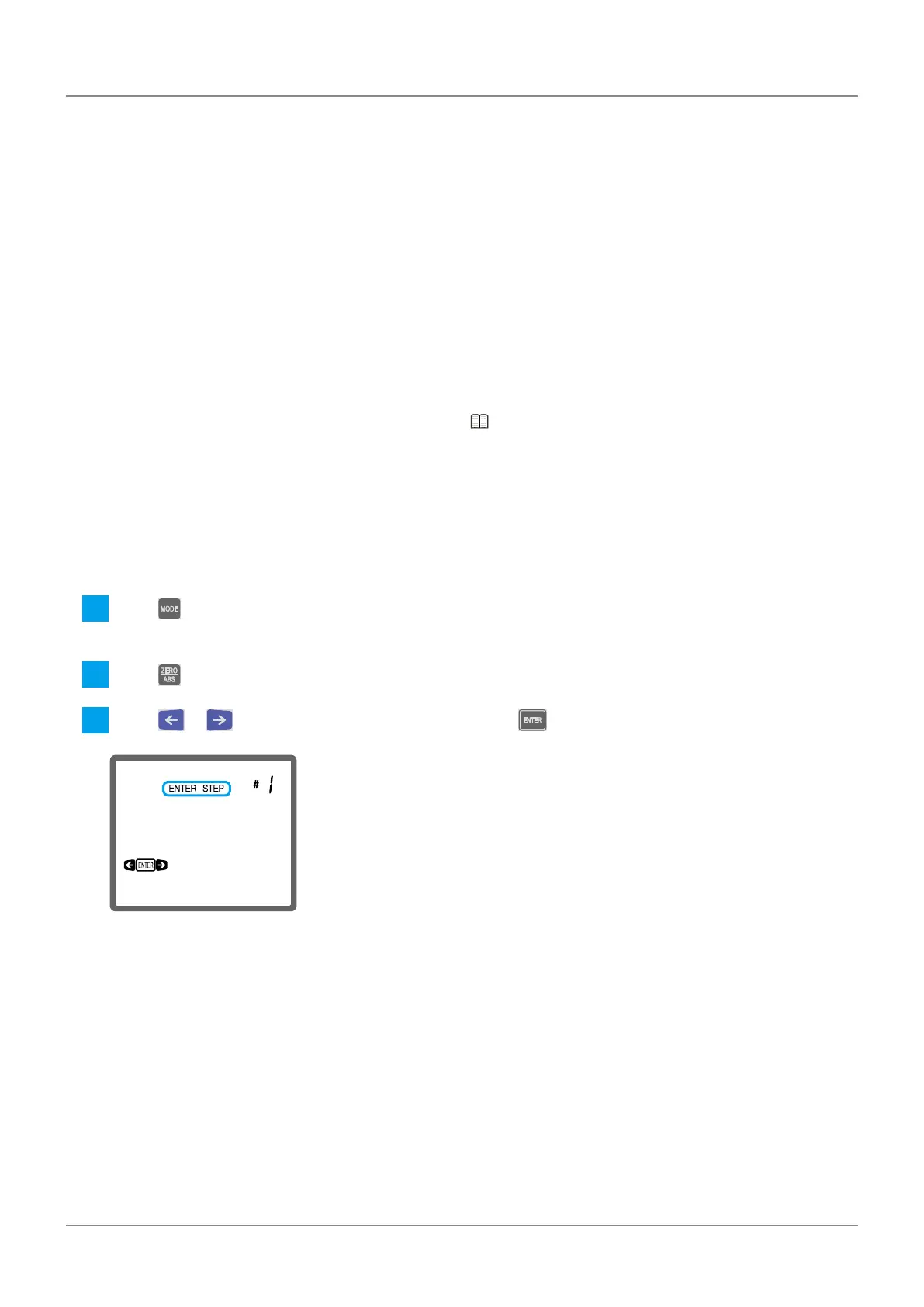

Press or to select [ENTER STEP], and then press .
