3 Specific Usage Applications
No. 99MAF029B
4

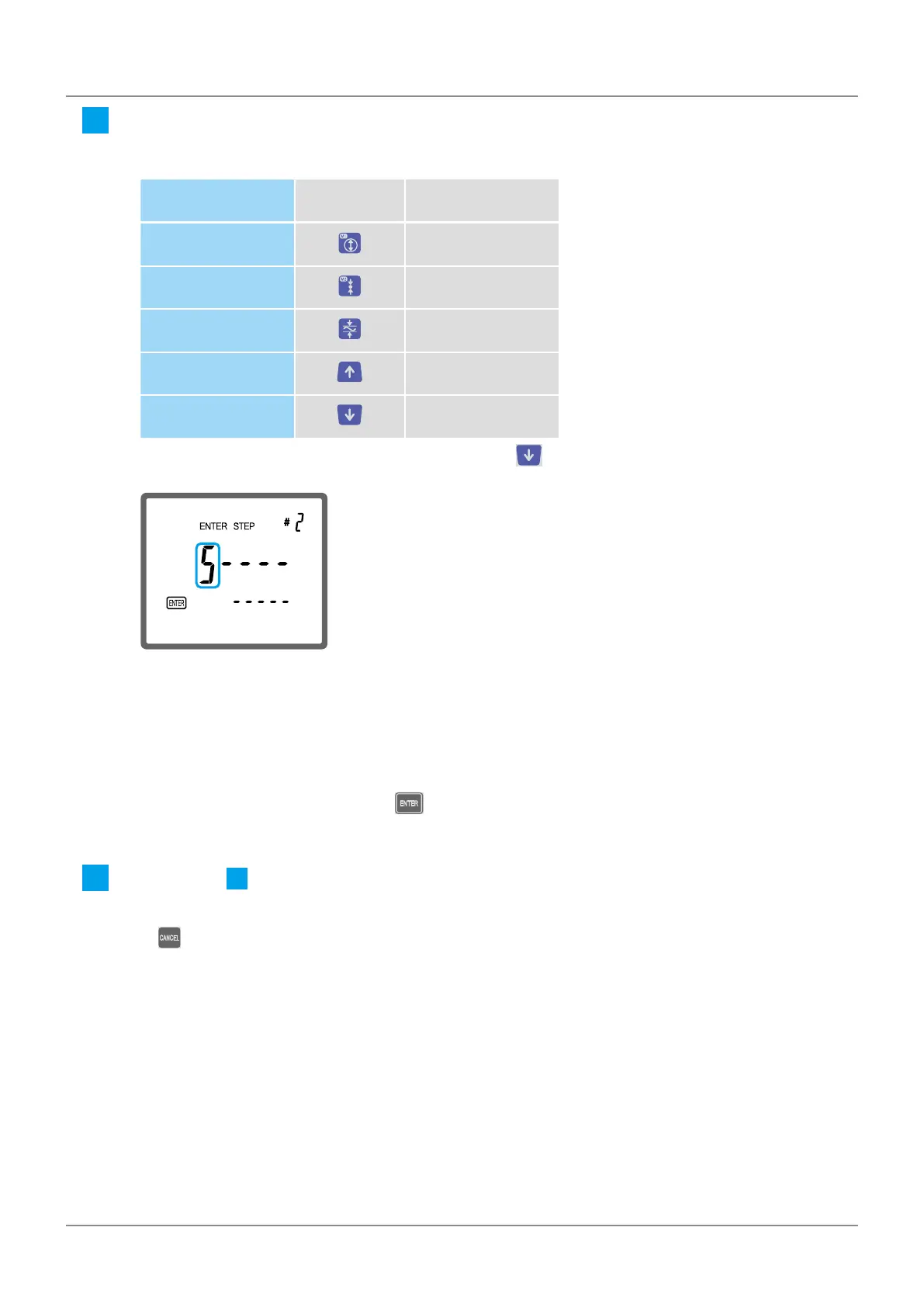

Register a measurement procedure.
1
Refer to the following table. Press the key for the first measurement to be performed.
Measurement
function
Setting key
Measurement
function number
Inner diameter
measurement
1
Outer diameter
measurement
2
Plane scanning
measurement
3
Bottom surface
measurement
4
Top surface
measurement
5
For example, to register an top surface measurement, press . In this case, [5] will be displayed for the
measurement function number.
»
Registering the first measurement is complete, and the flashing cursor moves to the right.
2
Register the subsequent steps using the same method.
»
Setting the 10th step completes the registration. The measurement function registered to the 1st step will
then automatically run.
Tips
To register 9 or fewer steps, press to complete the registration process. The measurement
function registered to the 1st step will then automatically run.
5
Proceed to step
4
in "3.3.2 Measuring Using a Registered Measurement Procedure" (page 42) to
make the measurements.
Press to terminate the operation.
