2 Basic Measuring Methods
No. 99MAF029B
5
If you have tightened the clamp screw,
loosen it.
3
Obtain the highest point of the hole.
If the scanning measurement termination method is set to [Auto] (automatic termination)
1

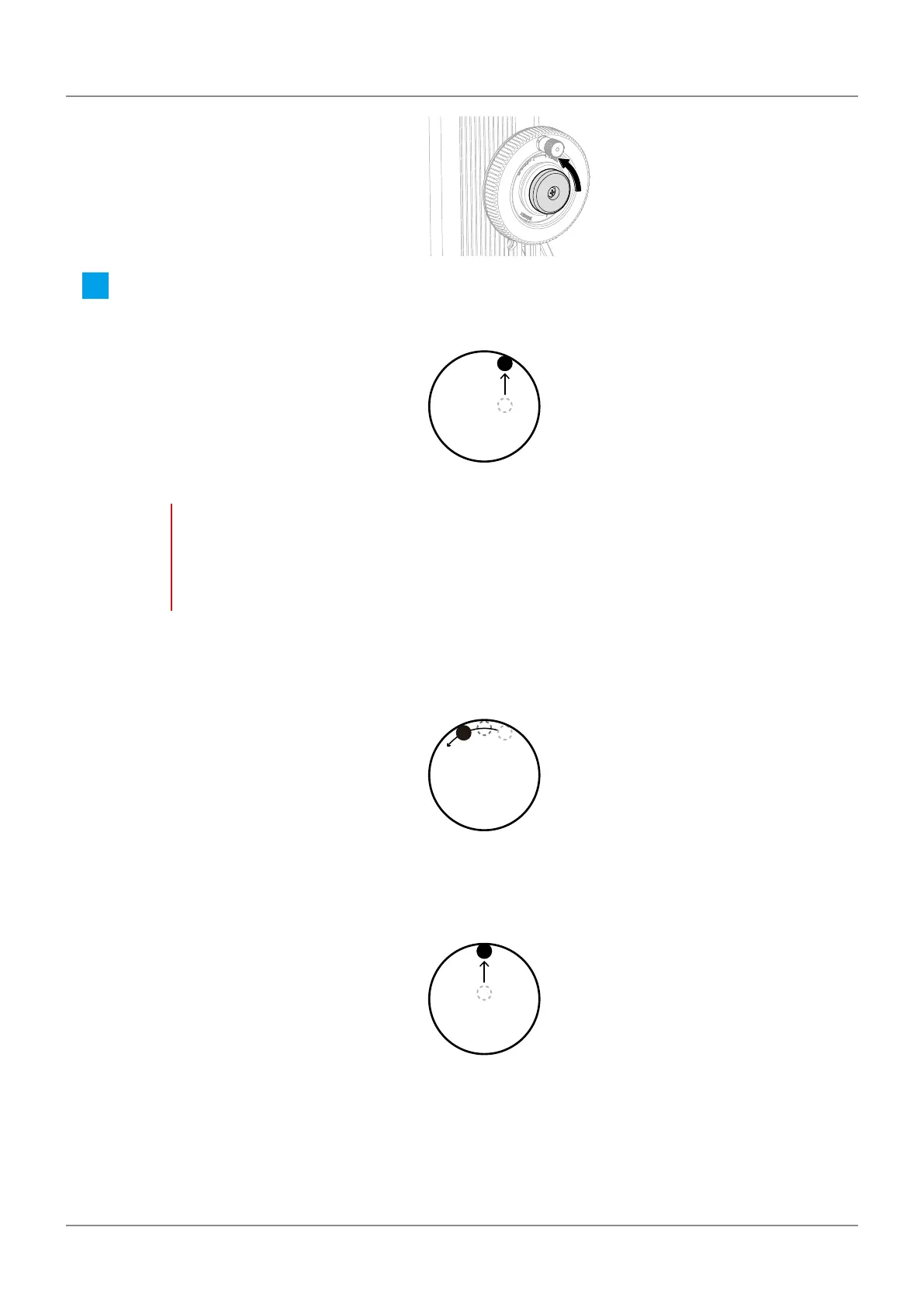

Face the probe towards the left or right
of the center top surface of the hole,
and slowly bring it into contact with the
surface until a beep sound is made.
Maintain contact between the probe and
the surface.
»
[0.000] will be displayed on the LCD
screen.
NOTE
Bring the probe into contact within
0.5 mm of the highest point.
Measuring with a wider range may
increase measurement errors.
2
Secure the probe up/down wheel with
your hand or the clamp screw in order to
prevent it from moving.
3
Move the probe left or right so that it
passes the center of the top surface of
the hole. Perform this action until a beep
sound is made.
»
The measurement of the
highest point is complete.
4
If you have tightened the clamp screw,
loosen it.
If the scanning measurement termination method is set to [ENTER] (manual termination)
1
Face the probe towards the center of the
top surface of the hole, and slowly bring
it into contact with the surface until a
beep sound is made.
Maintain contact between the probe and
the surface.
2
Secure the probe up/down wheel with
your hand or the clamp screw in order to
prevent it from moving.
