2 Basic Measuring Methods
No. 99MAF029B
3

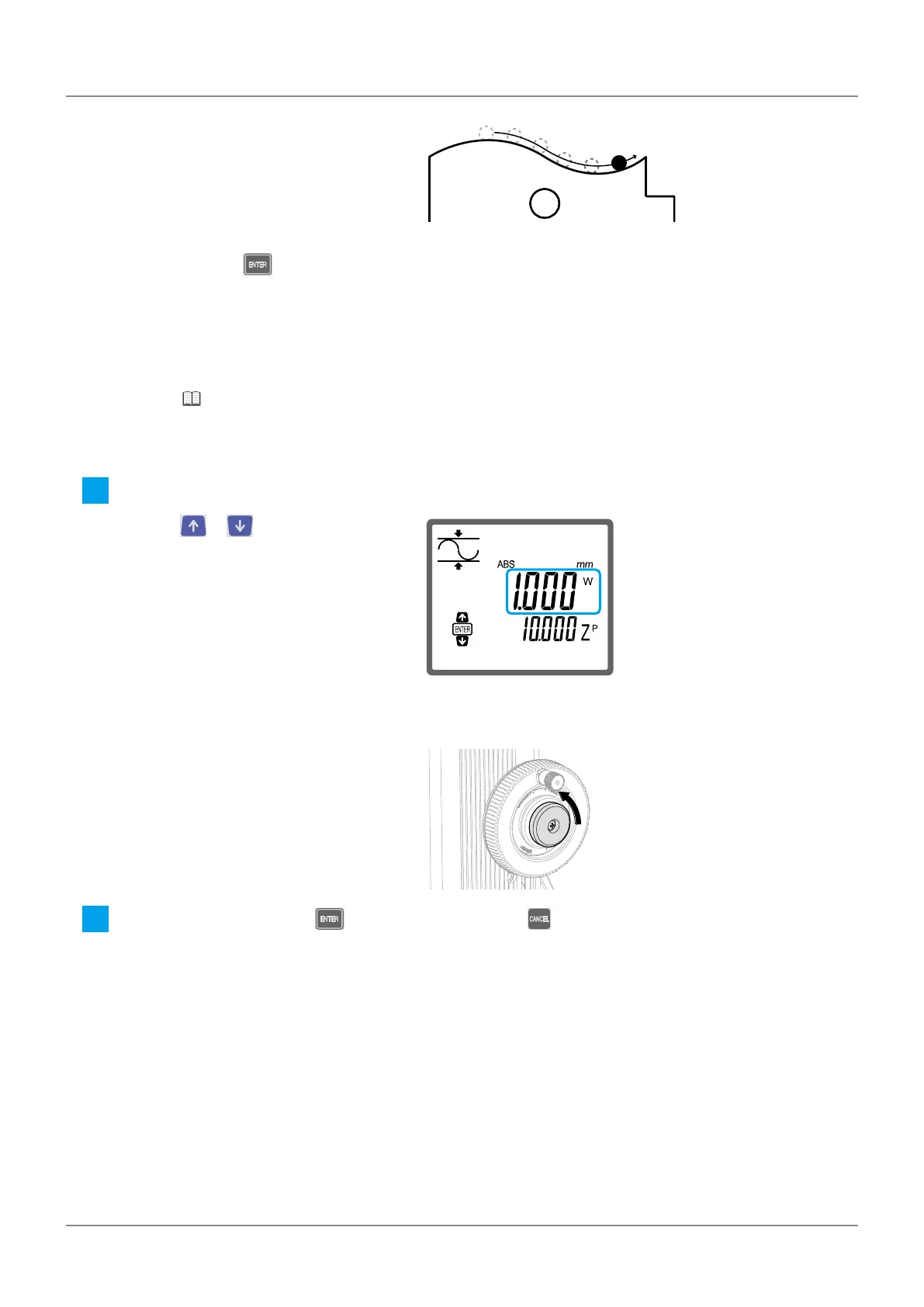

Move the probe while maintaining
contact with the surface of the workpiece.
»
The value displayed on the
LCD screen will change based
on the unevenness of the
workpiece.
4
When the displayed value stops
changing, press .
»
The measurement is complete.
Tips
If the product is connected
to any external devices, the
measurement results will be
automatically output. For details,
"3.9 Outputting Measurement
Results to an External Device"
(page 47)
3
Check the measurement result.
1
Press or .
»
With each key press, the value
displayed on the LCD screen will
change among displacement (W),
minimum (ZS), maximum (ZL).
Tips
The difference between the
median displacement value and
the previous measurement will be
displayed in the bottom row of the
LCD screen.
2
If you have tightened the clamp screw,
loosen it.
4
To continue measuring press ; to finish measuring press .
