2 Basic Measuring Methods
No. 99MAF600B
3 Move the ball left or right so that it pass-
es the center of the bottom surface of
the cylinder. Perform this action until a
beep sound is made.
» The measurement of the low-
est point is complete, and
will be displayed on the upper
left of the LCD screen.
4 If you have tightened the clamp screw,
loosen it.
If the scanning measurement termination method is set to [ENTER] (manual termination)

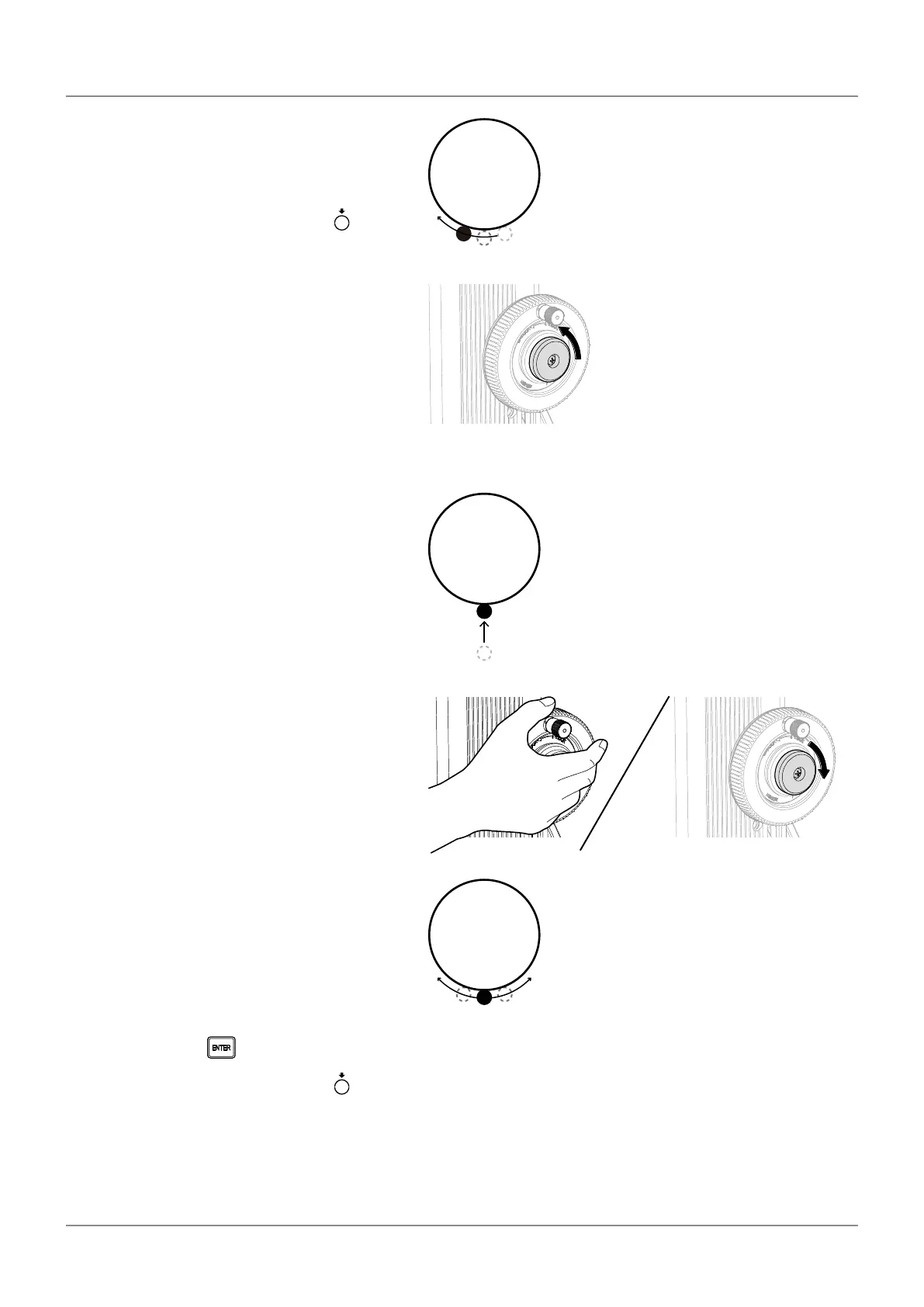

1 Face the ball of the probe towards the
center of the bottom surface of the cylin-
der, and slowly bring it into contact with
the surface until a beep sound is made.
Maintain contact with the ball.
» [0.000] will be displayed on the
LCD screen.
2 Secure the probe up/down wheel with
your hand or the clamp screw in order to
prevent it from moving.
3 Repeatedly move the ball left and right.
» The value displayed on the
LCD screen will change based
on the vertical movement of
the ball.
4 When the displayed value stops chang-
ing, press .
» The measurement of the low-
est point is complete, and
will be displayed on the upper
left of the LCD screen.
