2 Basic Measuring Methods
No. 99MAF600B
5 If you have tightened the clamp screw,
loosen it.
3

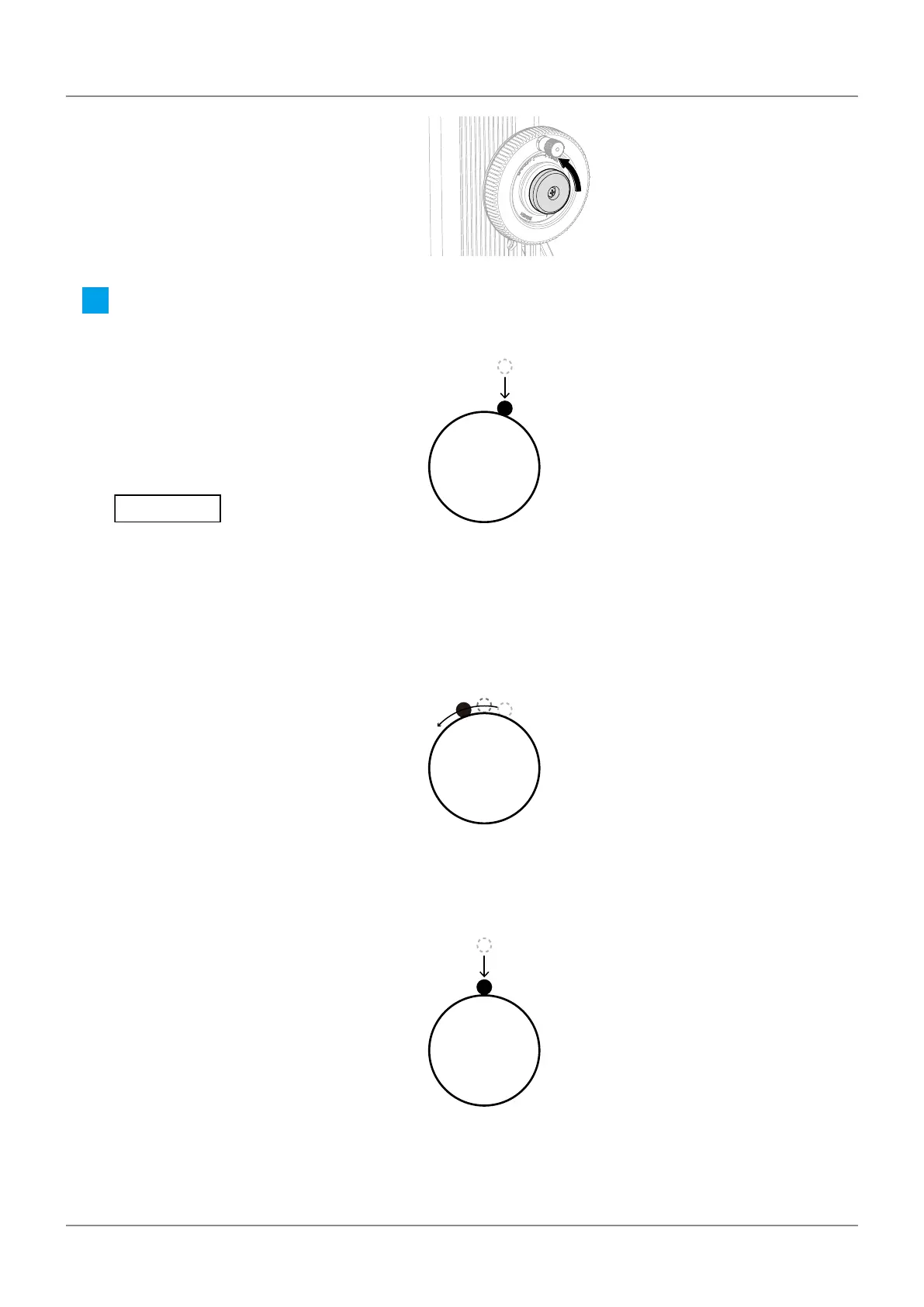

Obtain the highest point of the cylinder.
If the scanning measurement termination method is set to [Auto] (automatic termination)
1 Face the ball towards the left or right of
the center top surface of the cylinder,
and slowly bring it into contact with the
surface until a beep sound is made.
Maintain contact with the ball.
» [0.000] will be displayed on the
LCD screen.
Bring the ball into contact within 0.5 mm of
the highest point. Measuring with a wider
range may increase measurement errors.
2 Secure the probe up/down wheel with
your hand or the clamp screw in order to
prevent it from moving.
3 Move the ball left or right so that it pass-
es the center of the top surface of the
cylinder. Perform this action until a beep
sound is made.
» The measurement of the high-
est point is complete.
4 If you have tightened the clamp screw,
loosen it.
If the scanning measurement termination method is set to [ENTER] (manual termination)
1 Face the ball towards the center of the
top surface of the cylinder, and slowly
bring it into contact with the surface until
a beep sound is made.
Maintain contact with the ball.
2 Secure the probe up/down wheel with
your hand or the clamp screw in order to
prevent it from moving.
