4. Position: latitude in degrees. South = negative
5. Switch on 0 – 600 min before sunrise (defines how many minutes before the
calculated sunrise time it has to be switched on).
6. Switch off 0 – 600 min after sunrise (defines how many minutes after the
calculated sunrise time it has to be switched off).
7. Switch on 0 – 600 min before sunset (defines how many minutes before the
calculated sunset time it has to be switched on).
8. Switch off 0 – 600 min after sunset (defines how many minutes after the calculated
sunset time it has to be switched off).
-1: With this value, the switch off time is delayed till the next sunrise the
illumination is switched on the whole night.
Actual state: shows if the switch function is on or off. The state change of the lines
(MOBALine and RS485) can be delayed up to 1 min.

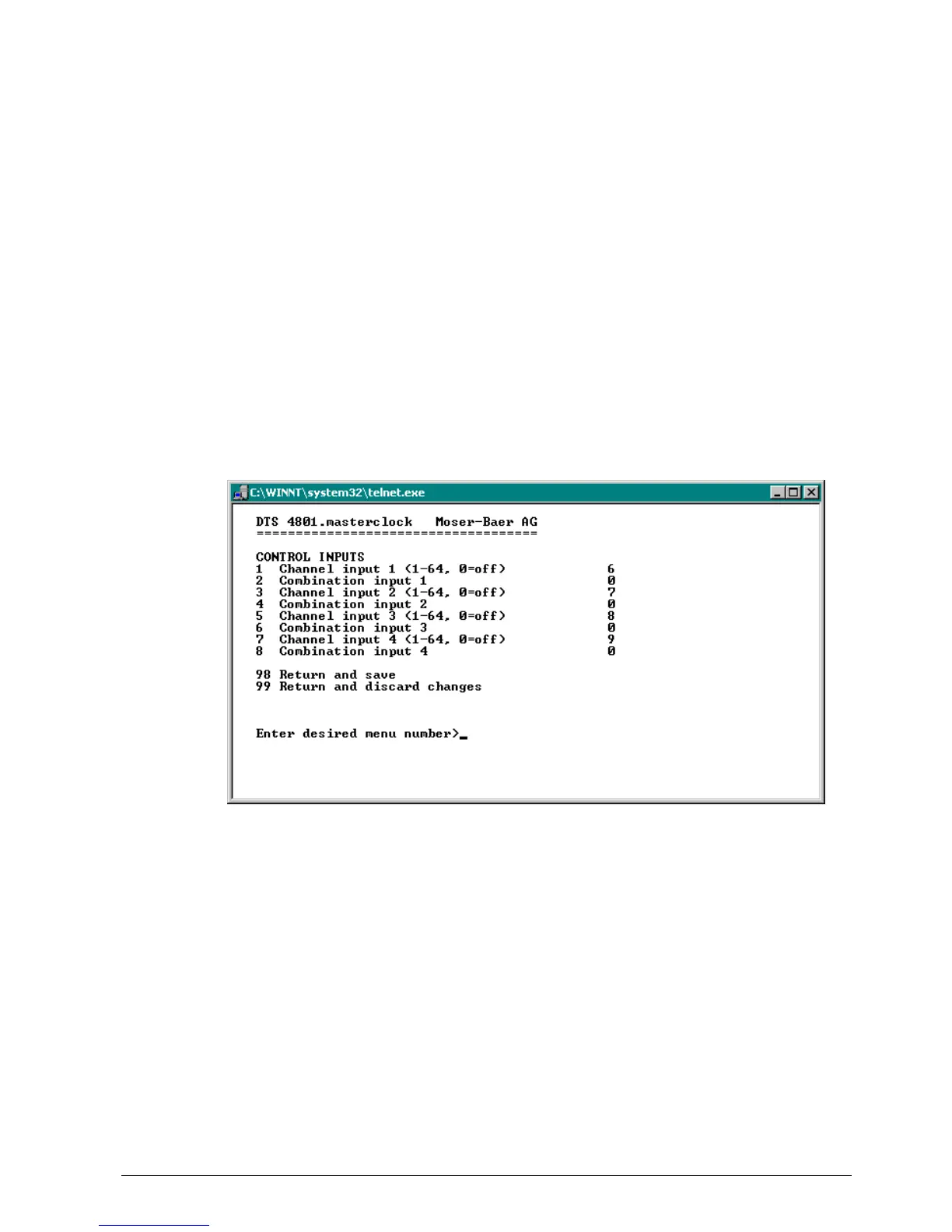

Control inputs:
Each of the 4 alarm inputs can be linked as control input or switch input to a channel
with AND, OR, or exclusive.
1. Channel Input 1: 0 = off, 1 – 64 = assigned channel.
2. Link Input 1: 0 = switch output exclusive (the switch programs are
hidden on this channel)
1= The switch input is linked to the switch program OR
2 = The switch input is linked to the switch program AND
3. Channel Input 2: 0 = off, 1 – 64 = assigned channel.
4. Link Input 2: see no. 2
5. Channel Input 3: 0 = off, 1 – 64 = assigned channel.
6. Link Input 3: see no. 2
7. Channel Input 4: 0 = off, 1 – 64 = assigned channel.
8. Link Input 4: see no.
If an alarm input is used as switch input, it must be masked in all alarm masks.
In chapter “10 Description of switch function“ the set up and dependency of the switch
functions are described.
