74
Q26 Camera Manual: Installation
Note
Note on fastening cables leading in to the camera:
Cables passing in to the back of the camera (patch cable for the network connection and
ExtIO cable) are secured using a special cable retainer with bayonet catch.
When replacing this cable, ensure that the cable is properly seated in the connector and
that the retainer with the blue bayonet catch is locked (short clockwise turn until it clicks
into place).

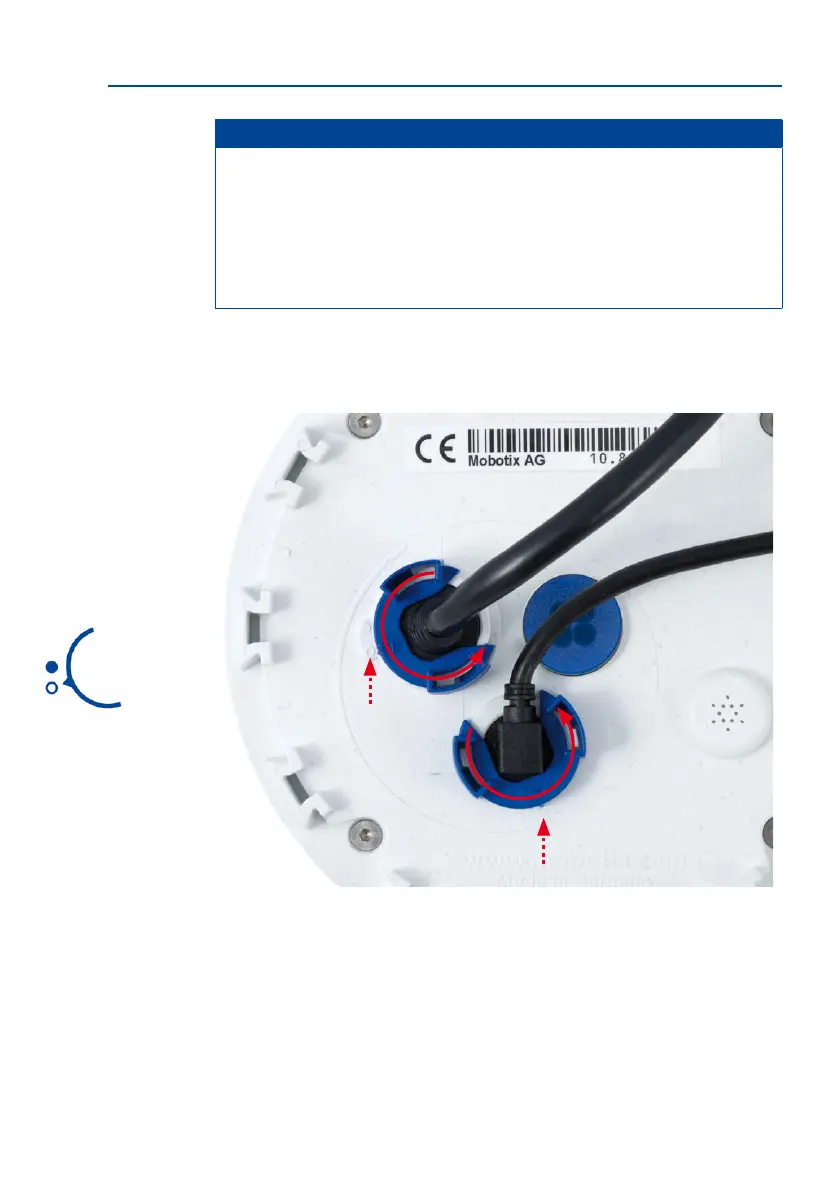

Removing the Cable Retainer
Rotate the bayonet catch anti-clockwise to the “open circle” symbol (see gure). The catch
may be removed from the side. The cable can now be pulled out of the camera.
Open the cable retainer by
rotating the bayonet catch
to the marked position
Bayonet catch open
