Description
0112-0127 B 27
Optical System
The optical system includes a xenon flash lamp, monochromators,
excitation bandpass filters, emission cut-off filters, PMTs, and
photodiodes.
There are a number of cables and fibers that exit the optics bench and
enter the reading chamber. They are the excitation fibers (thin and black
or red, has a collar and pins), emission fibers (black and fatter, with
attached electrical cord), electrical connector to the read head (green
with brass fitting).

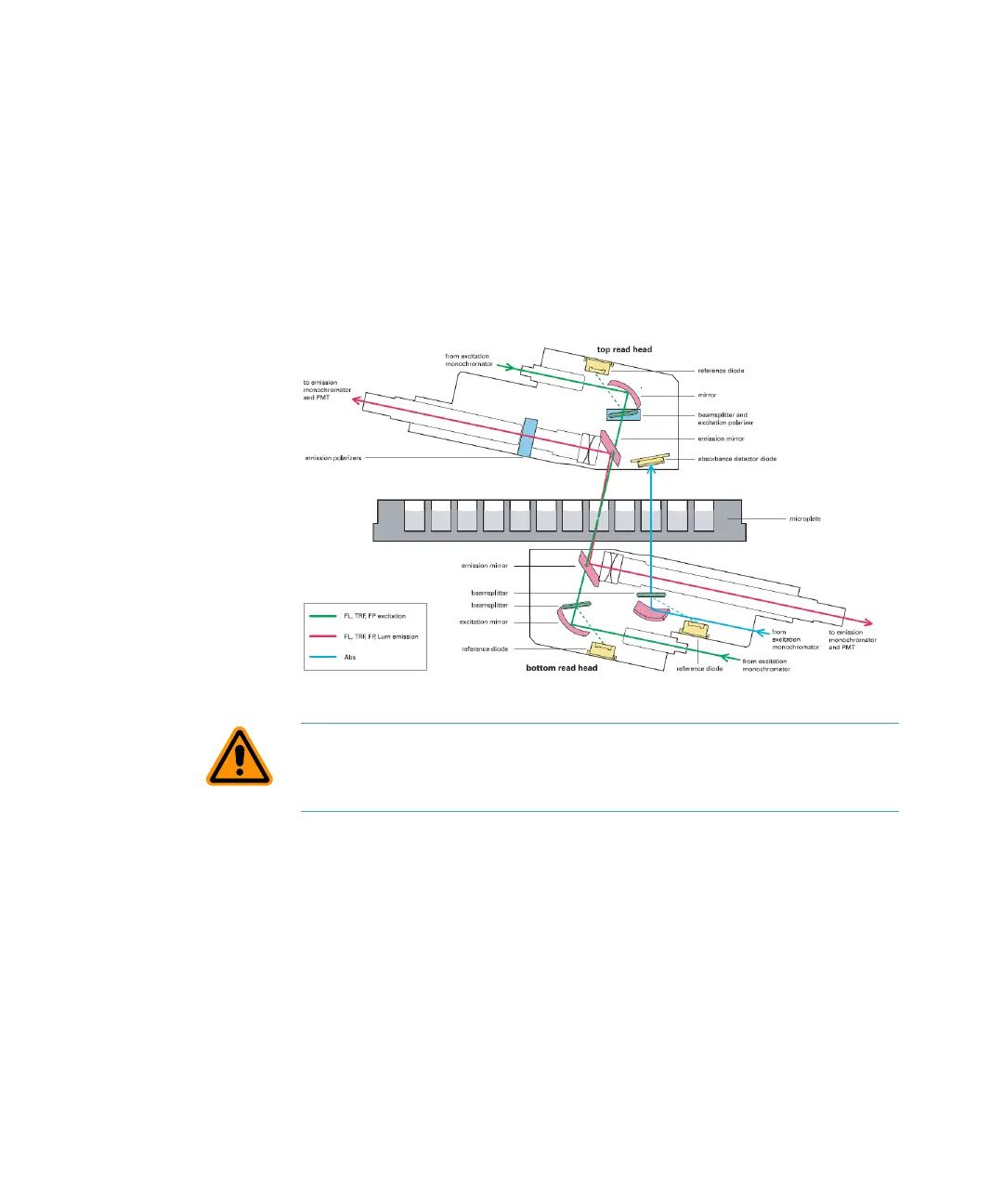

Figure 1-16: Optical System
CAUTION! Optical fibers are very fragile, especially the excitation fiber.
Handle cables with extreme care. Do not flex, twist, bend, or stretch the
optical cables.
FlexStation_manual.book Page 27 Tuesday, June 25, 2013 10:22 AM
