Surface Components
Control Panel
It is necessary to remove the control panel from the
range chassis and place it in the service position to
access certain components.

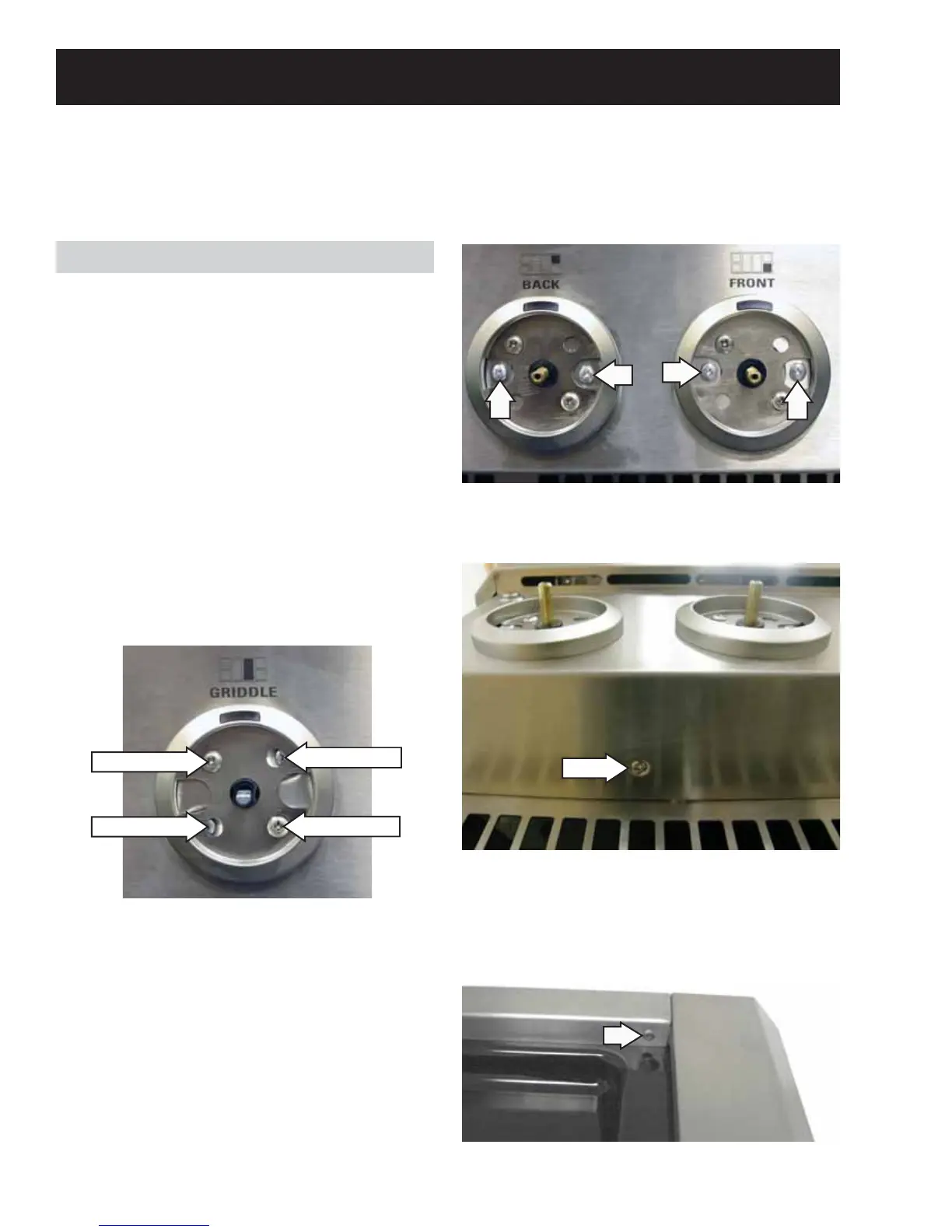

To place the control panel in the service position:
Note: It will be necessary to pull the range
approximately 10 inches out from its installation.
1. Remove left and right side grates, surface
burner knobs, grill and griddle control knobs.
2. Remove the 2 Phillips-head screws that attach
the griddle control bezel to the control panel.
3. Remove the 2 Phillips-head screws that attach
the griddle control to the manifold bracket.
6. Remove the T-15 Torx screw at each front
corner that attaches the front of the side trim to
the control panel.
4. Remove the 2 Phillips-head screws within
each bezel that attach the control panel to the
manifold brackets.
Bezel Screw
Bezel Screw
Control Screw
Control Screw
5. Remove the four T-15 Torx screws from the
bottom of the control panel.
WARNING: Sharp edges may be exposed when
servicing. Use caution to avoid injury. Wear Kevlar
gloves or equivalent protection.
(Continued next page)
Right Side Shown
Bottom Left Side Shown
