– 42 –

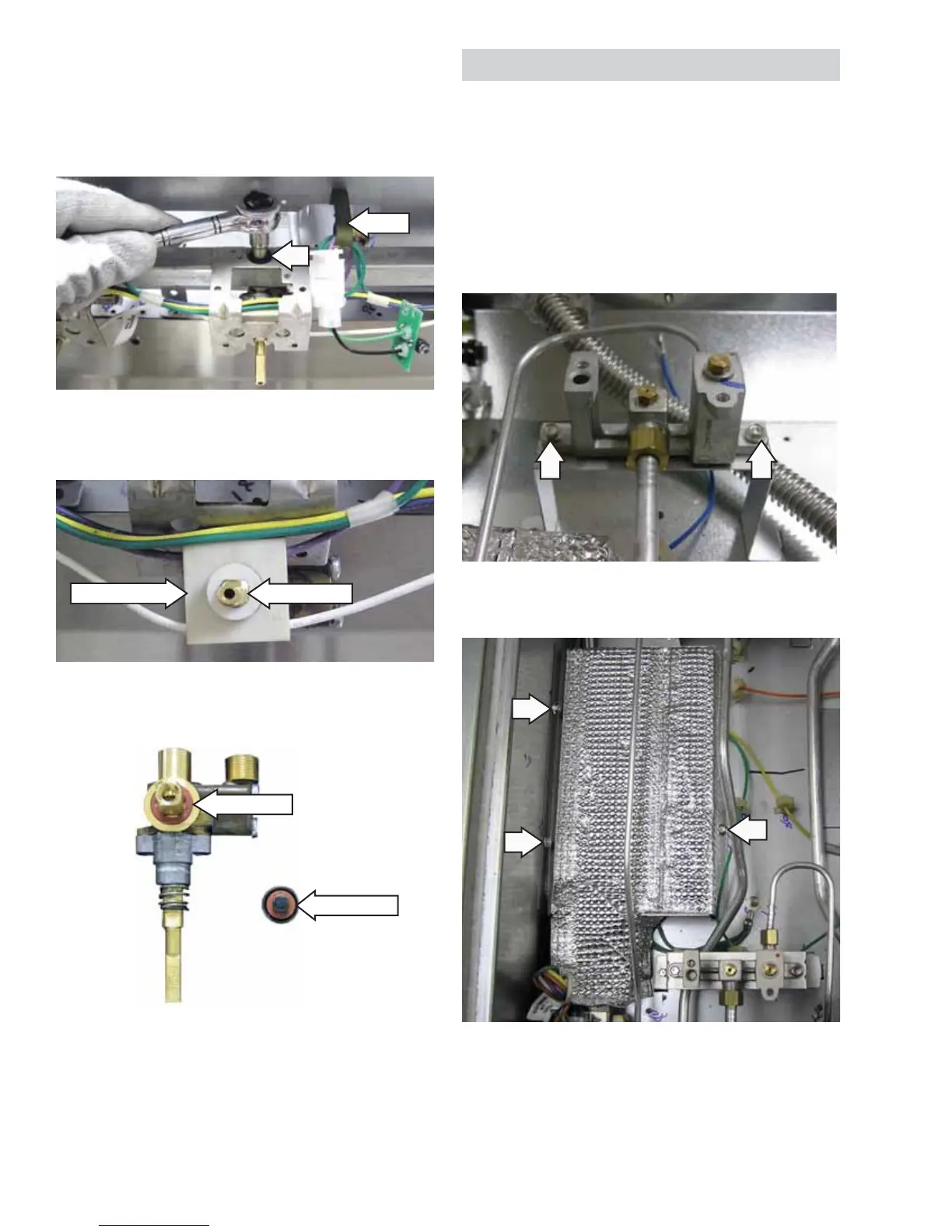

5. Slide down and remove the wiring retainer clip
from the frame.
6. Using a ratchet wrench, remove the 1/4-in.
hex-head screw that attaches the valve to the
manifold.
7. Maneuver the valve below the bracket and slide
the valve switch from the valve stem.
Caution: Ensure the valve seal and the screw seal
are in place BEFORE installing the valve.
Screw Seal
Valve Seal
Clip
Valve Switch
Valve Stem
Note: The bottom of each switch is molded to
conform to the front of the valve for a locked-in fi t.
For proper igniter operation, each switch must be
locked-in to the top of the valve. When installing
the switch, align each switch to the valve stem and
body. Push the switch down fi rmly until an audible
"snap" is detected.
Spark Module
The spark module is located under the left-side
surface burner pan.
To remove the spark module:
1. Remove the left-side surface burner pan. (See
Surface Burner Pan.)
2. Remove the two 1/4-in. hex-head screws that
attach the left rear burner to the burner bracket.
3. Remove the three 1/4-in. hex-head screws that
attach the module cover to the burner box.
(Continued next page)
