– 44 –

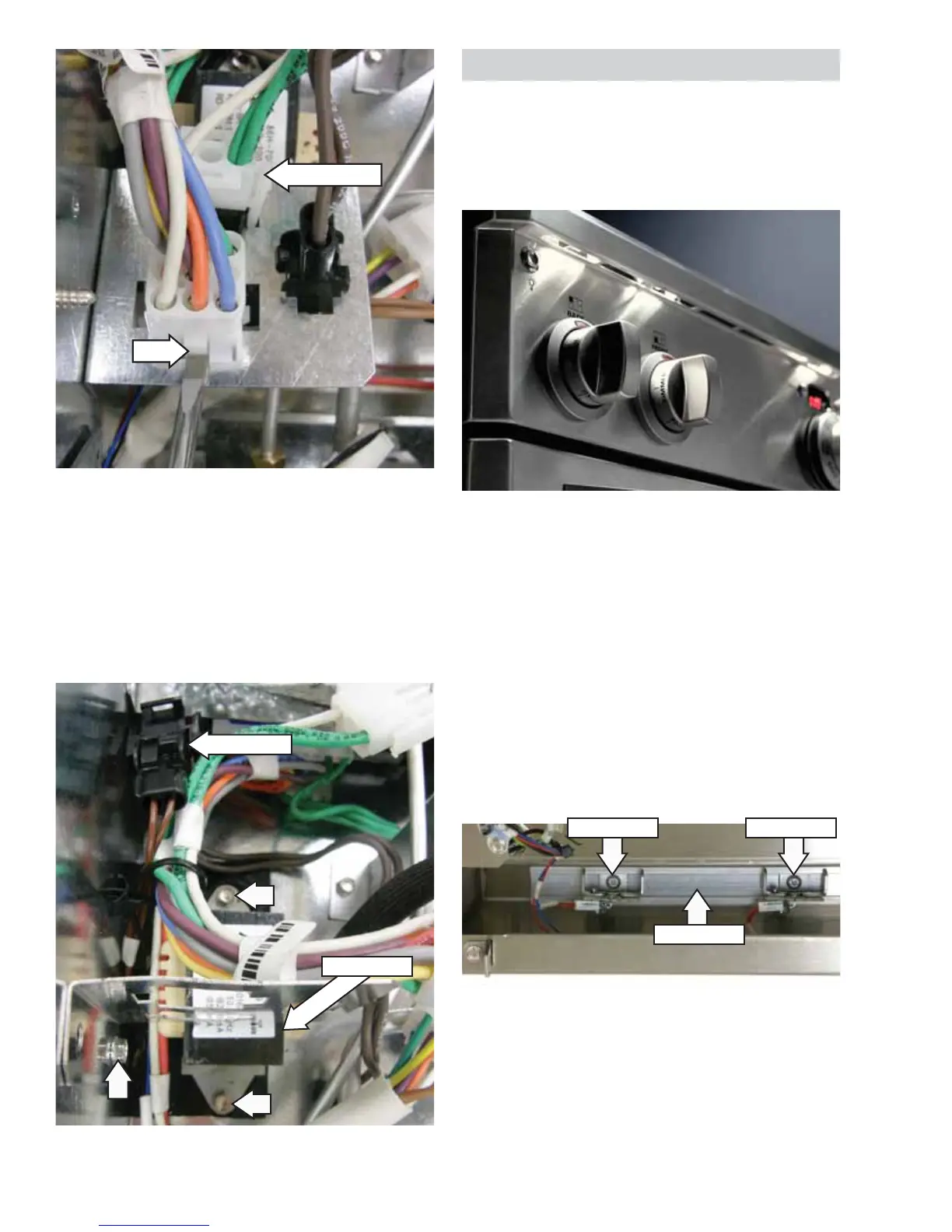

LED Lights and Power Supply
The LED lights (task lighting) are located inside the
control panel and are positioned to provide light
over each bezel when activated by the task light
switch.
Each light is an assembly that consists of an LED
and circuit board attached to a metal bracket
with a Phillips-head screw. Each bracket is placed
into a channel inside the top of the control panel.
Loosening the bracket setscrew allows the
assembly to slide along the channel in order to be
removed or positioned directly over each bezel.
The
circuit boards are wired in series to a light
harness
and are replaced as one unit.
If one light assembly
fails or a wiring connection is loose, all LEDs will be
out.
Note: When replacing task lighting, make sure each
light is centered over each bezel before installing the
control panel.
LEDs Activated
(Continued next page)
Disconnect
Tab
7. Remove the bottom screw from the harness
bracket.
8. Remove the two 1/4-in. hex-head screws that
attach the transformer to the burner box.
Note: If necessary, pry transformer out of gasket
with fl at blade screwdriver.
9. Disconnect the primary wire harness.
Transformer
Disconnect
Channel
Set Screw Set Screw
To Next Page
