– 65 –

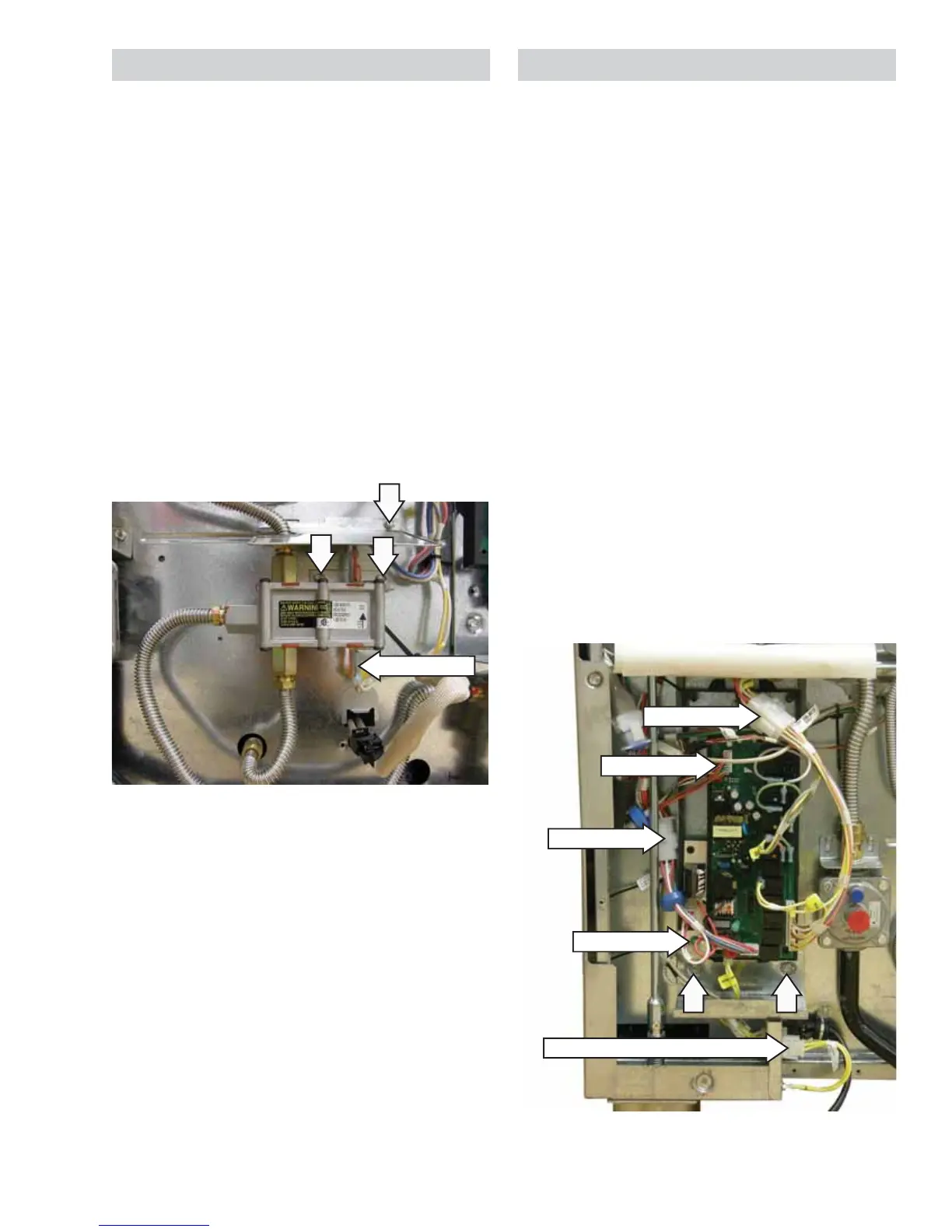

Main Oven Relay Board
The relay board is located on the range back. It can
be accessed for testing by removing the trap door.
(See Oven Relay Board Accass.) The back panel will
need to be removed in order to replace the relay
board.
To remove the main oven relay board:
1. Remove the back panel. (See Back Panel.)
2. Disconnect two power supply wire harness
connectors and remove connectors from
support bracket.
3. Remove two connectors from relay board and
disconnect two wire harnesses.
4. Remove green ground screw and wire from
relay board assembly.
5. Remove two 1/4-in. hex-head screws, then slide
the relay board assembly up to remove tabs
from cutouts.
Note: There is an insulator between the relay
board assembly and the range cavity. Make sure to
replace correctly.
Disconnect
Disconnect
Ground Screw
Disconnect Power Supply Harness
Disconnect
Oven Safety Valve
The oven safety valve is located on the back of the
range behind the back panel.
Note: See Oven Burner Ignition System for important
information about the safety valve.
To remove the oven safety valve:
1. Remove the back panel. (See Back Panel.)
2. Remove 1/4-in. hex-head screw and valve cover
from range.
3. Remove four wires from safety valve.
4. Remove three 9/16-in. fl ex tubes from safety
valve.
5. Remove two 1/4-in. hex-head screws and safety
valve from range.
Disconnect
