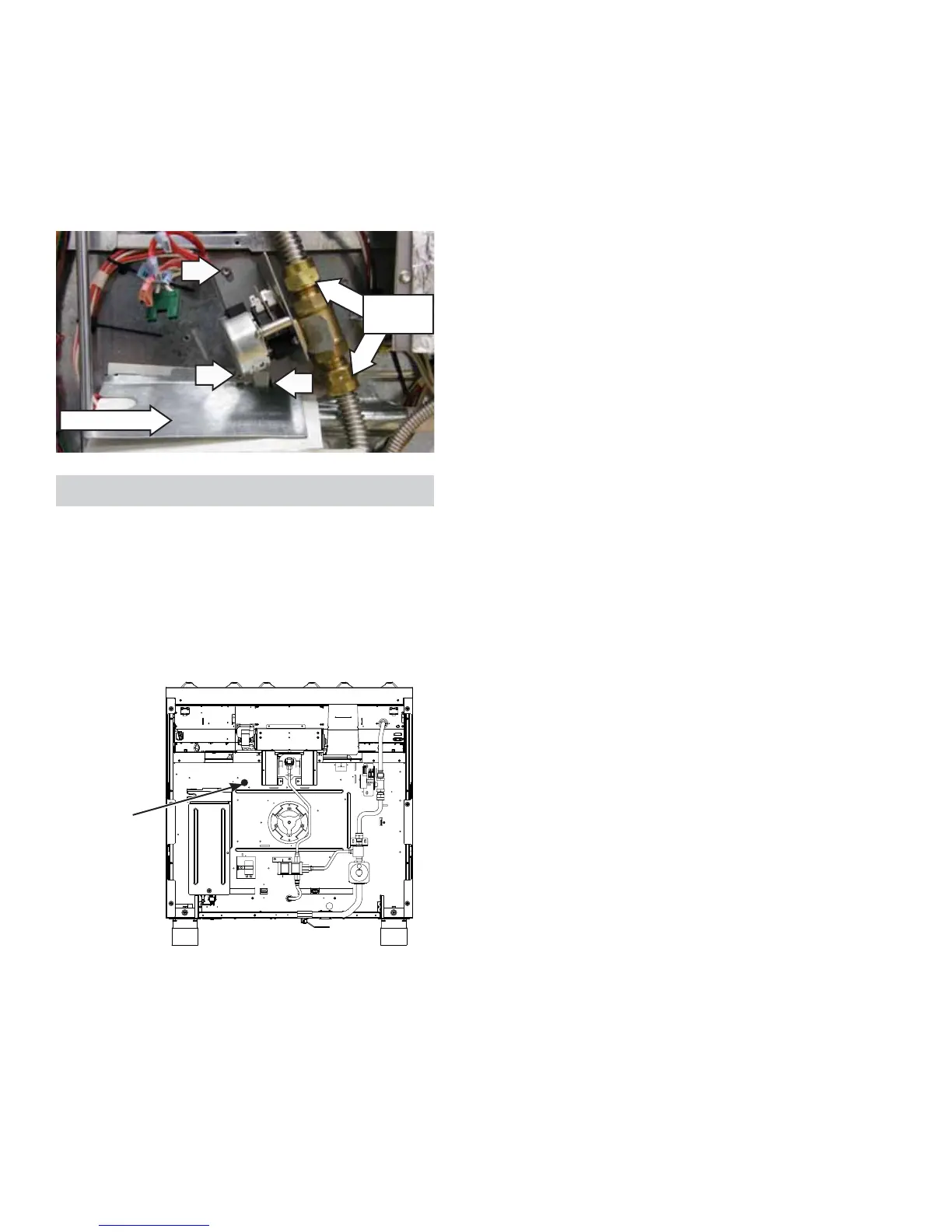

3. Remove 1/4-in. hex-head screw and relay board
cover from range.
4. Remove two 7/8-in. fl ex tubes from lockout
valve.
5. Remove two 1/4-in. hex-head screws and
lockout valve from range.
Relay Cover
7/8-in.
Flex Tube
High Limit Thermal Switch (ZGP304 Only)
This switch is located above and to the side of the
convection fan motor. The range back must be
removed to access the switch (see
Back Panel). The
high limit thermal switch is wired in series with L1.
This switch is used to protect against oven runaway.
If this switch is tripped, the oven will not work for
any operation.
Range
High Limit
Thermal
Switch
