– 66 –

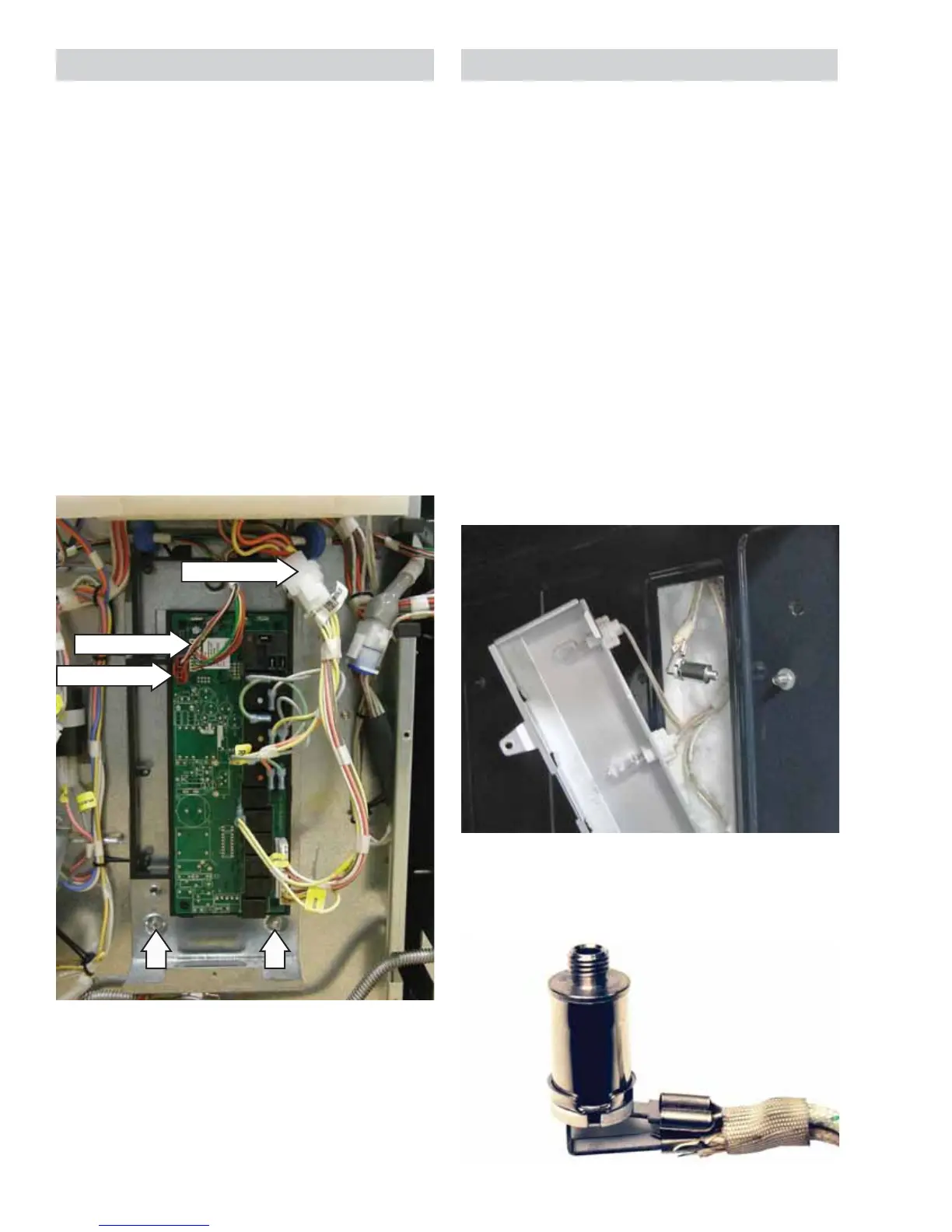

Meat Probe Receptacle and Harness
Each oven is equipped with a meat probe receptacle
and harness. The probe outlet is located near the
top right front corner of the oven cavity on 30- and
36-in models, and on the right side of the main oven
and the left side of the companion oven on 48-in
models. The meat probe outlet is connected to the
logic board in the control compartment with the
harness. The meat probe has a resistance value of
30K-50K at room temperature.
To remove the meat probe receptacle:
1. Separate the light housing from the oven liner
on the probe side of the oven cavity. (See Oven
Light Assemblies.)
2. Remove the 3/8-in. hex-head nut that holds the
meat probe outlet to the inside of the oven.
3. Pull the meat probe receptacle out of the oven
liner.
4. Note the location of each wire, then disconnect
the wires from the meat probe receptacle.
Companion Oven Relay Board
The relay board is located on the range back. It can
be accessed for testing by removing the trap door.
(See Oven Relay Board Accass.) The back panel will
need to be removed in order to replace the relay
board.
To remove the companion oven relay board:
1. Remove the back panel. (See Back Panel.)
2. Remove two connectors from relay board and
disconnect wire harness.
3. Remove two 1/4-in. hex-head screws, then slide
the relay board assembly up to remove tabs
from cutouts.
Note: There is an insulator between the relay
board assembly and the range cavity. Make sure to
replace correctly.
Disconnect
Disconnect
Disconnect
(Continued next page)
