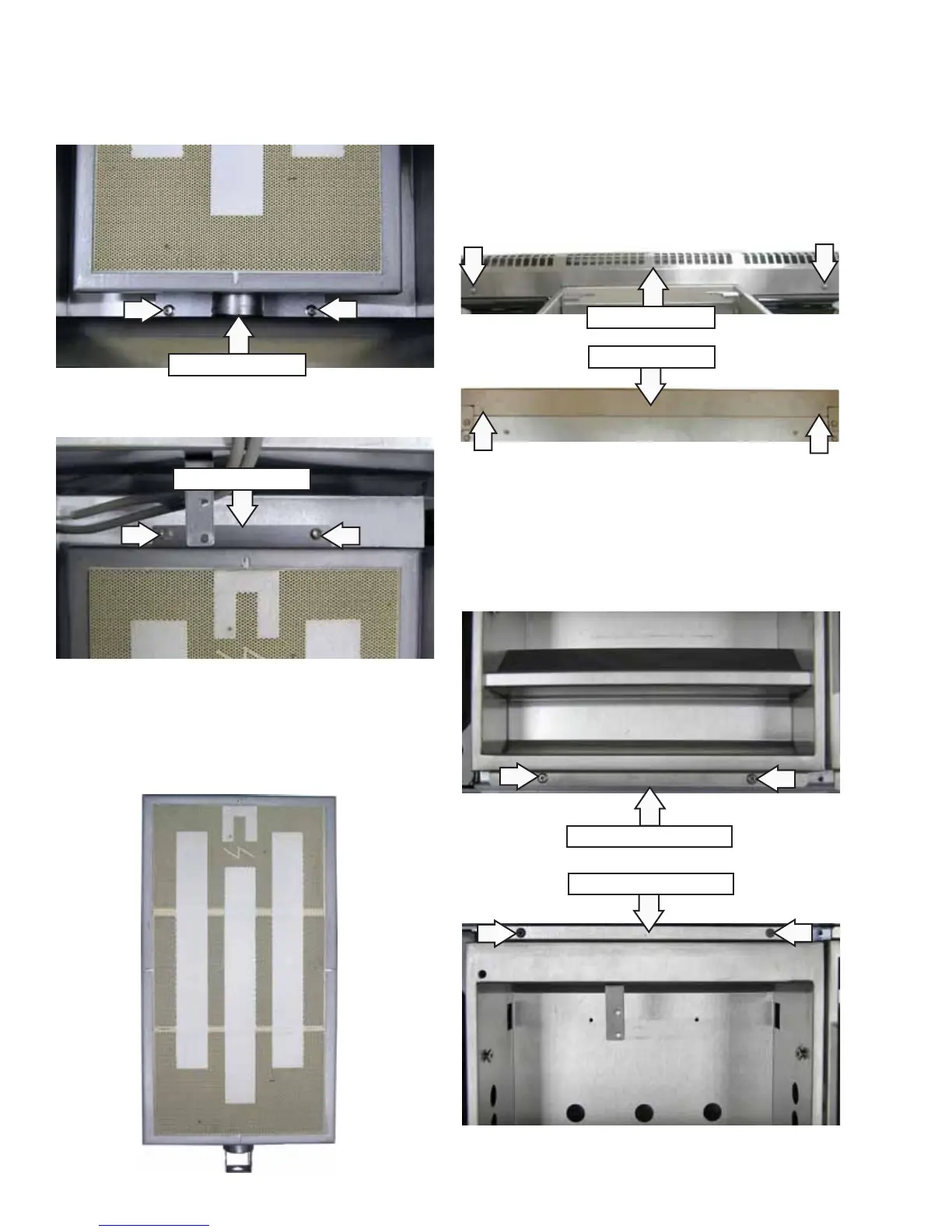

13. Lift up and remove the grill burner box.
8. Remove the grill burner igniter. (See Grill Burner
Igniter.)
9. Place the control panel in the service position.
(See Control Panel.)
10. Remove 2 Phillips-head screws from the front
and 2 Phillips-head screws from the rear of the
back vent covering.
Front of Grill Burner Box
Rear of Grill Burner Box
6. Remove the two 1/4-in. hex-head screws from
the front and the two 1/4-in. hex-head screws
from the rear of the grill burner.
7. Lift up and maneuver the grill burner past the
igniter bracket.
Front of Grill Burner
Rear of Grill Burner
Grill Burner Removed
11. Remove the 2 Phillips-head screws and the
center trim, if applicable.
12. Remove the 2 Phillips-head screws from the
front and the 2 Phillips-head screws from the
rear of the grill burner box.
Front of Back Vent
Rear of Back Vent
