Oven Broil Burner
Main Oven

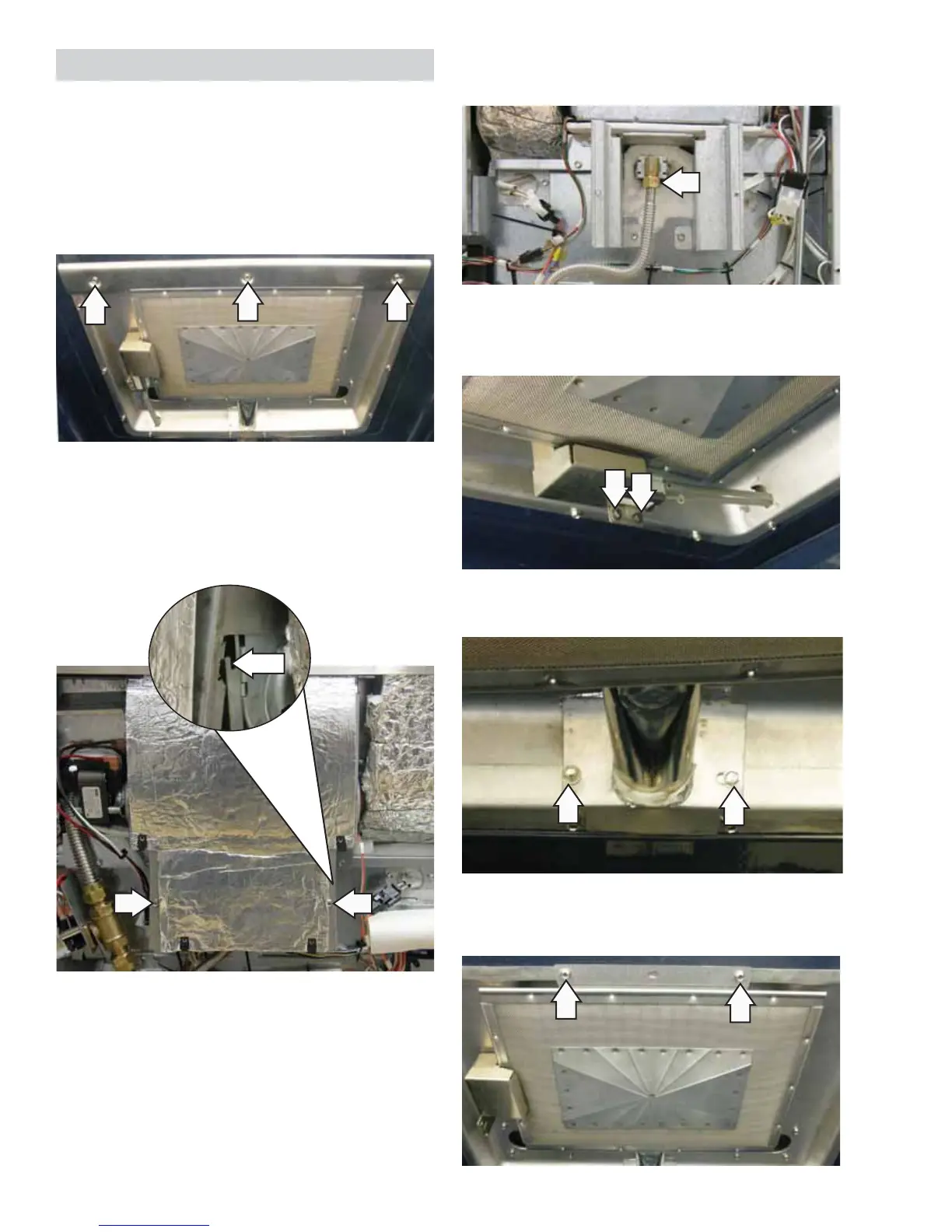

To remove the main oven broil burner:
1. Remove the oven door.
2. Remove the three 1/4-in. hex-head screws from
the broil cover.
6. Inside the oven cavity, remove the two 1/4-in.
hex-head screws that secure the glowbar ignitor
to the broiler.
7. Remove the two 1/4-in. hex-head screws from
the rear broil bracket.
8. Remove the two 1/4-in. hex-head screws from
the broiler and carefully pull it out of the oven.
5. Loosen the 5/8-in. hex-nut and remove the fl ex tube
from the broil orifi ce holder.
(Continued next page)
3. Remove the back panel from the range. (See
Back Panel.)
4. Remove two 1/4-in. screws that attach cover to
the range, then lift the cover from tabs on each
side.
Tab
