Oven Sensor and Door Switch Test
Note: See Lock Assembly for door switch function explanation.
1. Remove power from oven.
2. Make the resistance measurement from the side of the sensor and lock switch connector with the
exposed terminals.
3. If abnormal reading is observed, wiggle leads at disconnect block. If any variation, replace.
MAIN AND COMPANION OVENS

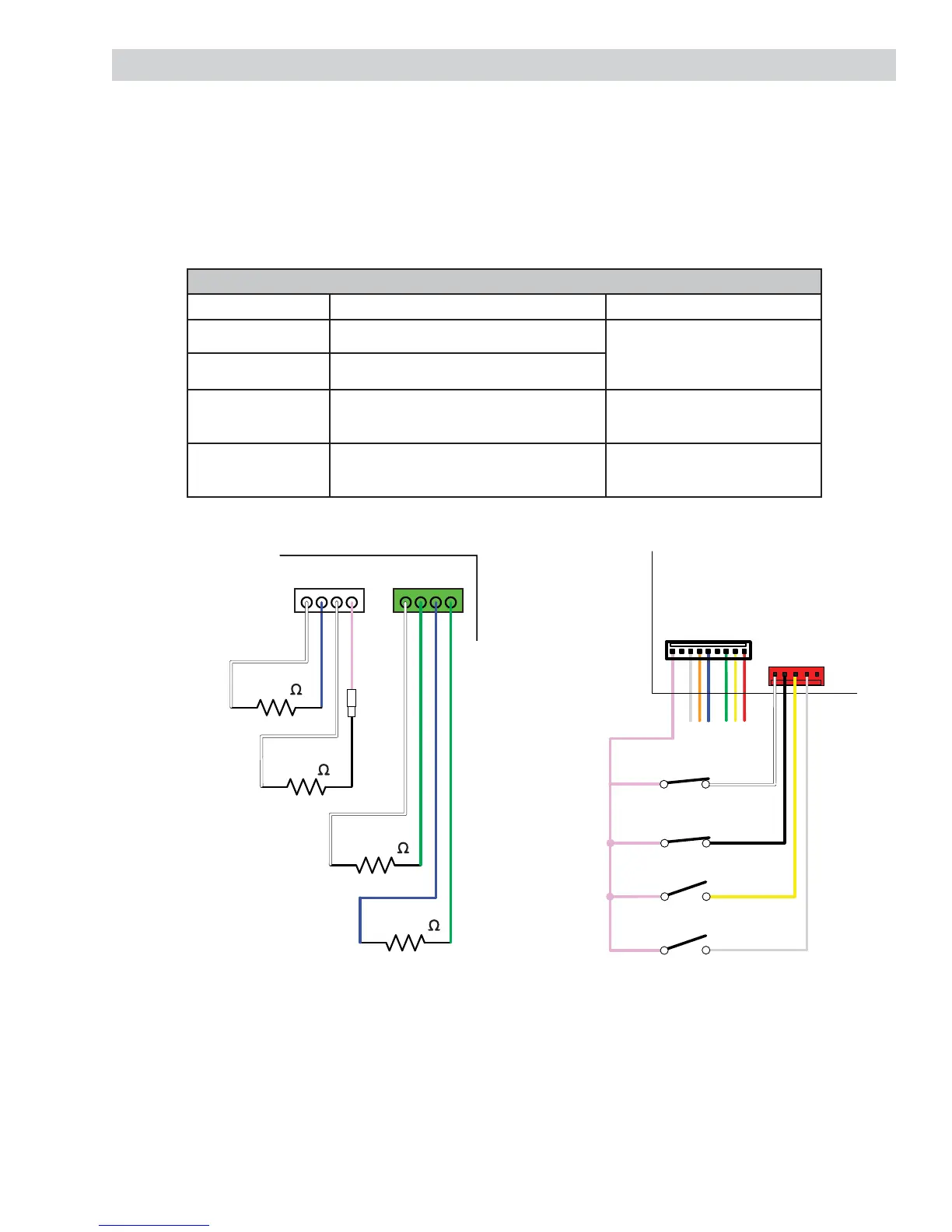

Circuit Terminals Ohms
Oven Sensor A Main Logic Board J5, pin 1 to pin 2 1091  @ Rm. Temp.
1654 @ 350°F
2634 @ 865°F
Oven Sensor B Main Logic Board J5, pin 3 to pin 4
Door Latched Relay board J17 pin 1 to J16 pin 3
Relay board J17 pin 1 to J16 pin 4
0 
Open
Door Unlatched Relay board J17 pin 1 to J16 pin 4
Relay board J17 pin 1 to J16 pin 3
0 
Open
Large Oven
Small Oven
Large Oven
Small Oven
