– 43 –

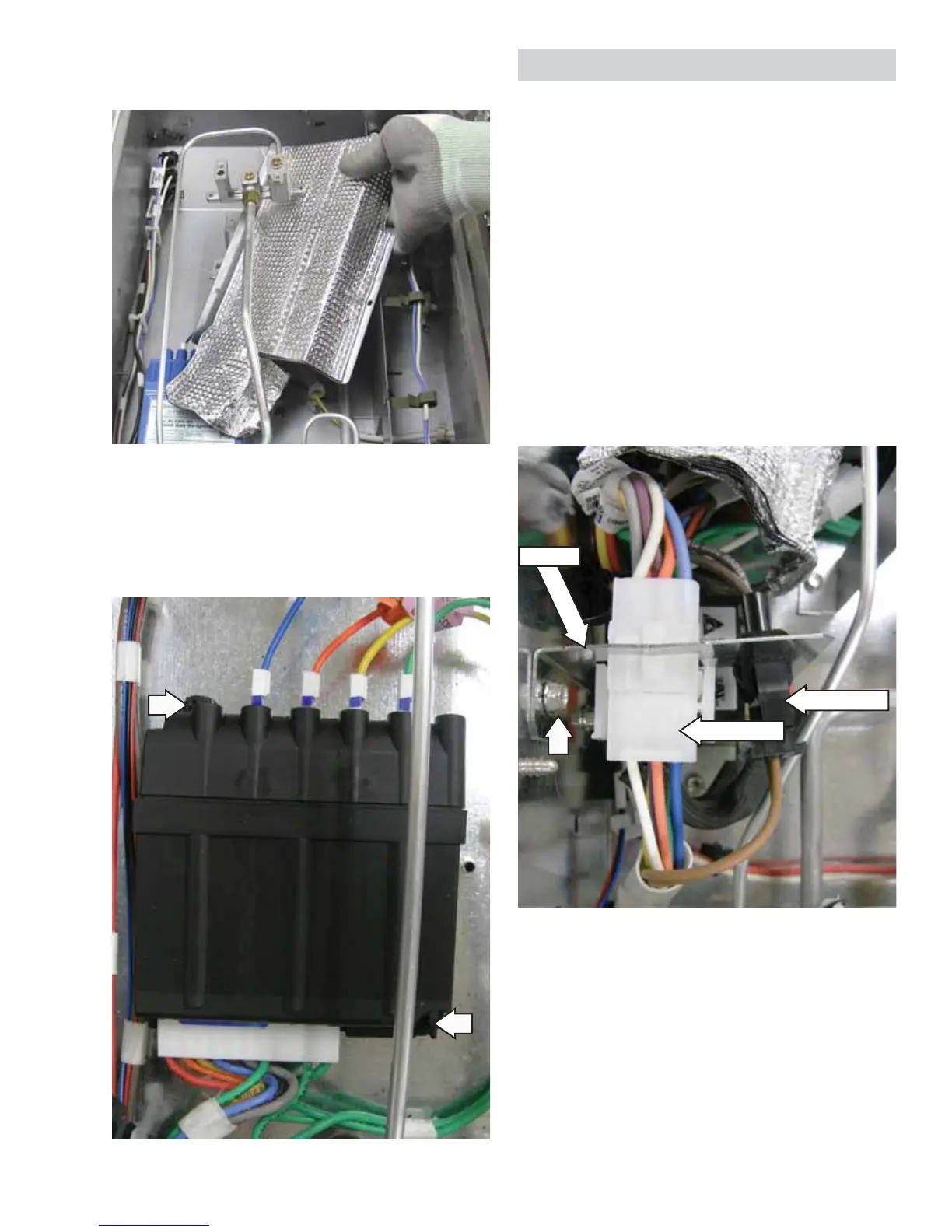

4. Lift the left rear burner and maneuver the
module cover out of the burner box.
5. Remove the 2 Phillips-head screws that attach
the module to the burner box.
6. Mark and disconnect the igniter wires and
disconnect the wire harness from the spark
module.
Transformer
The transformer is located under the left-side
surface burner pan. The transformer windings have
an approximate resistance value between:
Brown to brown (120 VAC primary) - 33 Ω
Brown to red (240 VAC secondary) - 188 Ω
To remove the transformer:
1. Remove the left-side surface burner pan. (See
Surface Burner Pan.)
2. Lift and peel back the front of the heat barrier to
expose the transformer's front mounting screw.
3. Disconnect 2 wire harnesses from the bracket.
4. Remove the top screw from the harness bracket.
5. Disconnect the third wiring connector from
the transformer harness that is retained in the
harness bracket.
6. Using a fl at blade screwdriver, push on the
2 tabs per connector to remove the 3 wiring
harnesses from the harness bracket.
Bracket
Disconnect
Disconnect
(Continued next page)
