Note: In the following step, ensure that the spring
clip is captured and retained inside the griddle
burner box.
6. Squeeze the ends of the spring clip and retract
the clip from the harness access cutout on the
right side of the griddle burner box.
7. Lift the burner and pull the igniter wiring and
harness connector through the opening.
8. Disconnect the igniter wire harness connector
and remove the two 1/4-in. hex-head igniter
screws.
10. Place the control panel in the service position.
(See Control Panel.)
11. Remove the 2 Phillips-head screws and the
center trim, if applicable.
12. Remove the 2 Phillips-head screws from the
front and the 2 Phillips-head screws from the
rear of the griddle burner box.

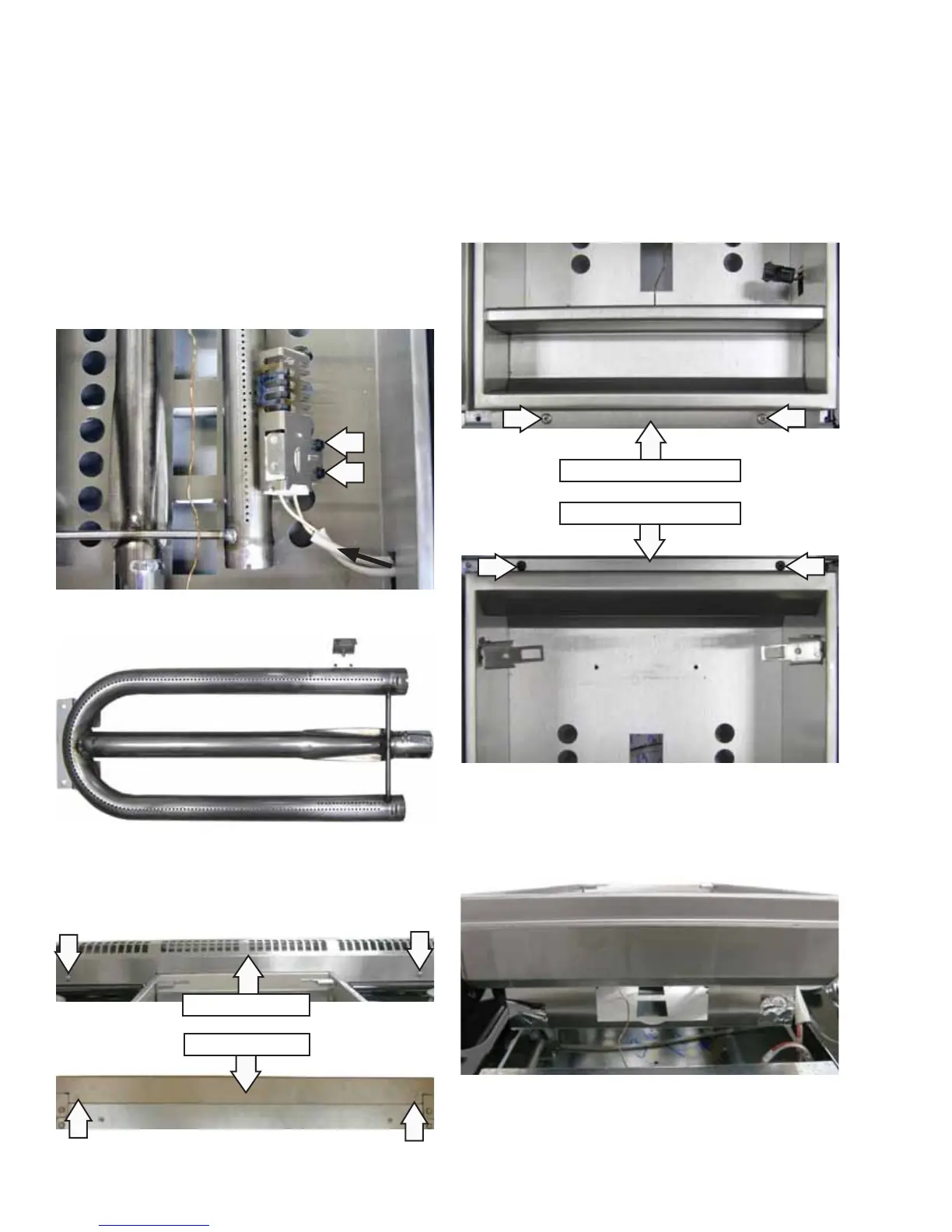

Griddle Burner Removed
Front of Griddle Burner Box
Rear of Griddle Burner Box
13. Lift the burner box while carefully guiding the
igniter wire harness connector and control
capillary through their openings.
Front of Back Vent
Rear of Back Vent
9. Remove 2 Phillips-head screws from the front
and 2 Phillips-head screws from the rear of the
back vent covering.
