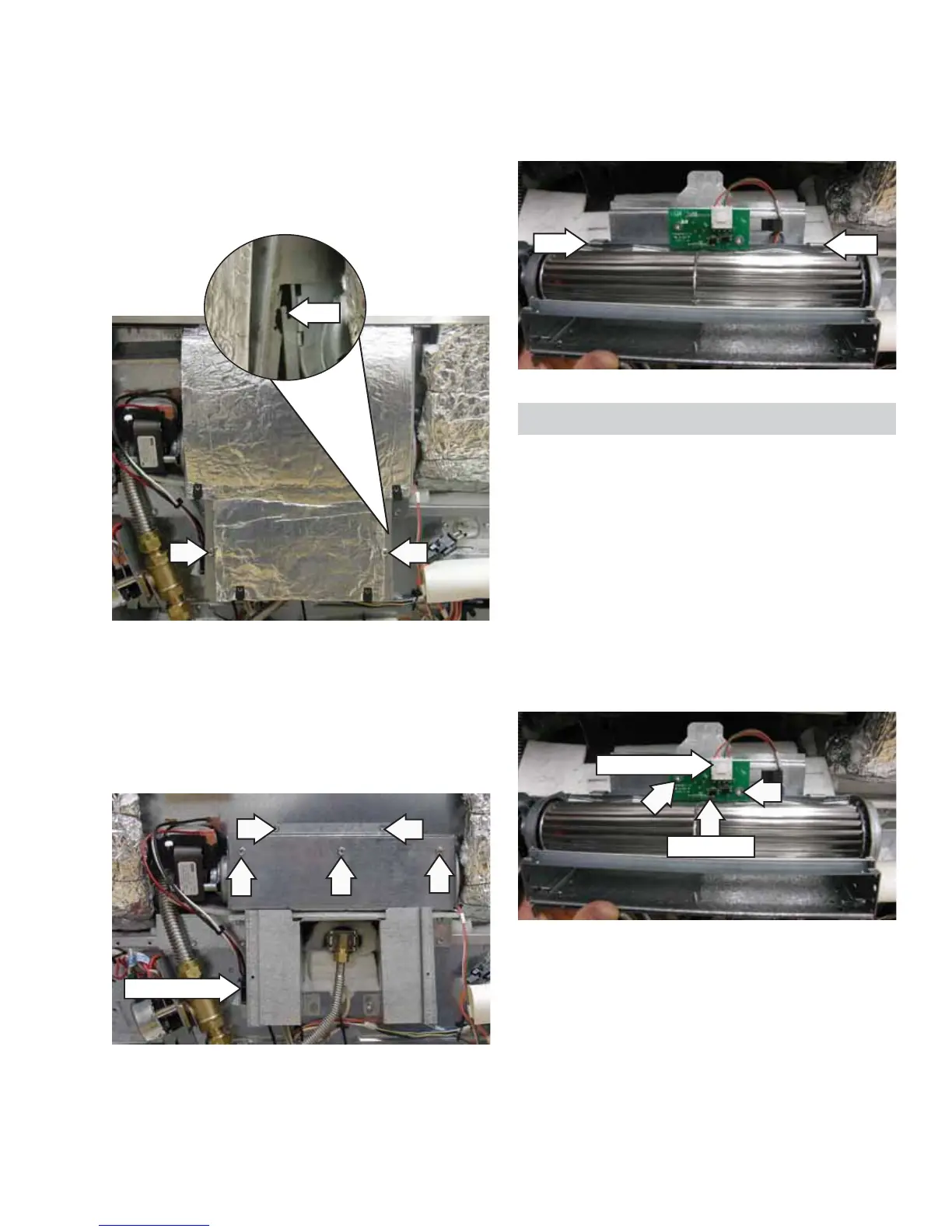

To remove the cooling fan:
1. Remove the back panel from the range. (See
Back Panel.)
2. Remove two 1/4-in. screws that attach the fan
cover to the range, then lift the cover from tabs
on each side.
3. Disconnect wire harness from cooling fan.
4. Remove three 1/4-in. screws that attach bracket
to the cooling fan.
5. Remove two 1/4-in. screws that attach bracket
to range, then slide bracket from tab on range.
Tab
Tab
Tab
Disconnect
Disconnect
Note: The tab that secures the cooling fan bracket
to the range is hidden.
6. Slide cooling fan to remove from tabs on
bracket.
Reed Switch
Reed Switch
The reed switch is located at the top rear of the
range, behind the cooling fan. This switch monitors
the presence of the airstream from the cooling fan.
If the fan malfunctions, the reed switch disables the
oven. To access the reed switch, remove the range
back, cooling fan duct, and the cooling fan. (See
Cooling Fan.)
To replace the reed switch, disconnect the harness
from the reed switch and remove the two T-15 Torx
screws that secure the reed switch to the cooling
fan bracket.
