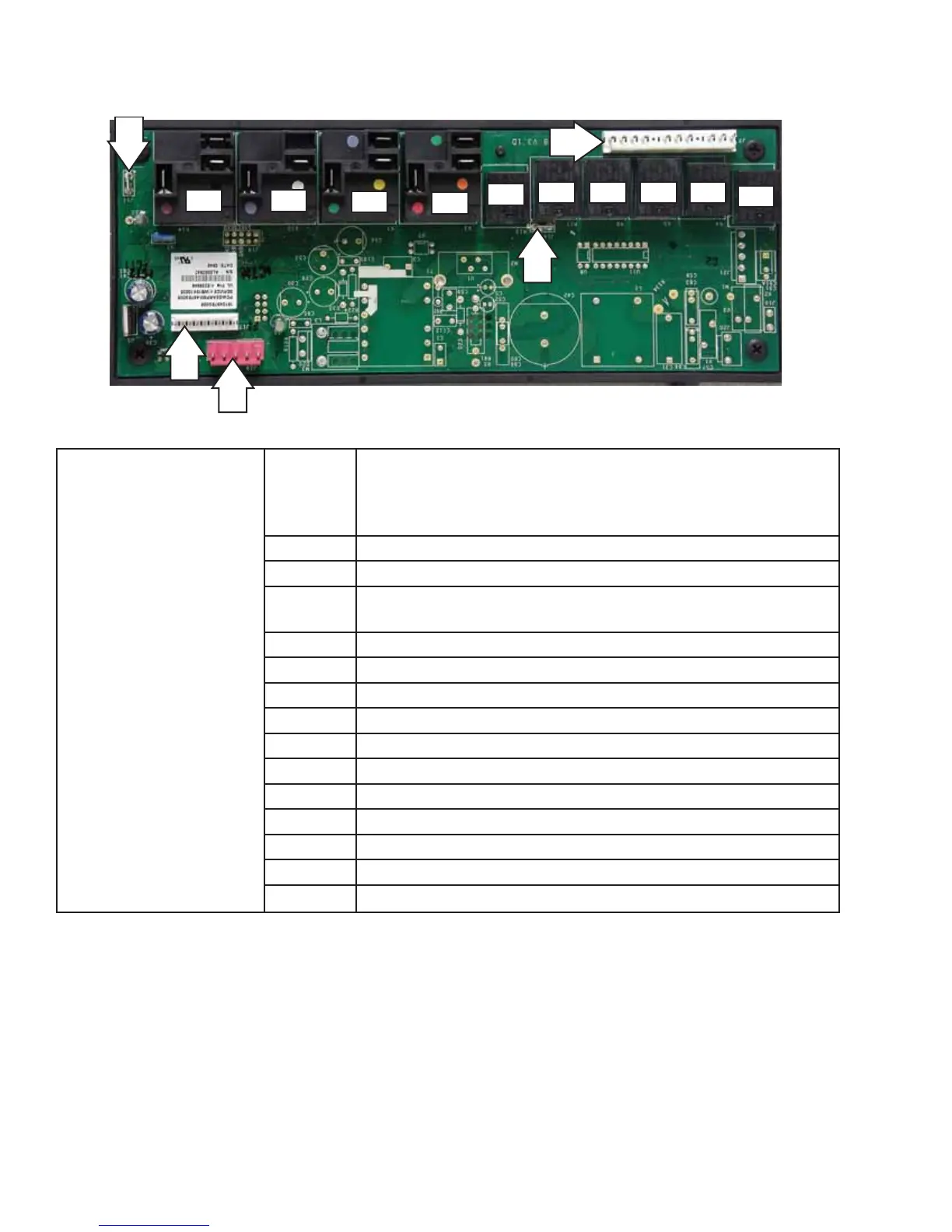

Companion Oven Relay Board
K14
K10
K13
K11
K1
K4K5K8
K7
K3
J14
J16
J17
J11
J7
Relay Power Supply
Module
J7 -1 - Latch Motor, -2 - Oven Lamp, -3 - Cooling Fan Low,
-4 - Cooling Fan High, -7 - Convection Fan (common),
-8 - Convection Fan On, -11 - Bake Ignitor (common),
-12 - Bake Ignitor
J11 Not Used
J14 L1
J16 Reed Switch, Door Unlock Switch, Door Lock Switch, Door Status
Switch
J17 LIN Connector
K1 Convection Fan Direction
K3 Broil Igniter Glow Bar, Safety Valve, K7
K4 Convection Fan On/Off
K5 Cooling Fan High Speed
K7 Bake Igniter Glow Bar and Safety Valve
K8 Cooling Fan Low Speed
K10 Lockout Valve
K11 Oven Lamp
K13 Door Lock Motor
K14 Not Used
