Moog Infinity User Manual

Innity
®
Enteral Feeding Pump Operator’s Manual
6

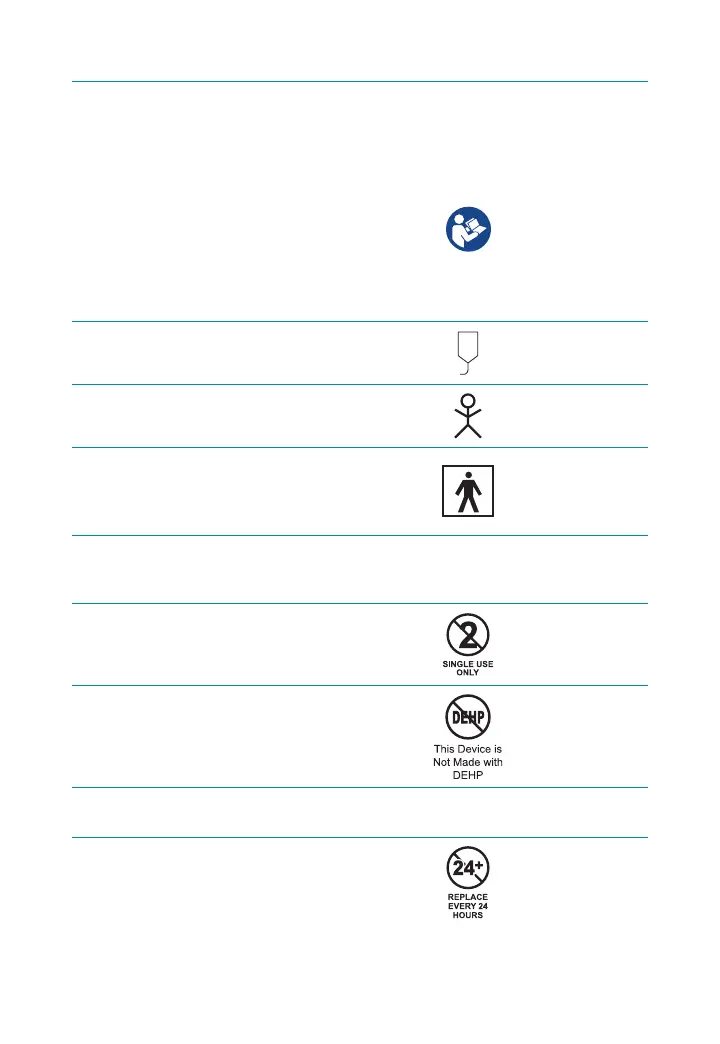

1. PUMP COMPONENTS
Symbols
Brief instructions for operation of pump as well as
a brief explanation of each alarm message which
pump may communicate are printed on the label
attached to pump. These are not intended to be
used in place of the Operator’s Manual. They are
simply a quick reference guide. Please read the
Operator’s Manual before operating the Innity.
Consult
Accompanying
Documents
Figure 1-11 Consult
Accompanying Documents
The bag symbol is printed on pump door over
port where upstream tubing enters pump.
Figure 1-12 Feeding
Bag Connection
The patient symbol is printed on pump door over
port where downstream tubing exits pump.
Figure 1-13 Patient
Connection
EN 60601-1 Type BF degree of protection against
electrical shock. No electrical connection to
patient. Drop from any angle from height of
3 feet shall not damage pump operation.
Figure 1-14 TYPE BF
Shock Protection
EN 60529 degree of protection against
water entering the enclosure. Water jets
from any direction shall have no eect.
IP25
Figure 1-15 EN 60529
This symbol is printed on pump delivery
sets. It indicates only one patient
should use each disposable set.
Figure 1-16 Single
Patient Use
This symbol is printed on pump delivery sets.
It indicates pump delivery sets are made with
materials that do not contain the plasticizer DEHP
Figure 1-17 DEHP-free
The Innity pump and delivery sets are made with
materials that do not contain natural rubber latex.
This symbol is printed on pump delivery
sets. It indicates pump delivery sets
should be replaced every 24 hours.
Figure 1-18 Replace
Every 24 Hours

Moog Infinity Specifications

General

Model	Infinity
Type	Infusion Pump
Occlusion Pressure Settings	Low, Medium, High
Alarms	Occlusion, Low battery
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Manufacturer	Moog
Infusion Modes	Continuous, Intermittent
Display	LCD
Compatibility	Standard infusion sets
