© Copyright 2020 Moog, Inc.
19
2. DIRECTIONS FOR USE
User Preference Settings
There are four user preference settings. These
settings can be changed to t the user’s needs.
1. Alarm Volume:
The alarm has two volumes, high or low.
Pump default is low (Figure 2-29).
2. Settings Lock:
This allows user to set a rate, dose, and feed interval
and then lock those settings so they cannot be
changed unintentionally. This will also lock the
volume counters from being unintentionally
cleared. Pump default is unlocked (Figure 2-30).
3. Dose Done:
There are two settings for the DOSE
DONE alarm: MUTE WHEN DONE or BEEP
WHEN DONE. Pump default is MUTE WHEN DONE (Figure 2-31).
4. Backlight:
To conserve battery life, the backlight
will turn o automatically 10 seconds
after the last key has been pressed.
However, while pump is connected
to an A/C current the backlight
settings can be adjusted. The light
can be set to ON or OFF. With the ON
setting the backlight will remain on
the entire time pump is plugged in
to a live power outlet. With the OFF
setting, the backlight will turn on when a key is
pressed and turn o 10 seconds after the last key
has been pressed. Pump default is ON (Figure 2-32).
NOTE: Regardless of setting, the backlight will always
turn o 10 seconds after pump is turned o.

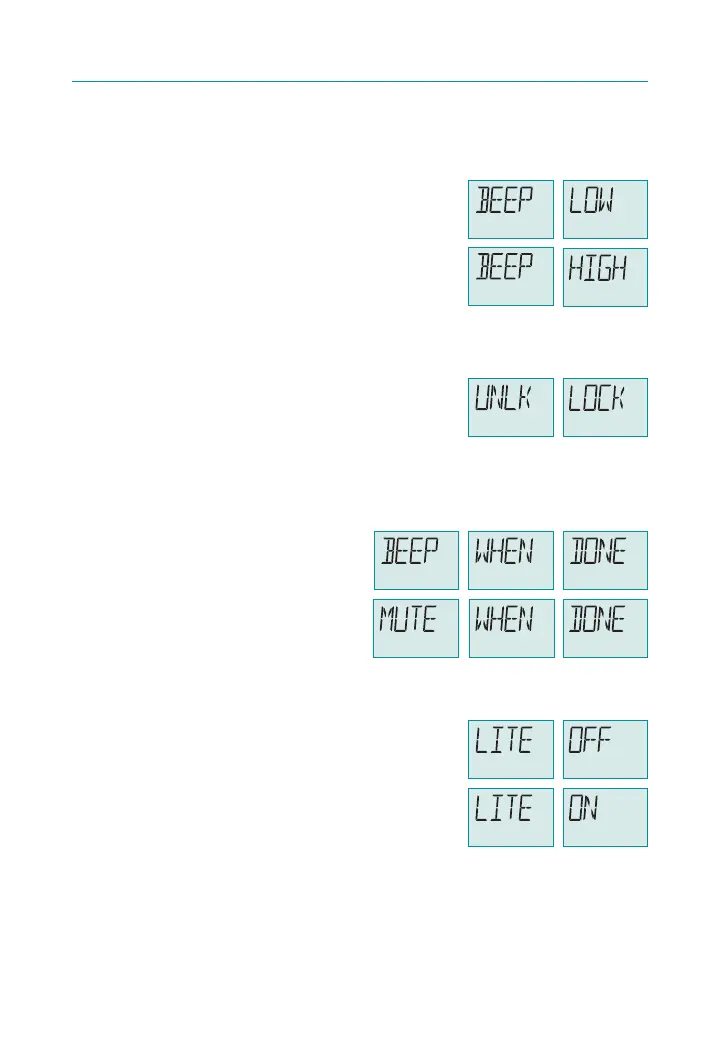

Figure 2-29 Alarm Volume Settings
BEEP LOW and BEEP HIGH
Figure 2-30 Settings Lock
UNLK and LOCK
Figure 2-32 Backlight Settings
LITE OFF and LITE ON
Figure 2-31 Dose Done Settings BEEP
WHEN DONE and MUTE WHEN DONE
