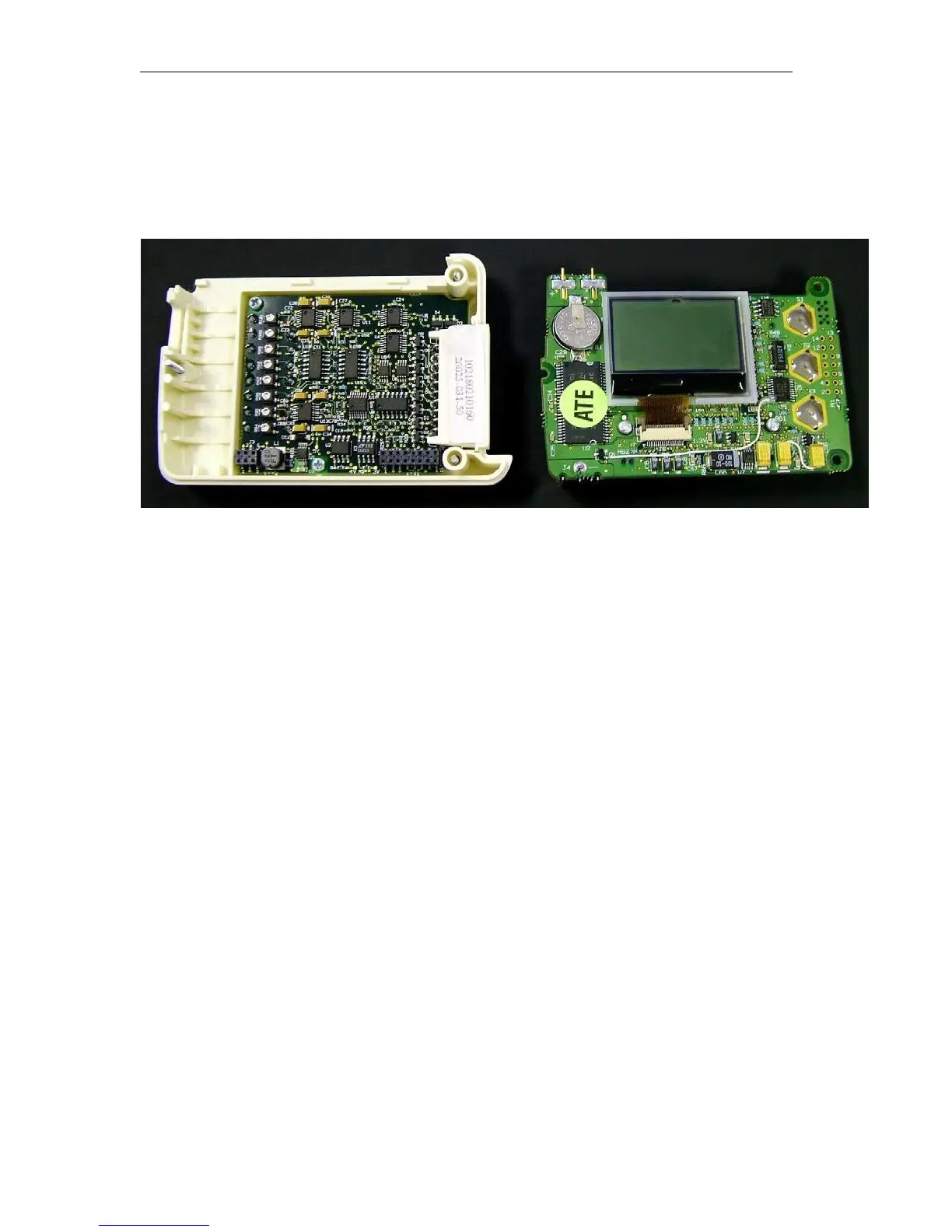

Digital Board Removal & Replacement
1.
Open unit as described above.
2.
With the unit open, lift up on the Digital board (item # 6, 23 or 24) to remove it from its mating connectors.
3.
Install digital board in reverse order.
4.
Reassemble unit is reverse order using 2.5 in/lbs torque driver with a 1# phillips bit
