Troubleshooting Waveforms: Audio SSI 6-7
6.3 Audio SSI
6.3.1 Red Tx
Trace 1: Trace recorded at R6618.

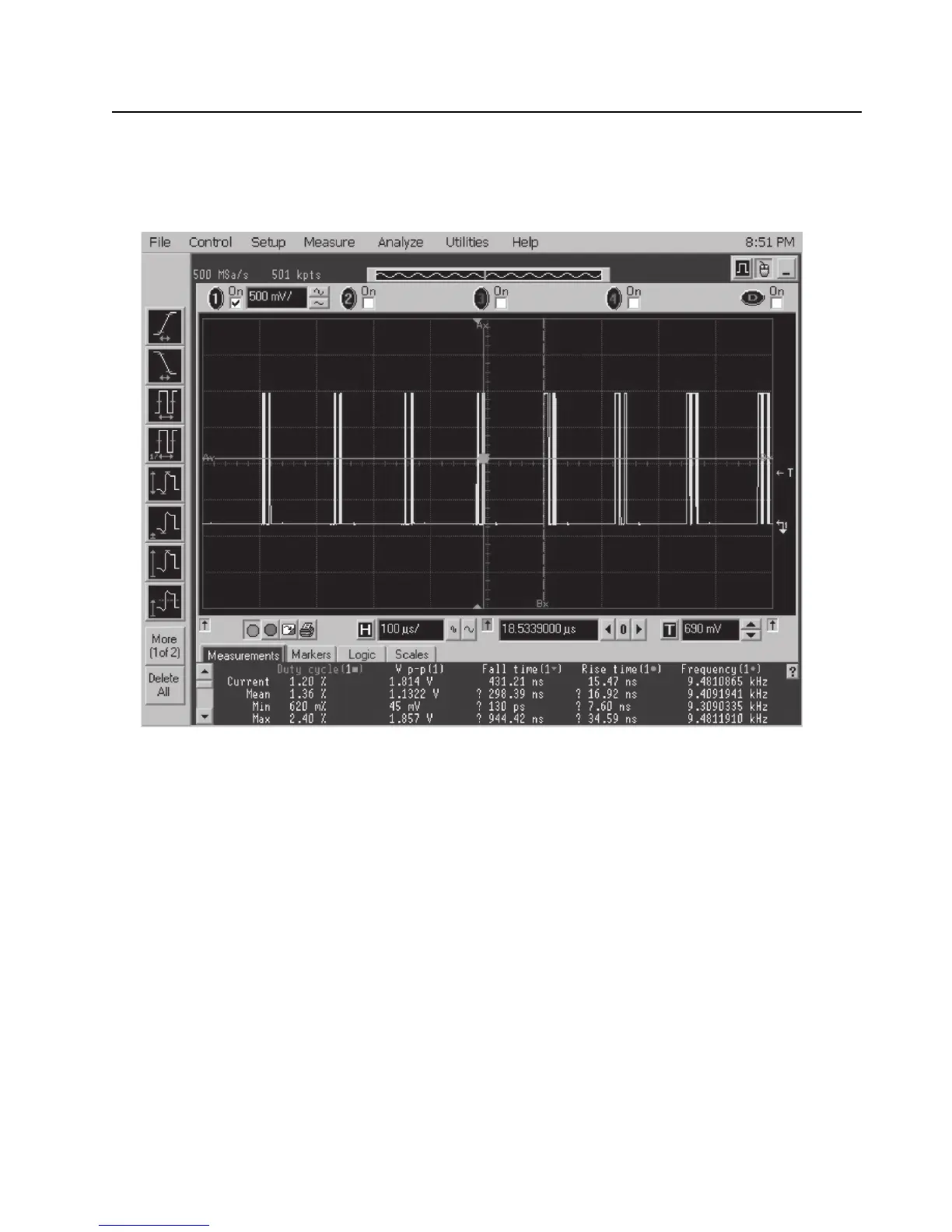

Figure 6-6. Audio SSI – Red Tx Waveform
