6-8 Troubleshooting Waveforms: Audio SSI
6.3.2 Red Rx
Trace 1: Trace recorded at R1332.

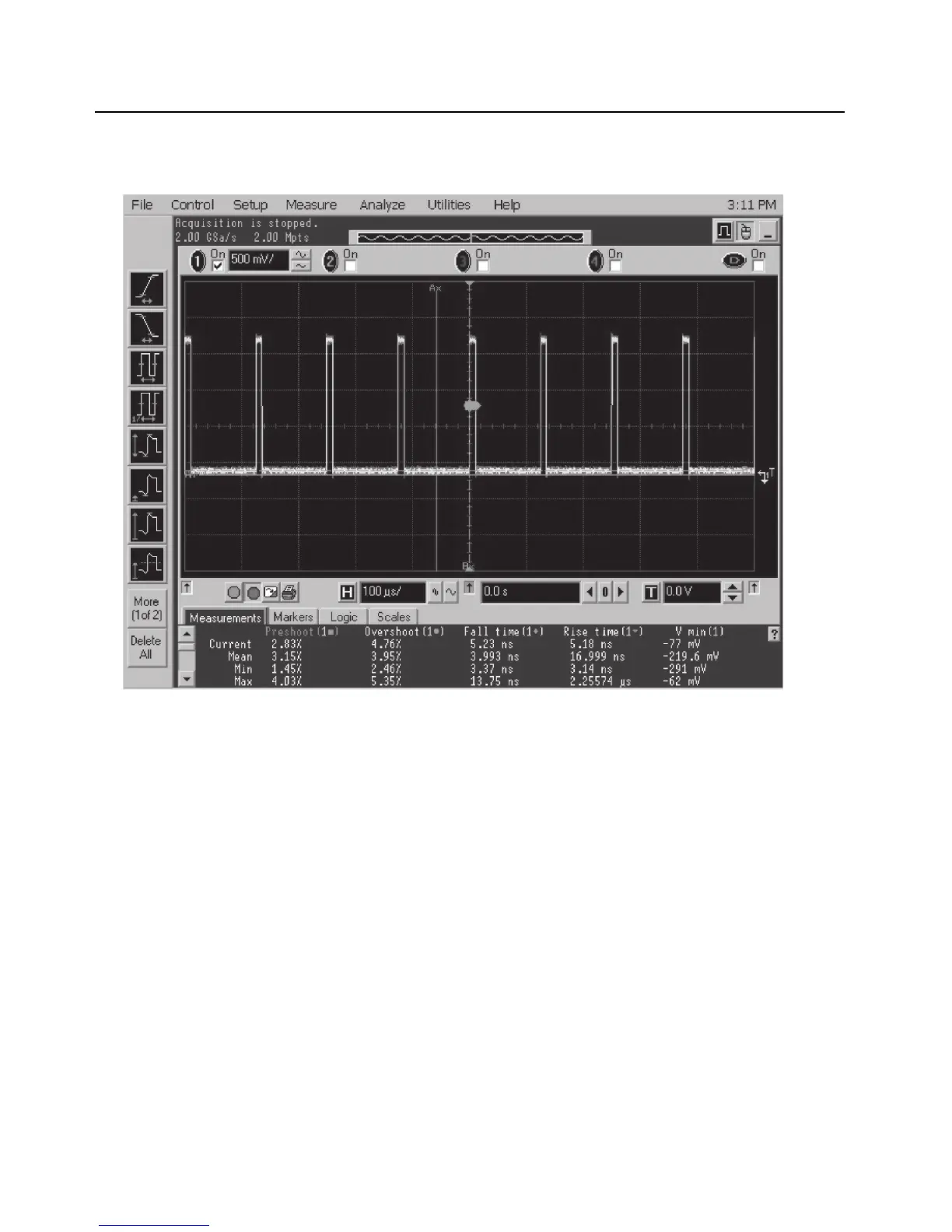

Figure 6-7. Audio SSI – Red Rx Waveform
