Troubleshooting Waveforms: Bluetooth Troubleshooting Waveforms 6-51
6.15.11 Bluetooth Startup: Vmax of TP16 and Voltage Statistics

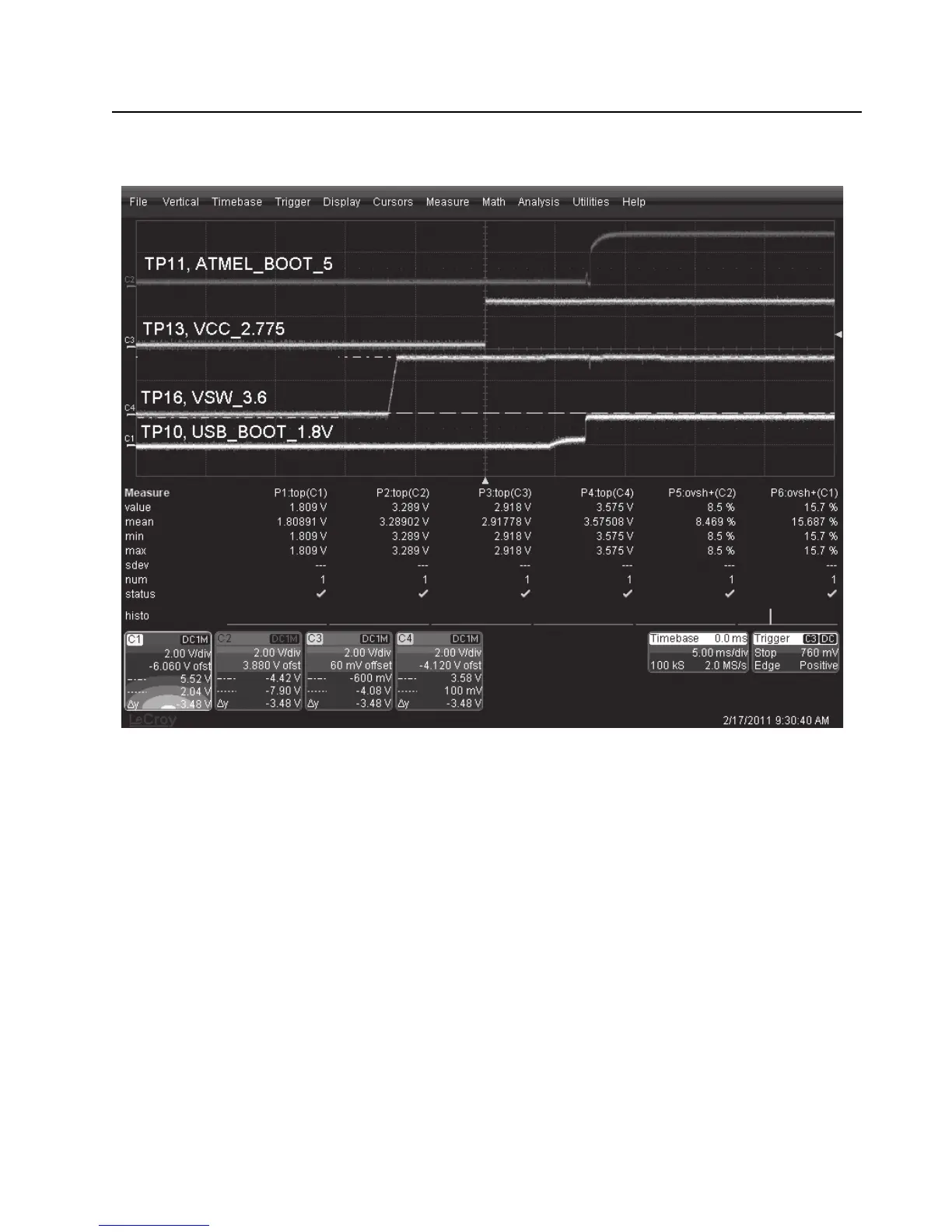

Figure 6-47. Startup – Vmax of TP16 and Voltage Statistics
